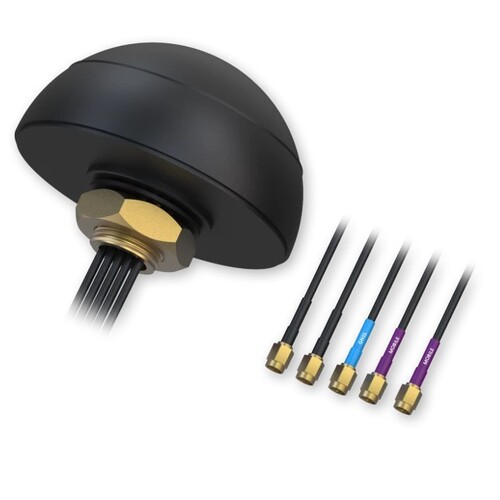

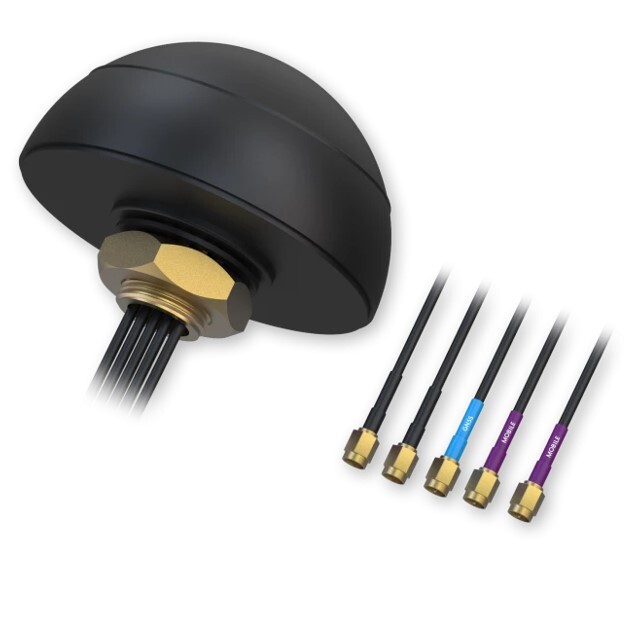

Teltonika Combo MIMO Mobile/GNSS/WiFi Flush Mount Mobile Antenna for Vehicle/Cabinet - For use with RUT955, RUTX09, RUTX11 - Formerly 003R-00253

Features

MECHANICAL/ENVIRONMENTAL

  • Mounting method: Screw
  • Radome ingress protection rating : IP65 (exclude cable outlet)
  • Radome material: ABS
  • Housing dimensions:110 x 55 mm,3000 mm
  • Cable:5x RG174
  • Operating temperature:-40 ~ +85 °C
  • Weight:535 ± 10 g
  • UV resistance:yes
  • RoHS Compliant:yes

GNSS ANTENNA

  • Frequency range:1575.42 - 1610 MHz
  • Polarization: RHCP
  • LNA gain:28 ± 2 dB
  • LNA noise figure:≤1.5 dB
  • V.S.W.R:<2.0
  • Impedance:50 Ω
  • Supply voltage:3 - 5 VDC
  •  Current consumption:<15 mA
  • Connector type and count:SMA Male

LTE MIMO ANTENNA

  • Frequency range:698 - 960, 1710 - 2690 MHz
  • Polarization:Linear
  • Gain:3.0 dBi
  • V.S.W.R:<3.0
  • Impedance:50 Ω
  • Connector type and count:2x SMA Male

WI-FI ANTENNA

  • Frequency range:2400 - 2483.5, 4900 - 5825 MHz
  • Polarization:Linear
  • Gain:2.0 dBi
  • V.S.W.R:<2.5
  • Impedance:50 Ω
  • Connector type and count:2x RP-SMA Male



(PR1KCO28)

24
SKU PR1KCO28
Model # PR1KCO28
Barcode # 4779051840977
Brand Teltonika
