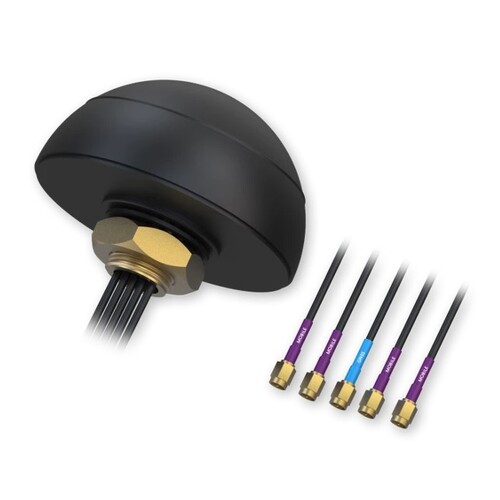

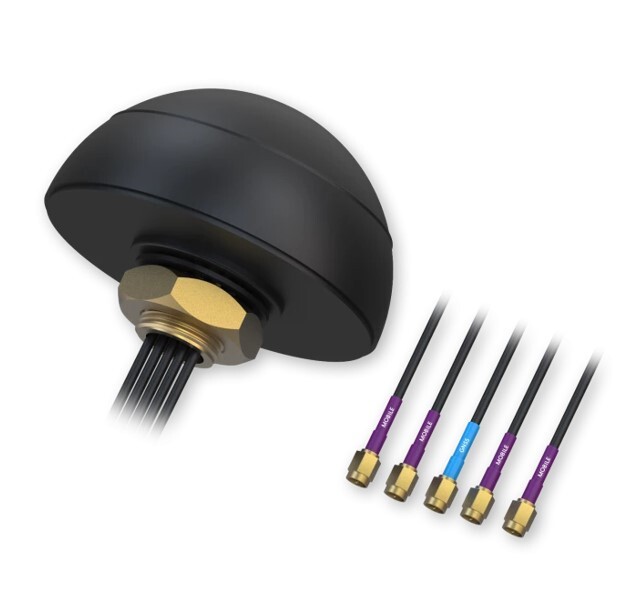

COMBO QUAD MOBILE/GNSS ROOF SMA ANTENNA

TECHNICAL DATA

  • Mounting method:Screw
  • Radome ingress protection rating:IP65 (exclude cable outlet)
  • Radome material:UV resistant plastic and cable
  • Housing dimensions:Ø 110.0 x 53.0 mm
  • Cable:5x RG174, 3000 mm
  • Operating temperature:-40 ~ +85 °C
  • Weight:525 ± 10 g
  • UV resistance:YES
  • RoHS Compliant::YES

LTE MIMO ANTENNA

  • Frequency range:698 - 960, 1710 - 2690 MHz
  • Polarization:Linear
  • Gain:3.0 dBi
  • V.S.W.R:<3.0
  • Impedance:50 Ω
  • Connector type and count:4x SMA Male

GNSS ANTENNA

  • Frequency range:1575.42 ± 3 MHz
  • Polarization:RHCP
  • LNA gain:28 ± 2 dB
  • LNA noise figure:≤1.5 dB
  • V.S.W.R:<2.0
  • Impedance:50 Ω
  • Supply voltage: 3 - 5 VDC
  • Current consumption:<15 mA
  • Connector type and count: SMA Male

(PR1KCL28)

24
SKU PR1KCL28
Model # PR1KCL28
Barcode # PR1KCL28
Brand Teltonika
