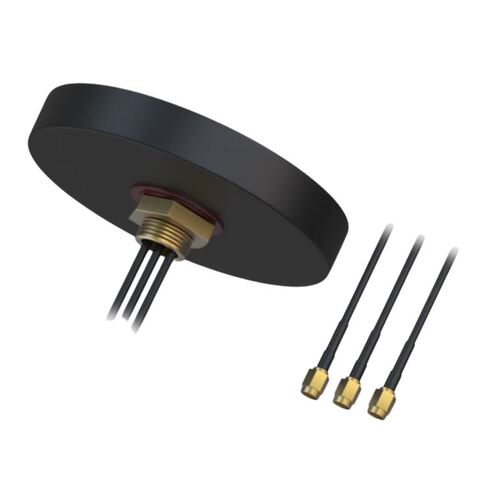

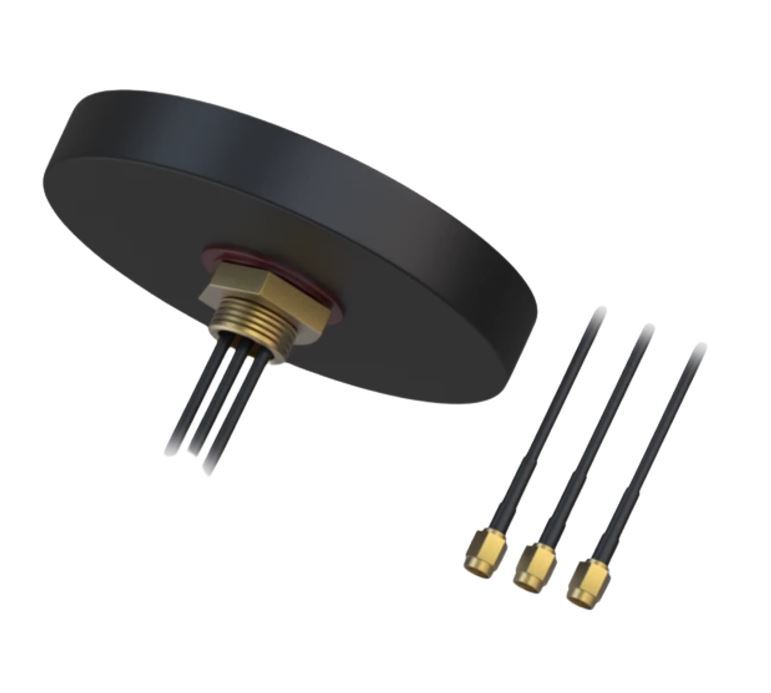

Teltonika Combo SISO Mobile/GNSS/WIFI Flush Mount Mobile Antenna for Vehicle/Cabinet - Compatible with TRB245 and TRB 255

MECHANICAL/ENVIRONMENTAL

  • Mounting method:Screw
  • Radome ingress protection rating:IP67 (exclude cable outlet)
  • Radome material Housing:ABS
  • dimensions:80.5 x 15.2 mm
  • Cable:3x RG174, 3000 mm
  • Operating temperature:-40 ~ +85 °C
  • Weight:215 ± 10 g
  • UV resistance:yes
  • RoHS Compliant:yes

GNSS ANTENNA

  • Frequency range:1575 - 1610 MHz
  • Polarization:RHCP
  • LNA gain:28 dBi
  • LNA noise figure:1.5 dB
  • V.S.W.R:≤1.5
  • Impedance: 50 Ω
  • Supply voltage:2.7 - 5.0 ± 0.5 VDC
  • Current consumption:<15 mA
  • Connector type and count:SMA Male

LTE MIMO ANTENNA

  • Frequency range:617 - 960, 1710 - 2690 MHz
  • Polarization: Linear
  • Radiation pattern:Omni - Directional
  • Gain:3.5 dBi
  • V.S.W.R:≤1.5
  • Impedance:50 Ω
  • Connector type and count: SMA Male

WI-FI ANTENNA

  • Frequency range:2350 - 2500 MHz
  • Polarization:Linear
  • Radiation pattern:Omni - Directional
  • Gain:2.5 dBi
  • V.S.W.R:≤1.5
  • Impedance:50 Ω
  • Connector type and count: RP-SMA Male

(PR1KCS28)

24
SKU PR1KCS28
Model # PR1KCS28
Barcode # 4779051840328
Brand Teltonika
