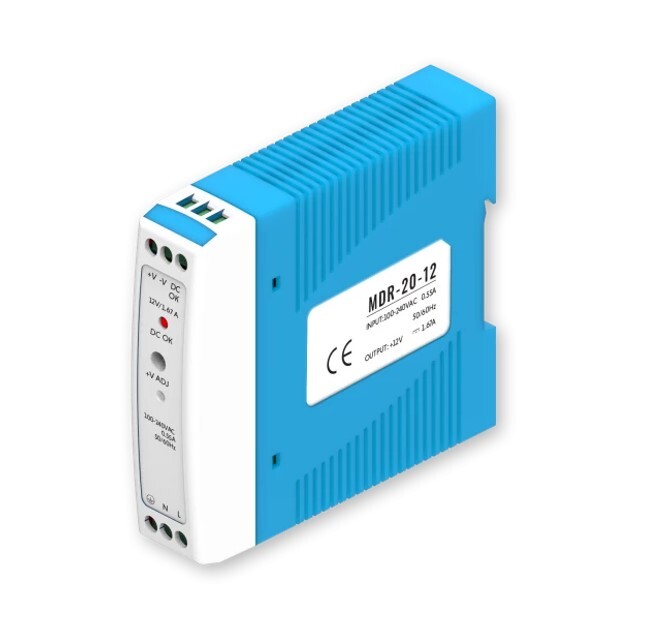

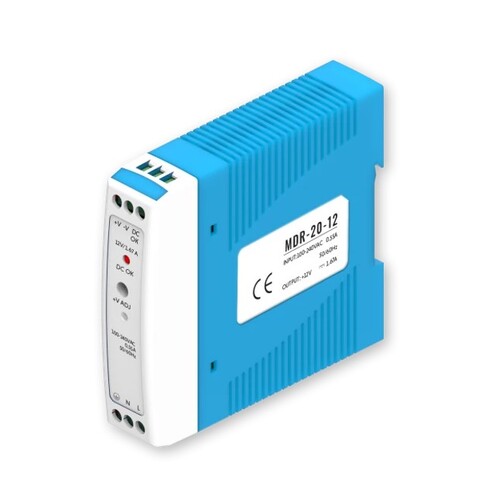

Teltonika DIN RAIL POWER SUPPLY, 20W

Features

• Single output power: 20 W
• Input voltage range: 85 - 264 VAC 47 - 63 Hz
• DC output voltage: 12 V
• DC output current: 0 - 1.67 A
• Output ripple and noise: 120 mVp-p
• Line regulation: ±1 %
• Load regulation: ±1 %
• Efficiency: 80 %
• Adjustable range for DC voltage: ±1 %
• Inrush current: Cold start current 20 A / 115 VAC; 40 A / 230 VAC
• Overload protection: 105 % - 160 % cut off the output, automatic recovery
• Over voltage protection: 120 % - 140 % shut down O/P voltage, off / on cycle required for recovery
• Setup, rise, hold up time: 500 ms, 30 ms / 230 VAC at full load; 1000 ms, 30 ms / 115 VAC at full load
• Withstand voltage: I/P-O/P: 1.5 kV; I/P-FG: 1.5 kV; O/P-FG: 0.5 kV 1 minute
• Isolation resistance: I/P-O/P I/P-FG O/P-FG: 500 VDC / 1000 MΩ
• Working temperature: -10 °C - +50 °C
• Mounting options: 35 mm DIN Rail
• Dimensions: 22.5 x 90 x 100 mm
• Weight: 190 g
