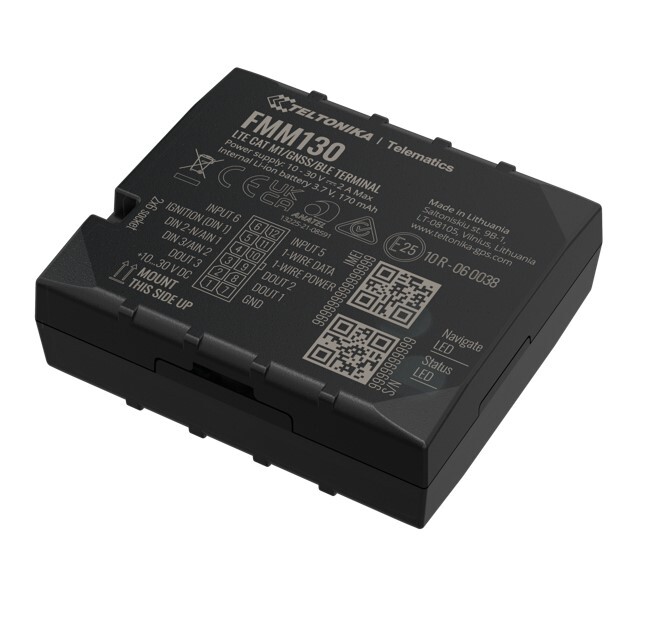

Teltonika FMM130 Advanced CAT M1/GSM/GNSS/BLE terminal with internal antennas and backup battery

Features

  • Blocking engine remotely among the numerous available fleet control measures
  • CAN adapter supportReading fuel, odometer, RPM, engine temperature and more data from light & electric vehicles, trucks, buses, and special machinery
  • Accurate fuel usage controlImpulse input for reading fuel flow meter data and precisely controlling fuel usage
  • xtended product usage scenariosBluetooth® LE-based wireless connection of external devices, including Low Energy beacons and sensors, to monitor temperature, humidity, magnet detection, and movement

PRODUCT SPECIFICATIONS

Module

  • Name: Quectel BG95-M3, Quectel BG96, Teltonika TM2500
  • Technology: LTE CAT M1/NB-IoT/GSM/GPRS/GNSS/BLUETOOTH® LE
  • Data support: SMS (text/data)
  • Power: Bluetooth® Technology

GNSS

  • GNSS: GPS, GLONASS, GALILEO, BEIDOU, QZSS, AGPS
  • Receiver: 33 tracking channels, 99 acquisition channels
  • Tracking sensitivity: -165 dBM
  • Position Accuracy: < 2.5 m CEP
  • Velocity Accuracy: < 0.1 m/s (within +/- 15% error)
  • Hot start:< 1 s
  • Warm start: < 25 s
  • Cold start: < 35 s

Cellular

  • Technology: LTE CAT M1/NB-IoT/GSM
  • 2G bands: BG95-M3: B2/B3/B5/B8

                            BG96: B2/B3/B5/B8

4G LTE Cat M1 bands:

BG95-M3:

  • LTE-FDD (CAT M1): B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B27/B28/B66/B85
  • LTE-FDD (CAT NB2): B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B28/B66/B71/B85
  • GSM: 850/900/1800/1900

BG96:

  • LTE FDD: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B26/B28
  • LTE TDD: B39 (for CAT M1 only)

Data transfer:

BG95-M3:

  • LTE: Max. 588Kbps (DL)/Max.1119Kbps (UL)
  • GPRS: Max. 107Kbps (DL)/Max. 85.6Kbps (UL)

BG96:

  • LTE: Max. 375Kbps (DL)/Max.375Kbps (UL)
  • GPRS: Max. 107Kbps (DL)/Max. 85.6Kbps (UL)

Transmit power

  • Class 4 for GSM850/900: 23±2dBm
  • Class 1 for GSM1800/1900: 20±2dBm
  • Class 3 for LTE-TDD: 23±2.7dBm
  • Class 3 for LTE-FDD: 23±2.7dBm

(FMM130LNXW01)

24
SKU FMM130LNXW01
Model # FMM130LNXW01
Barcode # NHT-FMM130
Brand Teltonika
