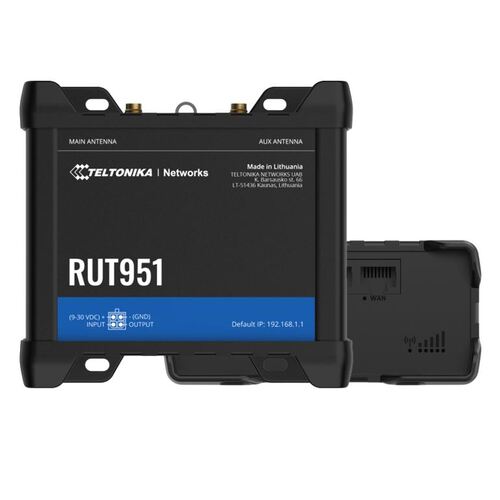

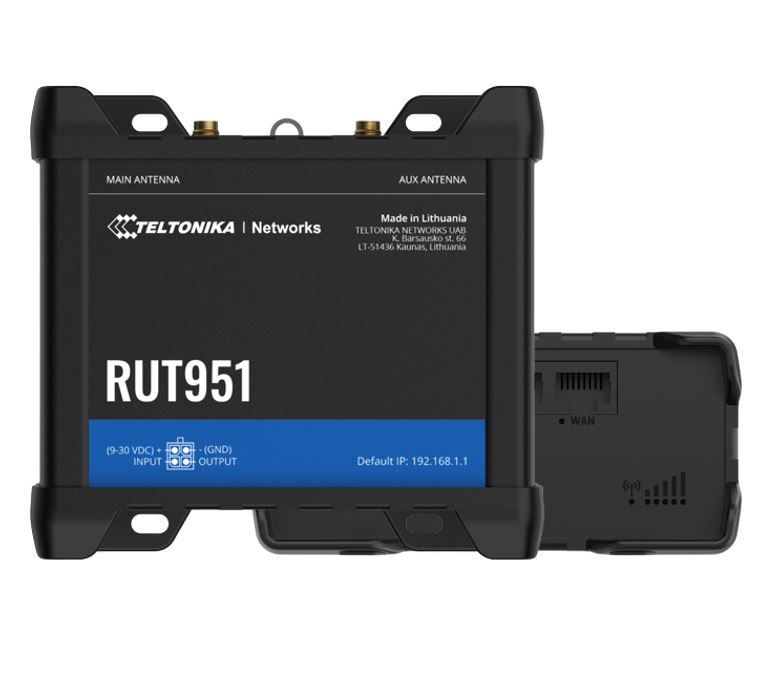

Teltonika RUT951 Industrial Cellular Router, 4G LTE (Cat 4), Dual SIM,WI-FI, Automatic WAN Failover, PSU included

RUT951 features dual-SIM cellular connectivity combined with Wi-Fi and four Ethernet interfaces to meet the needs of the most varied IoT scenarios. Powered by RutOS, this router offers advanced customization options, automation features, and top-level security for your solution.

System Characteristics

• CPU: Mediatek, 580 MHz, MIPS 24KEc
• RAM: 128 MB, DDR2
• FLASH storage: 16 MB, SPI Flash
• Input/Output
• Input: 1 x Digital Input, 0 - 6 V detected as logic low, 8 - 30 V detected as logic high
• Output: 1 x Digital Output, Open collector output, max output 30 V, 300 mA
• Events: Email, RMS, SMS
• I/O juggler: Allows to set certain I/O conditions to initiate eve

Physical Interfaces

• Ethernet: 4 x RJ45 ports, 10/100 Mbps
• I/O’s: 1 x Digital Input, 1 x Digital Output on 4-pin power connector
• Status LEDs: 1 x Bi-color connection status, 5 x Mobile connection strength, 4 x ETH status, 1 x Power
• SIM: 2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders, eSIM (Optional - different hardware required; contact your sales manager)
• Antennas: 2 x SMA for LTE, 2 x RP-SMA for Wi-Fi antenna connectors
• Reset: Reboot/User default reset/Factory reset button

Physical Specification

• Casing material: Aluminium housing, plastic panels
• Dimensions (W x H x D): 110 x 50 x 100 mm
• Weight: 287 g
• Mounting options: DIN rail, wall mount, flat surface (all require additional kit)
