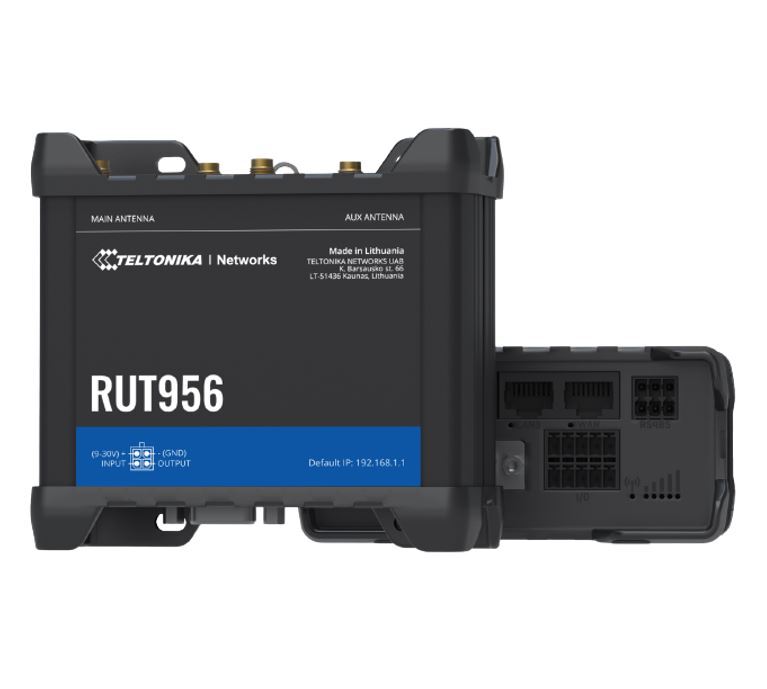

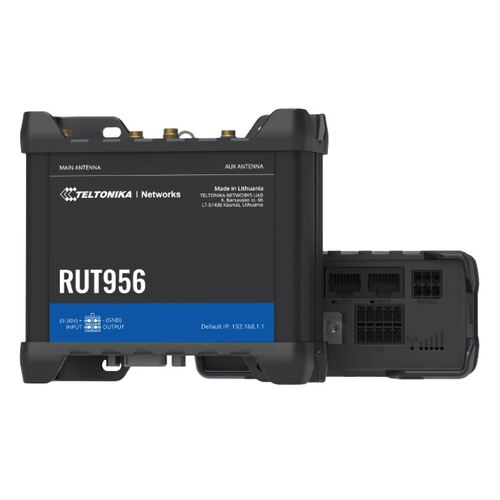

Teltonika RUT956 Industrial Cellular Router, Dual-SIM Cellular 4G LTE, WAN Failover with 4x Ethernet Ports, GPS, 2-Year Warranty, PSU included

RUT956 is an industrial router that combines cellular, Wi-Fi, and wired connectivity options with automatic WAN failover and GNSS capabilities. Serial communication interfaces enable integrating more varied devices into the solution ecosystem, while I/O and advanced RutOS software facilitate equipment control, automation, and event notifications

System Characteristics

• CPU: Mediatek, 580 MHz, MIPS 24KEc
• RAM: 128 MB, DDR2
• FLASH storage: 16 MB, SPI Flash

Input/Output

• Input: 1 x digital dry input (0 - 3 V), 1 x digital galvanically isolated input (0 - 30 V), 1 x analog input (0 - 24 V; with 4-20 mA capability), 1 x Digital non-isolated input (on 4-pin power connector, 0 - 5 V detected as logic low, 8 - 30 V detected as logic high)
• Output: 1 x digital open collector output (30 V, 250 mA), 1 x SPST relay output (40 V, 4 A), 1 x Digital open collector output (30 V, 300 mA, on 4-pin power connector)
• Events: Email, RMS, SMS
• I/O juggler: Allows to set certain I/O conditions to initiate event

Physical Interfaces

• Ethernet: 4 x RJ45 ports, 10/100 Mbps
• I/O’s: 2 x Inputs and 2 x Outputs on 10-pin industrial socket, 1 x Digital input and 1 x Digital output on 4-pin power connector (available from HW revision 1600)
• Status LEDs: 1 x Bi-color connection status, 5 x Mobile connection strength, 4 x ETH status, 1 x Power
• SIM: 2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders, eSIM
• Power: 1 x 4-pin power connector
• Input/output: 1 x 10-pin industrial socket for inputs/outputs
• Antennas: 2 x SMA for LTE, 2 x RP-SMA for Wi-Fi, 1 x SMA for GNSS
• USB: 1 x USB A port for external devices
• RS232: 1 x DB9 socket
• RS485: 1 x 6-pin industrial socket
• Reset:Reboot/User default reset/Factory reset button

Physical Specification

• Casing material: Aluminium housing, plastic panels
• Dimensions (W x H x D): 110 x 50 x 100 mm
• Weight: 287 g
• Mounting options: DIN rail, wall mount, flat surface (all require additional kit)

Operating Environment

• Operating temperature:  -40 °C to 75 °C
• Operating humidity: 10% to 90% non-condensing
• Ingress Protection Rating: IP30
