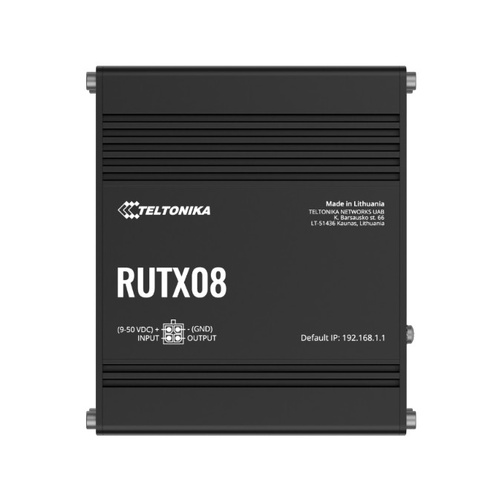

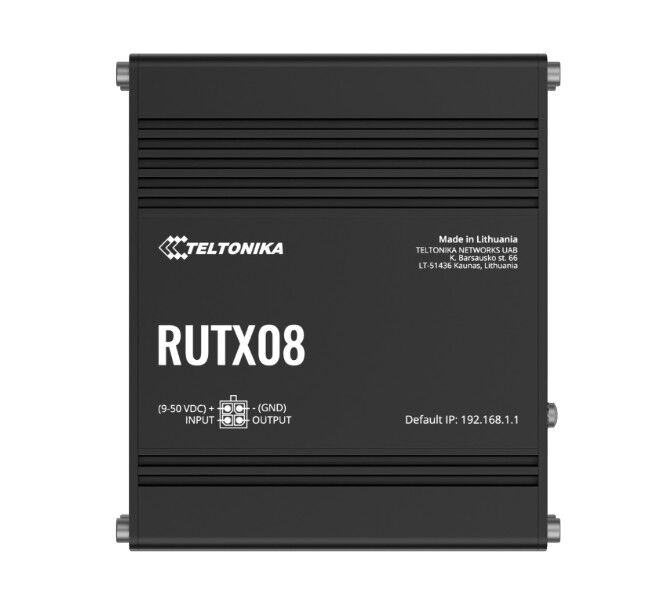

Teltonika RUTX08 Industrial Ethernet Router, Next Gen VPN Router for Professional Applications, Quad-Core CPU, 256 MB RAM, PSU include

This robust industrial router has four Gigabit Ethernet ports, a Quad-Core CPU, and 256 MB RAM. These powerful specifications combined with core RutOS software features, such as multiple VPN services, advanced Firewall, and RMS support, make this device a superb industrial performer.

Features

System Characteristics

• CPU: Quad-core ARM Cortex A7, 717 MHz
• RAM: 256 MB, DDR3
• FLASH storage: 256 MB, SPI Flas

USB

• Data rate: USB 2.0
• Applications: Samba share, USB-to-serial
• External devices: Possibility to connect external HDD, flash drive, additional modem, printer, USB-serial adapter
• Storage formats: FAT, FAT32, exFAT, NTFS (read-only), ext2, ext3, ext4

Input/Output

• Input: 1 x Digital Input, 0 - 6 V detected as logic low, 8 - 30 V detected as logic high
• Output: 1 x Digital Output, Open collector output, max output 30 V, 300 mA

Power

• Connector: 4-pin industrial DC power socket
• Input voltage range: 9 - 50 VDC, reverse polarity protection, voltage surge/transient protection
• PoE (passive): Possibility to power up through LAN1 port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 50 VDC
• Power consumption: 6 W Max

Physical Interfaces

• Ethernet: 4 x RJ45 ports, 10/100/1000 Mbps
• I/O’s: 1 x Digital Input, 1 x Digital Output on 4-pin power connector
• Status LEDs: 8 x LAN status LEDs, 1 x Power LED

Physical Specification

• Casing material: Aluminium housing
• Dimensions (W x H x D): 115 x 32.2 x 95.2 mm
• Weight: 345 g
• Mounting options: DIN rail, wall mount, flat surface (all require additional kit

Operating Environment

• Operating temperature: -40 °C to 75 °C
• Operating humidity: 10% to 90% non-condensing
• Ingress Protection Rating: IP30
