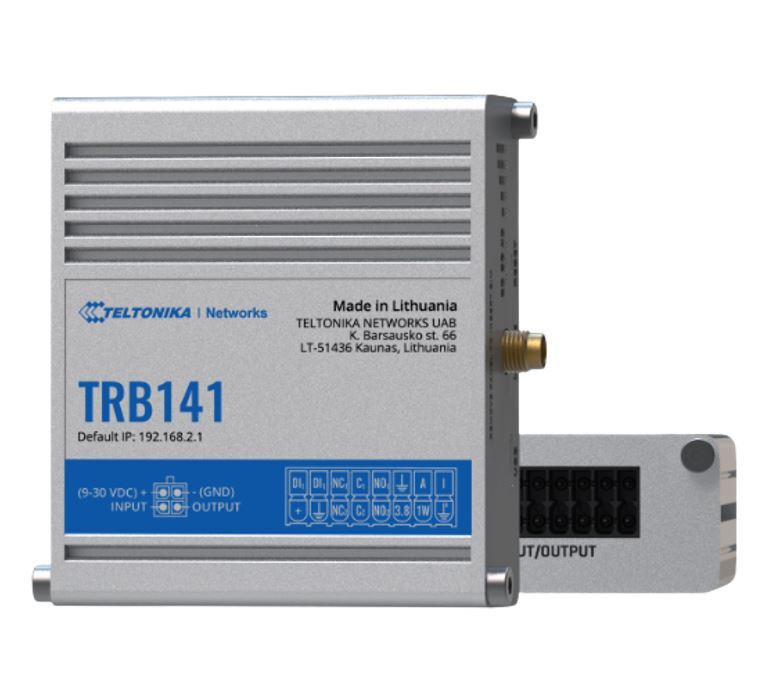

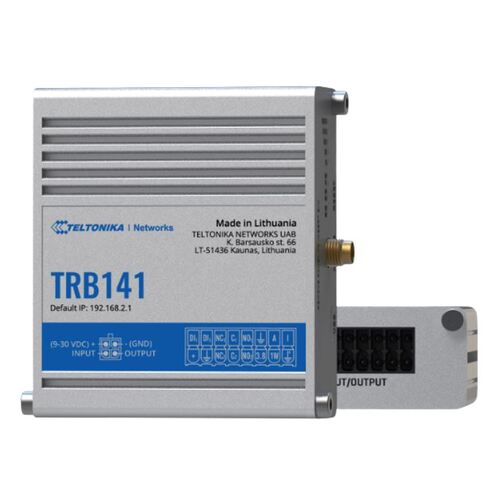

Teltonika TRB141 Industrial Rugged GPIO LTE Gateway, 4G/LTE (Cat 1), I/O Connector Block, Micro-USB, Compatible with Industrial DNP3, PSU included

TRB141 is a small industrial LTE Cat 1 gateway equipped with diverse inputs/outputs and a Micro USB port. This gateway comes with secure, highly customizable RutOS and works perfectly for remote management of devices and applications using I/O.

System Characteristics

  • CPU: ARM Cortex-A7 1.2 GHz
  • RAM: 128 MB, DDR2
  • FLASH storage: 512 MB, SPI Flash

Physical Interfaces

  • I/O’s: 3 x Digital Inputs, 1 x Analog input, 2 x Relays on 16 pin connector, 2 x I/O pins on 4 pin power connector
  • Status LEDs: 3 x connection type status LEDs, 5 x connection strength LEDs, 1 x Power LED
  • SIM: 1 x SIM slot (Mini SIM – 2FF), 1.8 V/3 V
  • Power: 1 x 4-pin power connector
  • 1-Wire: 1 x 1-Wire interface on 16 pin connector
  • Antennas: 1 x SMA for LTE
  • USB: 1 x Virtual network interface via micro USB
  • Reset: Reboot/User default reset/Factory reset button

Physical Specification

  • Casing material: Aluminium housing
  • Dimensions (W x H x D): 74.5 x 25 x 64.4 mm
  • Weight: 136 g
  • Mounting options: DIN rail, wall mount, flat surface (all require additional kit)

(TRB141106000)

24
SKU TRB141106000
Model # TRB141106000
Barcode # 4779027312620
Brand Teltonika
