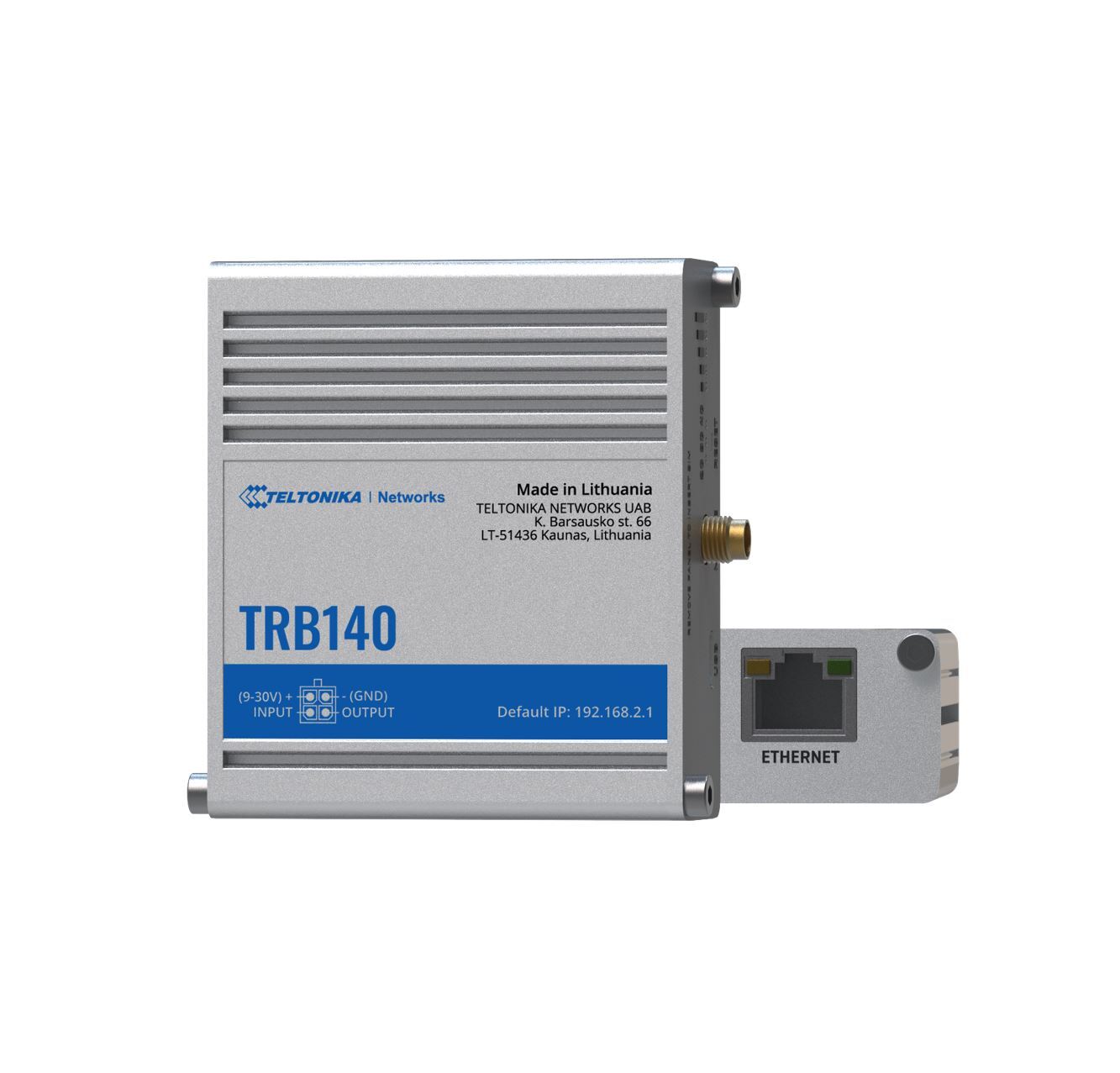

Teltonika TRB140 Industrial Rugged LTE Gateway, 4G/LTE (Cat 4), Compatible with Industrial DNP3 & Modbus Communication Protocols, PSU included

TRB140 is an ultra-small, lightweight, and energy-efficient IoT device with mission-critical LTE Cat 4 and Gigabit Ethernet connectivity options. Linux environment offers a high degree of customization. This gateway is perfect for projects and applications where a single device must be upgraded with reliable and secure internet connectivity.

System Characteristics

• CPU: ARM Cortex-A7 1.2 GHz
• RAM: 128 MB, DDR2
• FLASH storage: 512 MB, SPI Flash

Input/Output

• Input: 1 x Digital Input, 0 - 6 V detected as logic low, 8 - 30 V detected as logic high
• Output: 1 x Digital Output, Open collector output, max output 30 V, 300 mA
• Events: Email, RMS, SMS
• I/O juggler: Allows to set certain I/O conditions to initiate even

Physical Interfaces

• Ethernet: 1 x RJ45 port, 10/100/1000 Mbps
• I/O’s: 1 x Digital Input, 1 x Digital Output on 4-pin power connector
• Status LEDs: 3 x connection type status LEDs, 5 x connection strength LEDs, 2 x LAN status LEDs, 1x Power LED
• SIM: 1 x SIM slot (Mini SIM – 2FF), 1.8 V/3 V
• Power: 1 x 4-pin power connector
• Antennas: 1 x SMA for LTE
• USB: 1 x Virtual network interface via micro USB
• Reset: Reboot/User default reset/Factory reset button

Physical Specification

• Casing material: Aluminium housing
• Dimensions (W x H x D): 74.5 x 25 x 64.4 mm
• Weight: 136 g
• Mounting options: DIN rail, wall mount, flat surface (all require additional kit)
