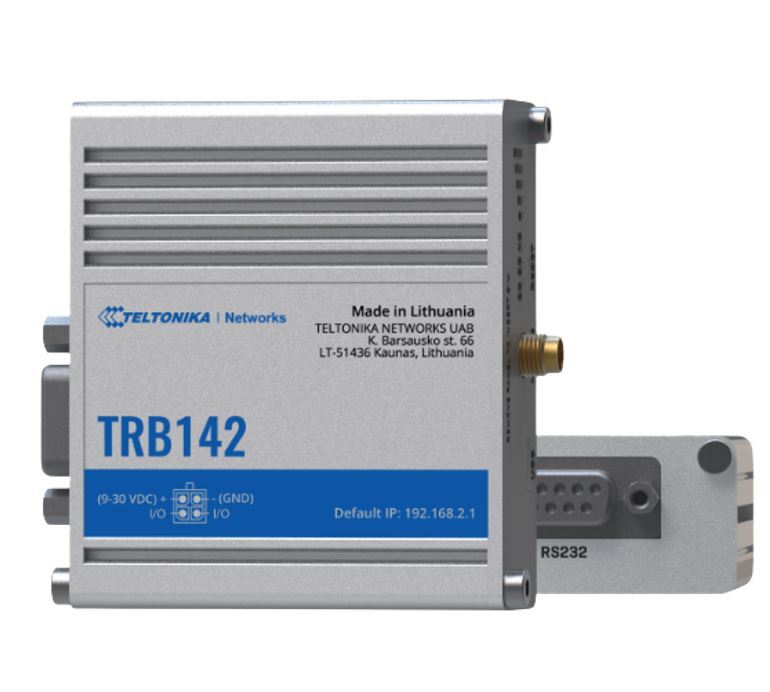

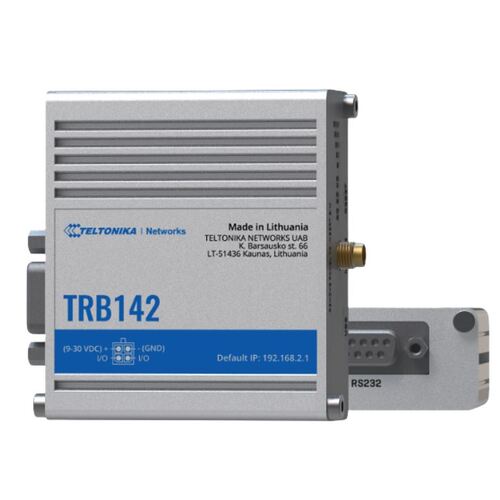

Teltonika TRB142 Industrial Rugged LTE RS232 Gateway, 4G/LTE (Cat 1), Equipped with RS232, Compatible with Industrial DNP3, PSU included

TRB142 is an ultra-small, lightweight, and energy-efficient IoT gateway equipped with mission-critical LTE connectivity. TRB142 comes with a widely used RS232 interface for remote management of industrial devices.

System Characteristics

  • CPU: ARM Cortex-A7 1.2 GHz
  • RAM: 128 MB, DDR2
  • FLASH storage: 512 MB, SPI Flash

Input/Output

  • Configurable I/O: 2 x Configurable Inputs/Outputs. Digital input 0 - 5 V detected as logic low, 8 - 30 V detected as logic high. Open collector
  • Configurable I/O output, max output 30 V, 300 mA. Configurable Inputs/Outputs are not available in TRB142*2****
  • Output control: HTTP POST/GET, Schedule
  • Events: Email, RMS, SMS
  • I/O juggler: Allows to set certain I/O conditions to initiate event

Physical Interfaces

  • I/O’s: 2 x Configurable I/O pins on 4 pin power connector (I/O not available in TRB142*2****)
  • Status LEDs: 3 x connection type status LEDs, 5 x connection strength LEDs, 1 x Power LED
  • SIM: 1 x SIM slot (Mini SIM – 2FF), 1.8 V/3 V
  • Power: 1 x 4-pin power connector
  • Antennas: 1 x SMA for LTE
  • USB: 1 x Virtual network interface via micro USB
  • RS232:1 x DB9 socket
  • Reset: Reboot/User default reset/Factory reset button

Physical Specification

  • Casing material: Aluminium housing
  • Dimensions (W x H x D): 74.5 x 25 x 64.4 mm
  • Weight: 135 g
  • Mounting options: DIN rail, wall mount, flat surface (all require additional kit)

(TRB142108000)

24
SKU TRB142108000
Model # TRB142108000
Barcode # 4779027312385
Brand Teltonika
