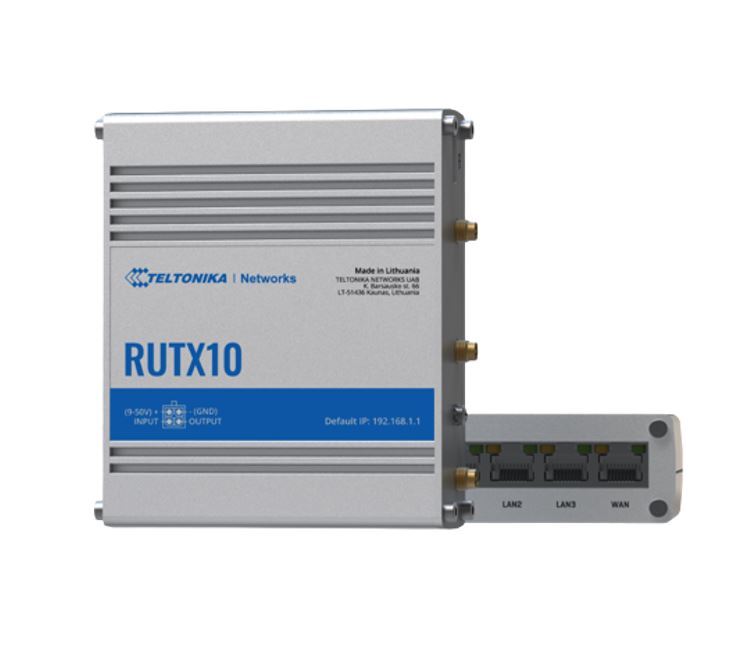

Teltonika RUTX10 Professional Ethernet Router, Industrial Ethernet Router/VPN/Firewall (NO-LTE) with Dual Band WiFi 5 802.11ac, PSU included

This professional router combines the best of wired and wireless routing functionalities with Gigabit Ethernet, Bluetooth LE, and AC Wi-Fi. Advanced remote management capabilities, along with numerous supported security and networking protocols, make RUTX10 an ideal choice for professional applications

System Characteristics

  • CPU: Quad-core ARM Cortex A7, 717 MHz
  • RAM: 256 MB, DDR3
  • FLASH storage: 256 MB, SPI Flash

Input/Output

  • Input: 1 x Digital Input, 0 - 6 V detected as logic low, 8 - 30 V detected as logic high
  • Output: 1 x Digital Output, Open collector output, max output 30 V, 300 mA
  • Events: Email, RMS
  • I/O juggler: Allows to set certain I/O conditions to initiate event

Physical Interfaces

  • Ethernet: 4 x RJ45 ports, 10/100/1000 Mbps
  • I/O’s: 1 x Digital Input, 1 x Digital Output on 4-pin power connector
  • Status LEDs: 8 x LAN status LEDs, 1 x Power LED, 2 x 2.4G and 5G Wi-Fi LEDs
  • Power: 1 x 4-pin power connector
  • Antennas: 2 x RP-SMA for Wi-Fi, 1 x RP-SMA for Bluetooth
  • USB: 1 x USB A port for external devices
  • Reset: Reboot/User default reset/Factory reset button
  • Other: 1 x Grounding screw

Physical Specification

  • Casing material: Aluminium housing
  • Dimensions (W x H x D): 115 x 32.2 x 95.2 mm
  • Weight: 355 g
  • Mounting options: DIN rail, wall mount, flat surface (all require additional kit)

(RUTX10000400)

24
SKU RUTX10000400
Model # RUTX10000400
Barcode # 4779027312453
Brand Teltonika
