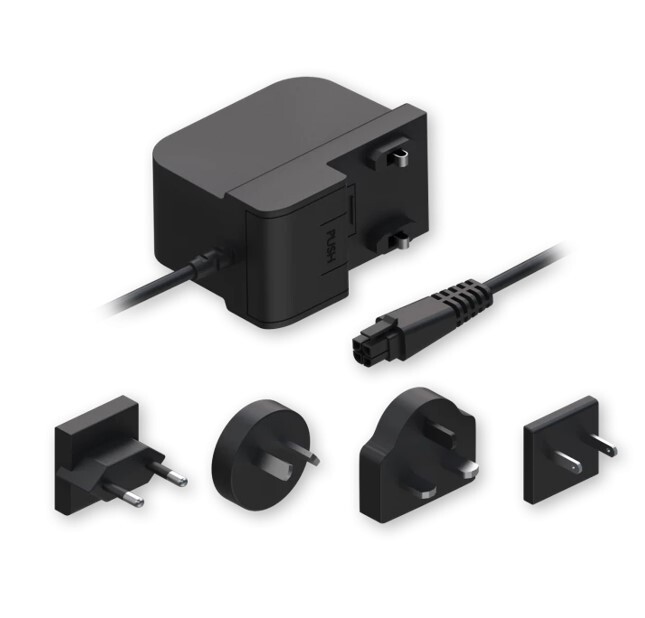

Teltonika UNIVERSAL POWER SUPPLY, 9W

Features

• Input voltage: 100 – 240 VAC
• Input frequency: 50 / 60 Hz
• Input current: 0.45 A
• Input connector: Exchangeable. EU (Type C), US (Type A), UK (Type G) and AU (Type I) included
• Output voltage: 9 VDC
• Output current: 1.0 A
• Output connector: 4-pin, 3 mm pitch

ADDITIONAL

• Input voltage range: 90 – 264 VAC
• Input frequency range: 47 – 63 Hz
• Maximum input inrush current: 60 A
• Output voltage maximum deviation: 8.55 – 9.45 VDC
• Leakage current: 0.25 mA
• Ripple and noise: 200 mV
• Output over current protection: 2 A
• Standby power: 0.1 W
• HIPOT (dielectric withstand test): Primary to Secondary: 4000 VDC
• MTBF: 30000 h
• PSU efficiency standard: DoE Level VI
