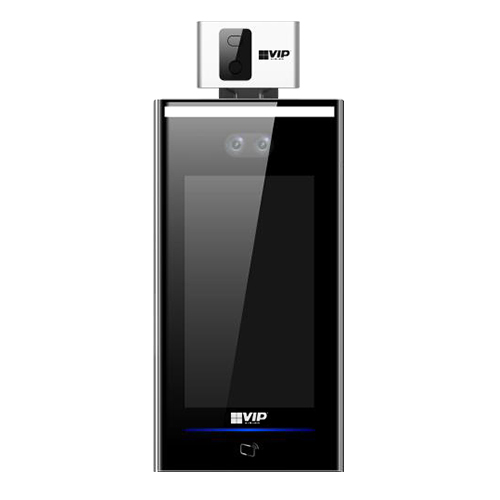

Create fast, contactless temperature screening checkpoints with the VSIPT-MACT. The system can both accurately detect faces and read body temperatures, setting off alerts & alarms when high temperatures are detected, and features an easy-to-use touchscreen interface for admin use.

The VSIPT-MACT controls access in multiple ways, including conventional methods such as keycard and passcode unlock, as well as unlock via face match and temperature measurement. It can even be configured to check for face masks.

Product Features:

• Standalone face recognition & BTM access module with WiFi
• Create fast, contactless temperature screening checkpoints
• Controls access from unauthorised persons & temp threshold
• BTM & access event alerts via email & device push notifications
• 7” LCD display and touchscreen with 600 x 1024 resolution
• Monitor face temperatures with ±0.5°C accuracy
• Face detection from a distance of 0.3m to 2.0m
• Voice responses to direct users and allow/deny entry
• 1/2.8” 2.0MP CMOS image sensor with WDR
• Admin unlock via face, card, password or a combination
• 2/2 alarm input/output, RS485, RS232, Wiegand
• Contactless scanning in a compact, slim body
• Wall mountable (desk & floor mounts sold separately)

Specifications

System

Main Processor : Embedded Processor

Network Protocol : IPv4, RTSP, RTP, TCP, UDP, P2P

OSDP Protocol : Yes

Interoperability : ONVIF & CGI

SDK and API : SDK Support

Basic

• Display : 7” Capacitive LCD Monitor
• Resolution : 600 (H) x 1024 (V)
• Camera : 1/2.8” 2.0MP CMOS WDR Dual Camera
• WDR : 120dB
• Light Compensation : Auto White Light / Auto IR Light
• Status Indicator : 1 x Indicator Light - Red: Error; Green: Normal; Blue: Working
• Voice Prompt : Yes
• Housing Material : Aluminium Alloy / Tempered Glass / Polycarbonate

Function

• Unlock Mode : Card / Remote / Password / Face Unlock / Any combination of these methods; Face unlock under temperature monitoring mode
• Card Reading Type : IC Card
• Period List : 128
• Holiday Period : 128
• First-Card Unlock : Yes
• Remote Verification : Yes
• Peripheral Card Reader : 1 x RS485 / 1 x Wiegand
• Multiple Authentication : Yes
• Real-Time Surveillance : Yes
• Remote Verification : Alarm Features
• Anti-Passback / Tamper Switch / Duress / Door Sensor Timeout / Intrusion / Illegal Card Exceeding Threshold

Temperature Monitoring

• IR Resolution : 120 x 90
• Temp. Monitoring Angle : 50°
• Temp. Monitoring Range : 30°C to 50°C
• Temp. Monitoring Time : 0.2s
• Temp. Monitoring Accuracy : ±0.3°C
• Temp. Monitoring Distance : 0.3m ~ 0.8m
• Temp. Monitoring Height : 1.4m ~ 1.85m (at 0.5m distance)

Capacity

• User Capacity : 100,000
• Face Image Capacity : 100,000
• Card Capacity : 100,000
• Password Capacity : 100,000
• Record Capacity : 300,000

Interface

• Auxiliary Inputs : 1 x RS485 / 1 x RS232 / 1 x Wiegand (Input or Output)
• USB : 2 x USB2.0 port
• Ethernet : 1 x 1000M Ethernet Port / 1 x 10M/100M Ethernet Port
• Alarm Input / Output : 2 channels input / 2 channels output
• Additional Input / Output : 1 x Exit Button / 1 x Door Status Detection / 1 x Lock Control

Environment

• Power Supply : 12VDC 2A
• Power Consumption : ≤24W
• Product Dimensions : 313mm x 129mm x 37mm
• Working Temperature : Temperature monitoring disabled: -10°C to +55°C, Temperature monitoring enabled: 15°C to +32°C
• Working Humidity : 0~90%RH (Non-condensing)
• Installation : Wall mount
