VIEW TECHNICAL READOUTS & LIVE PREVIEW 3.5”

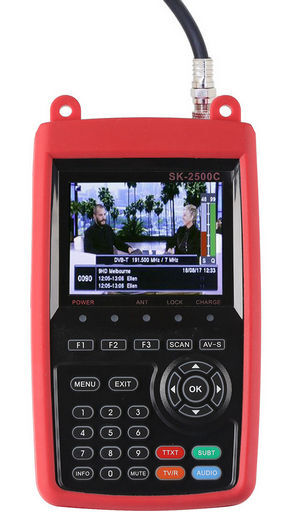

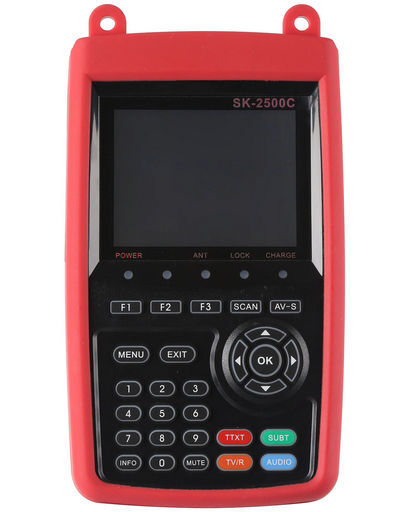

The SK-2500C is high definition terrestrial TV meter specially designed for the TV installer and electrician. Unlike many other mid level priced meters on the market, this unit can view Digital TV channels. MPEG 4 compatible. Display live TV of all SD and HD channels. The unit is easy to use and has all the important measurements including MER, etc. The unit can also be used for alignment of CCTV camera’s via the composite input. HDMI output for testing cable runs. It includes new features like DVB-C function and HDMI input. The tester includes a built in high power 3000mAH rechargeable battery.

• Freq Range: 177.500~816.500MHz
• DVB-T/T2 Compliant
• Signal Level: -20~ –70dbm
• Antenna Connection: F-Type
• DVB-C: Yes
• Antenna Power: Yes (12v,18v, 24v)
• Video Decoding: MPEG 2/MPEG 4
• TV System: PAL
• Resolution: 576i, 576p, 720p, 1080i, 1080p
• Aspect Ratio: 16:9, 4:3
• Demodulation: QPSK, 16QAM, 64QAM
• Guard Interval: 1/4, 1/8, 1/16, 1/32
• Audio Compression: MPEG I & II MPEG4 HE-AAC
• Mode: Stereo, Joint Stereo, Mono Standard:
• ISO/IEC 13818-3
• Sampling Freq: 32, 44.1, 48KHz
• Includes 3000mAh Lithium Ion Battery
• MPEG4 & MPEG2 Tuner
• DVB-T & T2 Compliant

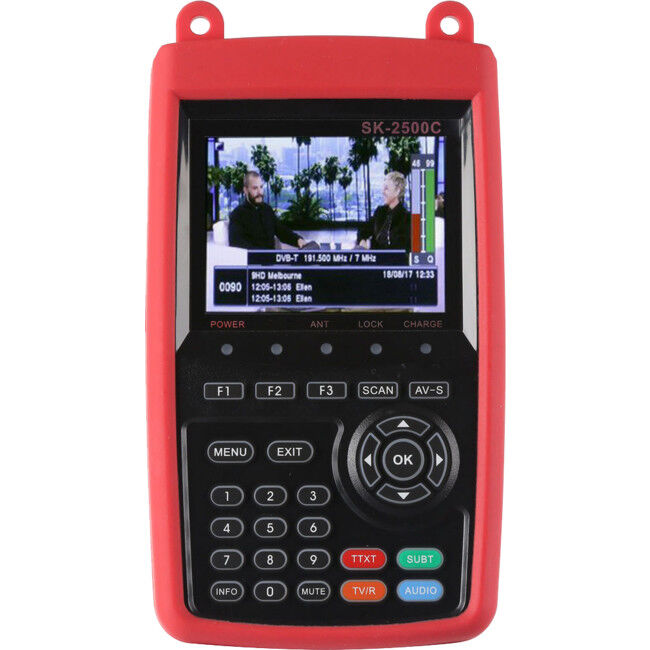

• View Live HD TV with Sound

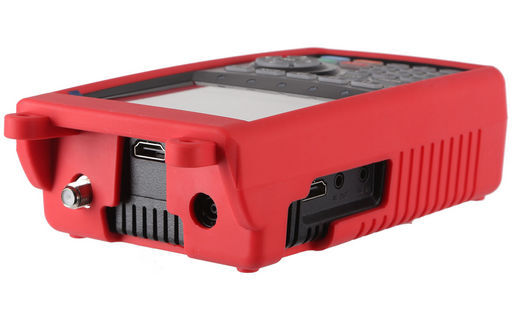

• HDMI Input & Output
• AV Input & Output
• Includes 12V Power for CCTV
• 3.5" High Resolution LCD Screen
• MER, C/N & BER Display
• Spectrum Analyser
• 12V, 18V or 24V DC output voltage to power masthead amplifiers
• Multi Signal Level Display Mode
• Australian Frequencies Pre-Loaded
• Electronic Program Guide
• Inbuilt LED Night Light
• USB for Media Playback & Software Upgrade
• DVB-C Tuner Function
• 3000mAh Lithium Ion Battery
• Includes Meter, 12V Cable, 1x Battery 3000mAh, 1x 240V -- 12V DC Power Pack, Strap, AV Cable and rubber protection case
