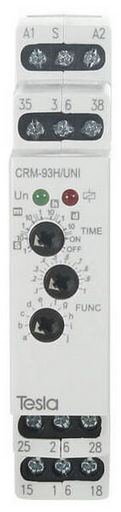

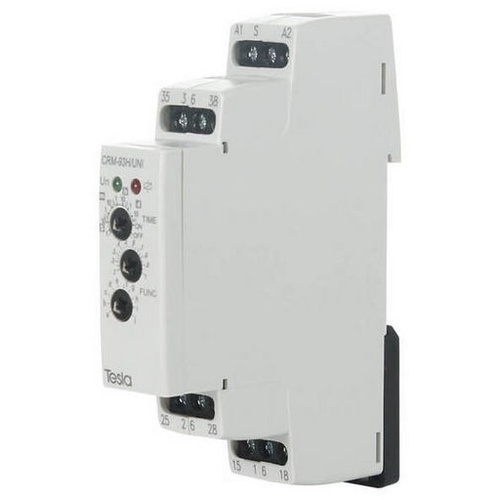

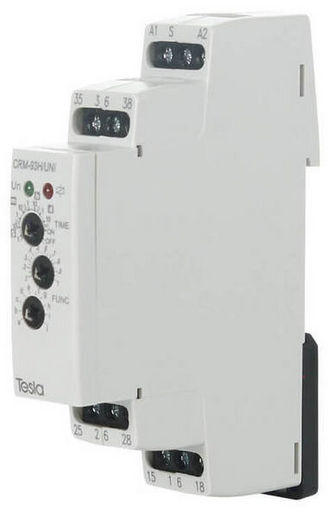

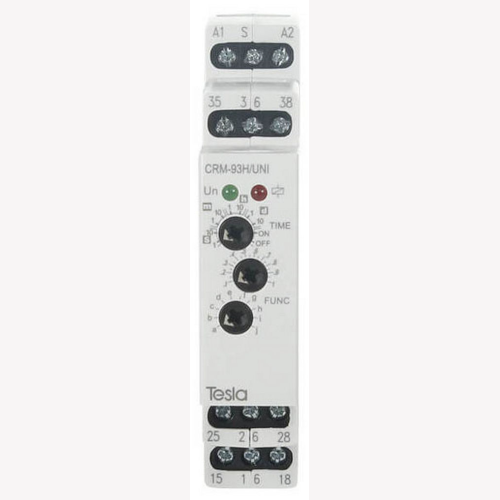

MULTIFUNCTIONAL TIME RELAY 12-240V AC/DC

Multifunctional Time Relay 12-230V up to day

12-240 VAC/VDC

The compact, high-performance multifunction time relay is designed for versatile automation and control applications. Featuring a universal power supply that accommodates both AC and DC inputs across a wide range of 12–240 V, this time relay is engineered to provide flexibility and reliability in various electrical systems. Its comprehensive timing functions, adjustable from 0.1 seconds to 10 days, ensure precise control and operation.

• Multi-function time relay for universal use in automation, control and regulation or in house installations.
• Compatible with both AC and DC power sources, ensuring adaptability in diverse installations.
• Offers up to 10 timing functions, with the following time scales: (0.1s - 1s), (1s-10s), (0.1 min-1min), (1min-10min), (0.1hr-1hr), (1hr-10hr), (0.1day-1day), (1day-10days), only ON and only OFF.
• DIN-Rail mountable.
• 1x changeover SPDT 16A, 2x changeover DPDT 8A.
• Multifunction red LED flashes or shines depending on the operating status.

The CRM93H?UNI uses a universal control voltage, meaning the trigger is the same as the supply:
Trigger voltage range: 12–240?V AC/DC
Trigger type: Voltage?controlled input
When the control voltage is applied ? timing begins
When removed ? timing stops or resets (depending on selected mode)
Trigger behaviour: The relay supports multiple modes (delay?on, delay?off, interval, cyclic, pulse, etc.), so the trigger may:
Start the timer
Reset the timer
Latch the relay
Pulse the relay
…depending on the selected function
