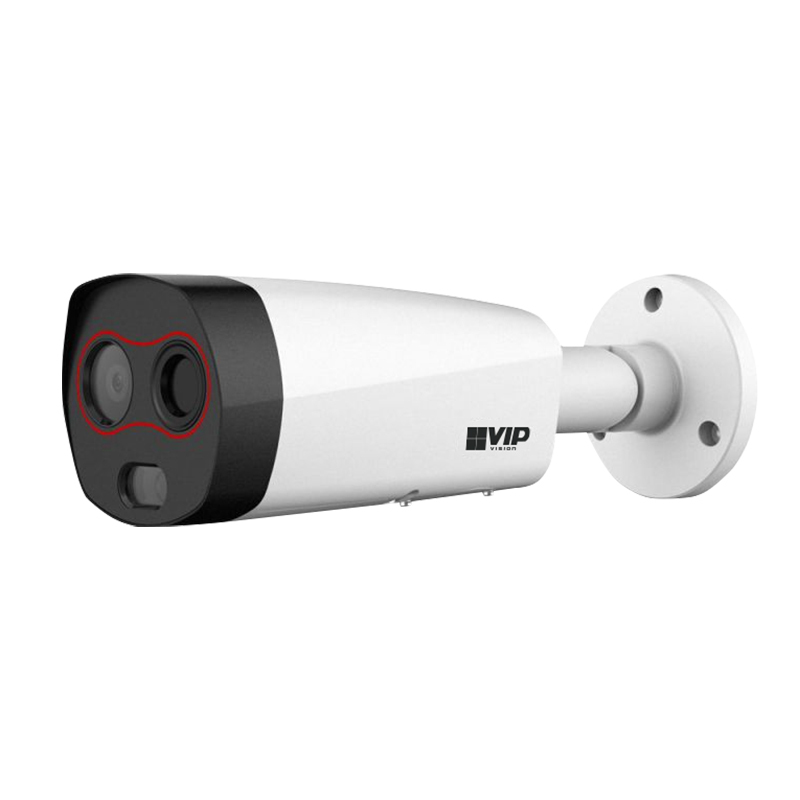

Thermal Body Temperature Measurement System

Doubling as a surveillance system and thermal scanner, the VSIP-2BTS acts as a fast, reliable & precise screening method in high traffic areas. The thermal lens is fine-tuned for body temperature measurement, serving as an automatic alert system and activating a built-in alarm when high temperatures are detected.

Thermal features:

Set body temperature alerts ranging from 30°C to 45°C
High temperature accuracy with ±0.3°C margin of error
Built-in light & buzzer, with additional alarm outputs
Temperature test covers up to 15 people simultaneously

Camera features:

Stream up to Full HD/1080p (1920 x 1080) at 25fps
2.0MP standard sensor & 6mm fixed lens (52.8°)
One IP address/channel for thermal & visible images
50m infrared range, true WDR (120dB) & 2D/3D DNR
Uncooled VOx thermal sensor (256x192 pixels)
7.5mm fixed lens for thermal camera (32.4°)
Detects 8~14μm wavelength infrared spectral range
Audio & alarm input/output, IP67 rated body & PoE

System Includes:

1 x 2.0MP Thermal Body Temperature Camera
1 x BTM Calibration Target
2 x Mounting Tripods
2 x Tripod Connectors for Camera & Calibration Target

Specifications

Visible Light Camera

Image Sensor;1/2.8’’ 2.0MP Progressive Scan CMOS
Max. Resolution;2.0 Megapixel
Effective Pixels;1920 (H) x 1080 (V)
RAM / ROM;512MB / 32MB
Ultra Low Light Colour;Yes
Min Illumination;0.01 Lux/F1.8 (Color), 0 Lux/F1.8 (IR on)
S/N Ratio;> 55dB
Infrared;Yes
Infrared System;1 x Infrared LED, 50m range, Auto/manual on/off control
Lens Type;Fixed
Lens / Iris;6.0mm F2.0 Fixed Lens
Field of View;52.8° (H), 30.3° (V)
Focus;Fixed

Temperature

Measurement Range;30°C ~45°C
Measurement Accuracy;Max ±0.3°C with Blackbody Unit, Max ±1°C without Blackbody Unit
Measurement Mode;Spot / Line / Area
Measurement Rule;Spot: 12 / Line: 12 / Area: 12 / Supports 12 rules simultaneously

Thermal Camera

Thermal Sensor;Vanadium Oxide Uncooled FPA
Effective Pixels (Thermal);256 (H) x 192 (V)
Sensitivity (NETD);<50mK@f/1.0
Spectral Range;8~14μm
Image Settings;Brightness, Sharpness, Region of Interest, Auto Gain Control, Flat Field Correction, 3D Digital Noise Reduction
Colour Palettes;18 thermal colour palettes (eg: WhiteHot, BlackHot, Rainbow etc.)
Lens / Iris (Thermal);7.5mm Fixed Lens
Field of View (Thermal);32.4° (H), 24.6° (V)
Focus (Thermal);Athermalized / Best detecting distance: 3m

Video

Resolution;1080p (1920 x 1080) to CIF (352 x 288)
Frame Rate (Main);Visible: 1080p to 720p (1 ~ 25fps) / Thermal: 1280 x 960 to 720p (1 ~ 25fps)
Frame Rate (Sub);Visible: D1 to CIF (1 ~ 25fps) / Thermal: 640 x 480 to 320 x 240 (1 ~ 25fps)
Frame Rate (Third);N/A
Video Compression;H.265 / H.264M / H.264H / H.264
Bit Rate;H.264: 640 ~ 8192Kbps
Bit Rate Control;Constant bit rate (CBR) / Variable bit rate (VBR)
Day/Night;Auto (ICR) / Color / B&W
Lighting Compensation;BLC / HLC / WDR (120dB)
White Balance;Auto / Manual / Indoor / Outdoor / Tracking / Sodium lamp / Street lamp / Natural
Gain Control;Auto / Manual
Noise Reduction;2D/3D DNR
Picture Control;Mirror / Flip (180°)

IVS

IVS;No
Intelligent Functions;Region of Interest (4 zones)
Thermal Functions-

Network

Ethernet;RJ-45 (10/100Base-T)
Protocol;HTTP; HTTPS; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; SNMP; QoS; UPnP; NTP; Multicast; SFTP; 802.1x
Streaming Method;Unicast / Multicast
Max. User Access;20 Users
RTMP Support;NA

Interface
