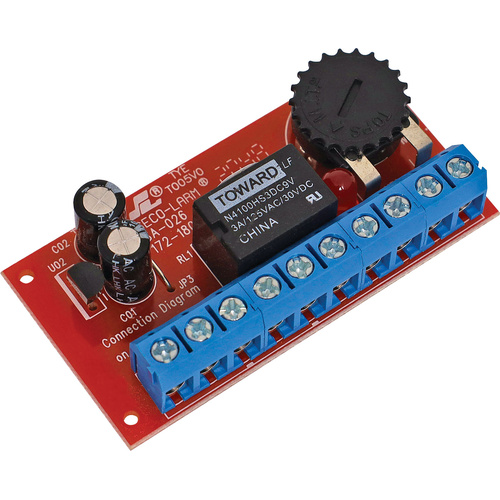

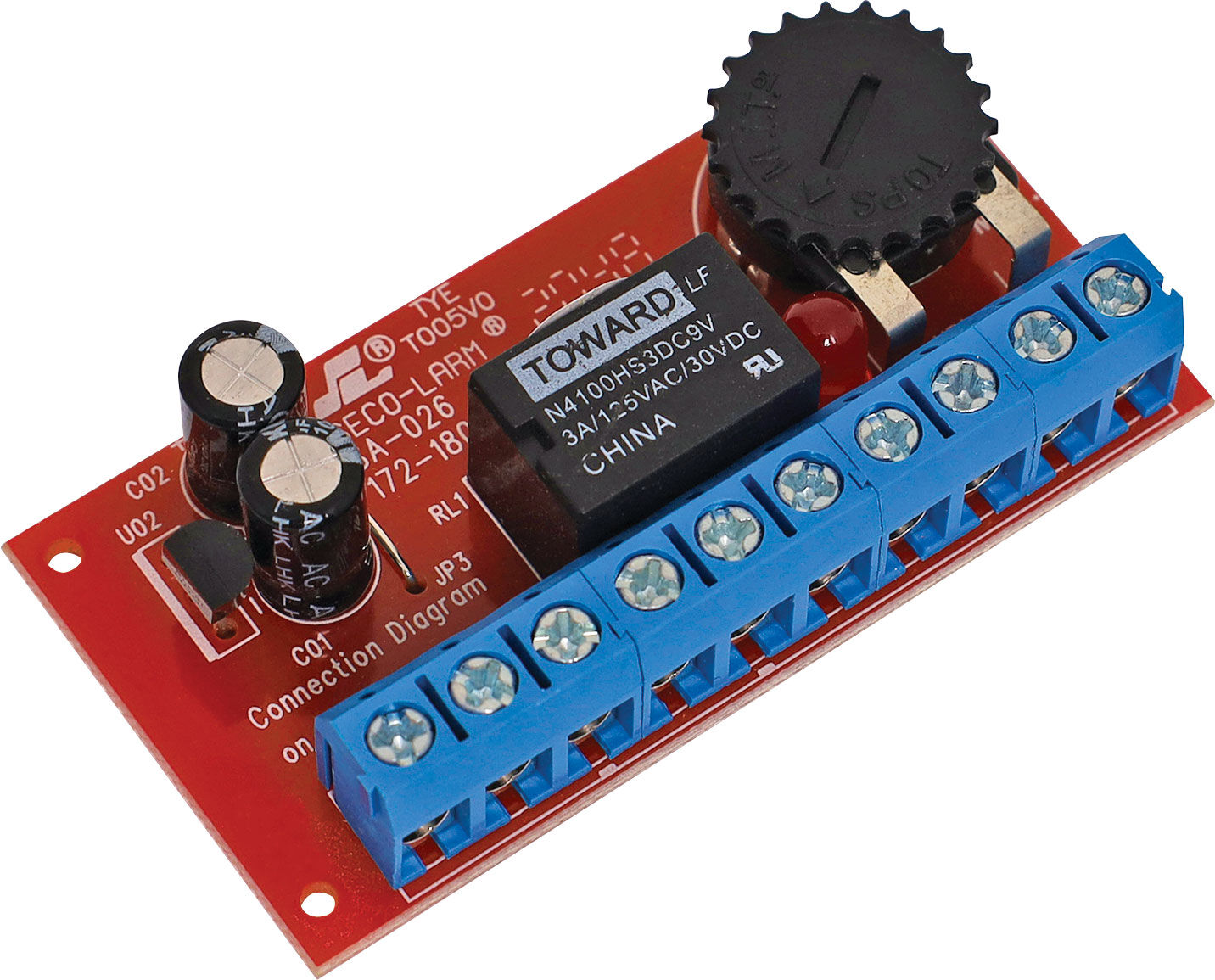

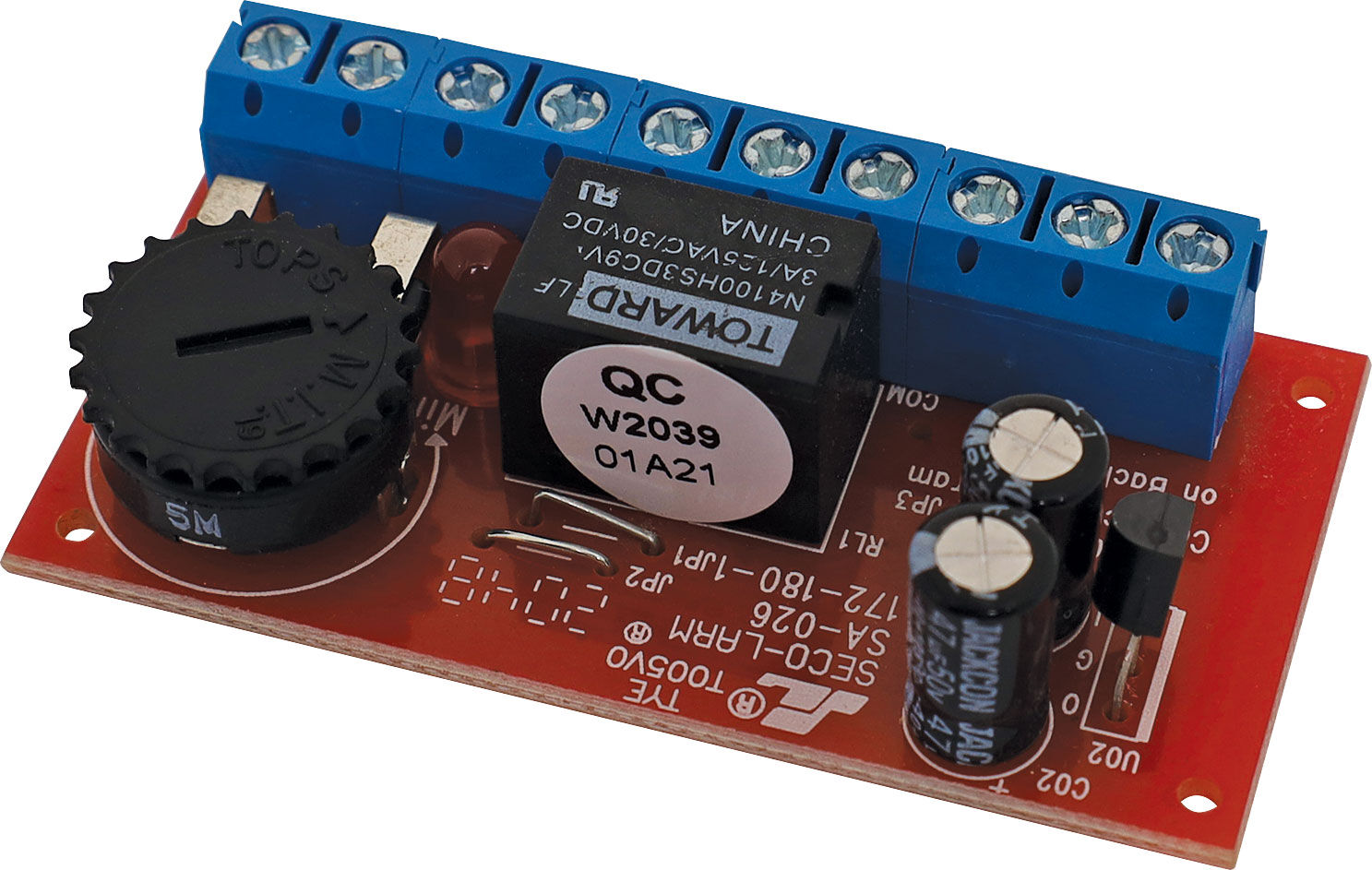

The SA-026Q low voltage miniature timer module operates on 12-24V AC or DC. It may be used to modify the activation time of a momentary contact switch for 1-180 seconds, adjustable via onboard variable resistor. May be triggered by a NC or NO contact. Switched power output, plus voltage free changeover relay contacts.

Specifications

  • Rating: 3A 24VDC

  • Timer duration: 1-180s

  • Trigger: NC or NO

  • Input: 12-24V AC/DC

  • Connections: Screw terminals

  • Dimensions: 30 x 55 x 16mm

(S0090)

SKU S0090
Barcode # 9321758141953
Brand Enforcer
