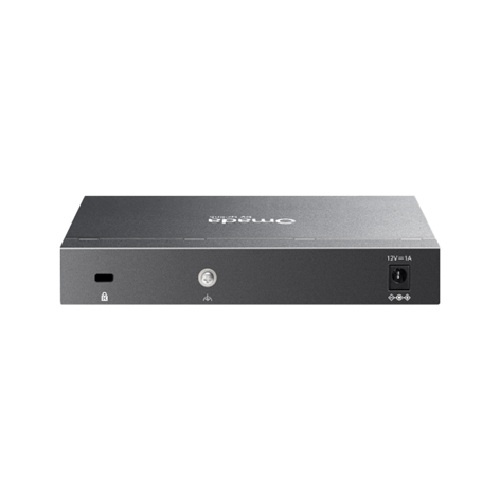

TP-Link Omada ES206X-M2 2.5G Easy Managed Network Switch, 5× 2.5GbE Ports + 10G SFP+, Fanless Design, VLAN, QoS, IGMP Snooping, 5-Year Warranty SPECIFICATION HARDWARE FEATURES Interface •5× 2.5 Gbps RJ45 Ports •1× 10 Gbps SFP+ Slot •Auto-Negotiation/Auto MDI/MDIX Fan Quantity •Fanless Installation •Desktop •Wall Mount Physical Security Lock •√ Power Supply •DC Power Adapter •(Output: 12 VDC / 1 A) Dimensions ( W x D x H ) •6.2 × 4.0 × 1.0 in (158 × 100.7 × 25.4 mm) Surge Protection •±6kV for Ethernet Ports SOFTWARE FEATURES Quality of Service • Port-based/802.1p/DSCP QoS△ • 8 Priority Queues • Priority Schedule Mode - WRR (Weighted Round Robin) • Queue Weight Config • Bandwidth Control - Port-Based Rating Limit • Storm Control - Multiple Control Modes (kbps/pps) - Broadcast/Multicast/Unknown-Unicast Control L2 Features • Static Link Aggregation • Loop Prevention / Loopback Detection • Flow Control - 802.3x Flow Control • Mirroring - Port Mirroring - One-to-One - Many-to-One - Ingress/Egress/Both • Port Statistics - Port Mirror Status - Traffic Statistics • 802.1ab LLDP L2 Multicast • IGMP Snooping - IGMP v1/v2/v3 Snooping - Fast Leave VLAN • MTU VLAN • Port-Based VLAN • 802.1Q Tag VLAN - Max 32 VLAN Groups - 4K VID Transmission Method •Store-And-Forward Warranty Period: 5-Year

(ES206X-M2)

60
SKU ES206X-M2
Model # ES206X-M2
Barcode # 1210002600729
Brand TP-LINK
