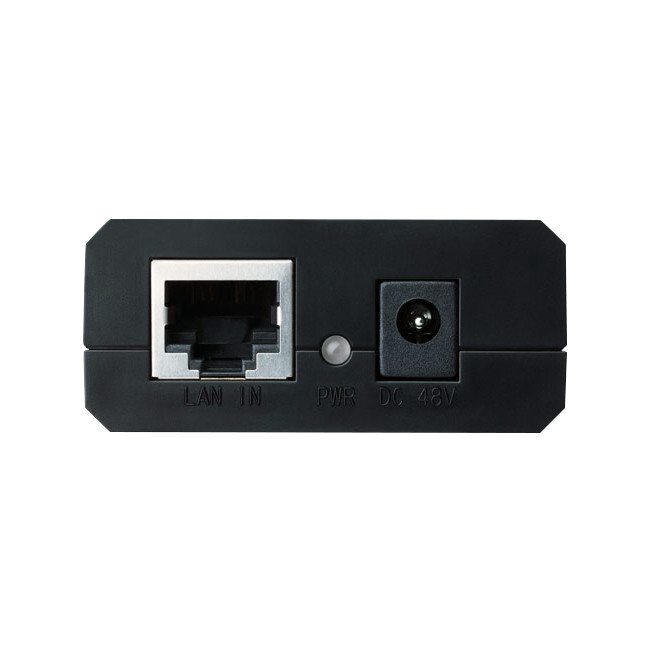

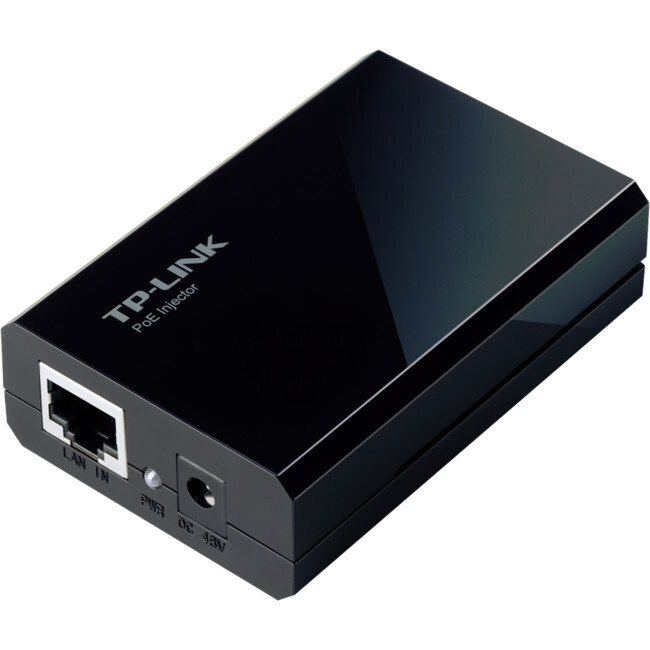

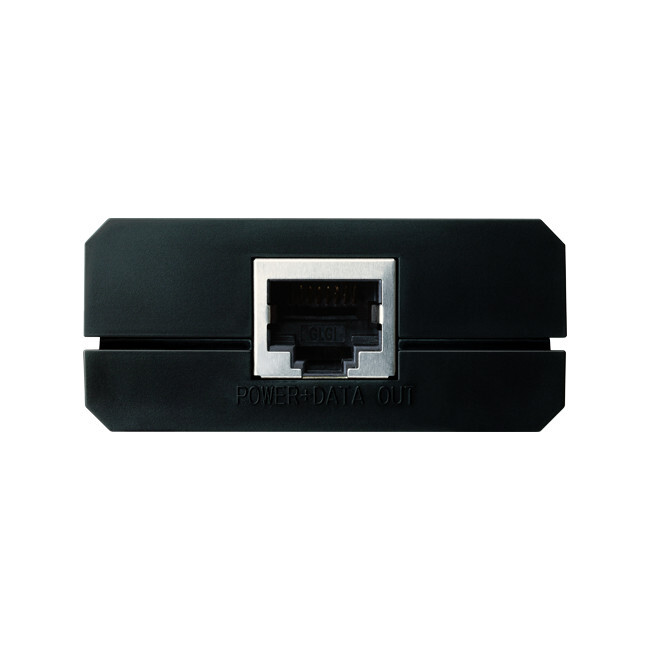

TL-POE150s PoE Injector / Sender Adapter - TP-LINK

The PoE Injector TL-POE150S fully complies with IEEE 802.3af standard, and can work with all IEEE 802.3af PoE compliant PDs (Powered Devices) or PoE Receiver Adapters, such as TP-LINK¡¯s TL-POE10R, or other equivalentproduct, to expand your network to where there are no power line or outlet, where you wish to fix device such as AP, IP Camera or IP Phone, etc.

  • IEEE 802.3af compliant
  • Auto-determine the necessary power requirements
  • Plug-and-Play, requires no configuration
  • Delivers power up to 100 meters
  • External power adapter supply

SPECIFICATIONS:

Standards and Protocols
 IEEE 802.3, 802.3u, 802.3af
 CSMA/CD, TCP/IP
Basic Function
 Compatible with IEEE 802.3af compliant PDs
 Delivers power up to 100 meters
 Auto-determine the necessary power requirements
 Plug-and-Play
Ports
LAN Port
 1 10/100M Auto-Negotiation RJ45 port (Auto MDI/MDIX)
PoE Port
 1 10/100M Auto-Negotiation RJ45 port (Auto MDI/MDIX)
Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum100m)
 EIA/TIA-568 100¦¸ STP (maximum 100m)
 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
 EIA/TIA-568 100¦¸ STP (maximum 100m)
LED Indicator
 PWR
Safety & Emission
 FCC, CE
Dimensions (W*D*H)
 3.2*2.0*0.9 in.(81*52*24 mm)
Environment
 Operating Temperature: 0¡æ~40¡æ (32¨H~104¨H)
 Storage Temperature: -40¡æ~70¡æ (-40¨H~158¨H)
 Operating Humidity: 10%~90% non-condensing
 Storage Humidity: 5%~90% non-condensing
Power Output
 15.4W (Max. 48VDC)

(TLPOE150S)

12 Months

SKU TLPOE150S
Model # TLPOE150S
Barcode # 6935364030506
Brand TP-LINK
Unit Of Measure Each
Assembled Width 0.327m
