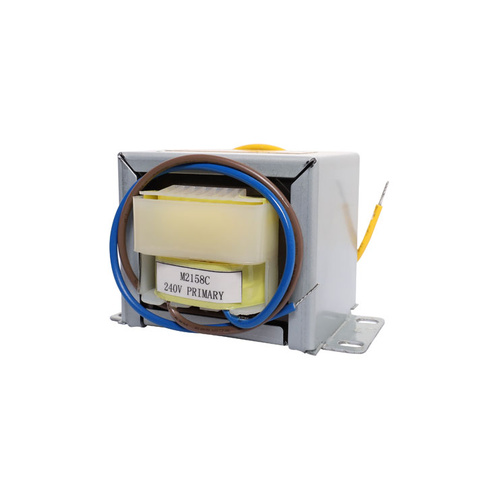

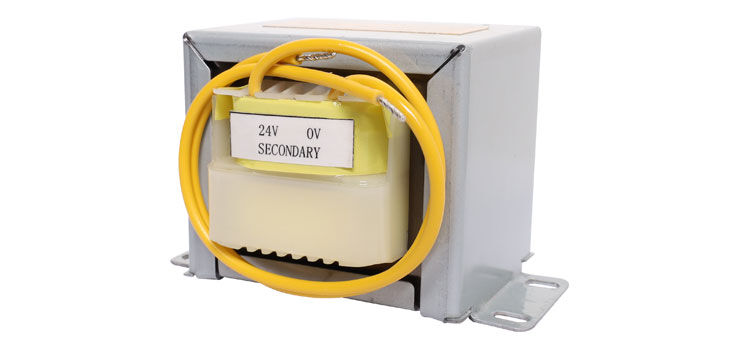

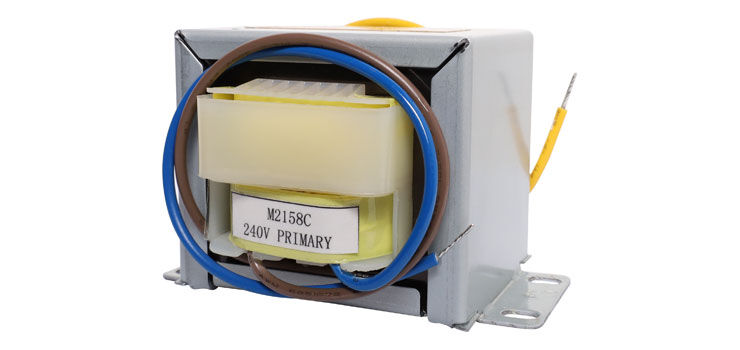

Powertran EI-Core 240V AC mains transformer with 3A single tap secondary configuration. 24V secondary voltage available at 3A current output. Primary and secondaries fitted with 200mm flyleads. Fully electrical authority approved for AS/NZS 61558.2.6. Note: Must be used with a standard 500mA external fuse. All currents listed are AC.



Specifications

  • Primary voltage: 240V AC
  • Total VA rating: 72VA
  • Insulation: Class E (120°C)
  • Magnetising current: <85mA
  • Temperature rise: <65°C
  • Regulation: ˜10%
  • Recommended primary AC fuse: 500mA
  • Weight: ˜1.4kg
  • Primary connection: 200mm fly leads
  • Secondary connection: Solder tags
  • AS/NZS 61558.2.6 approval: Q042028
  • AS3108 approval: CS/813/Q

(M2158L)

SKU M2158L
Model # M2158L
Barcode # 9321758054833
Brand Powertran
Unit Of Measure each
Assembled Width 1.463m
