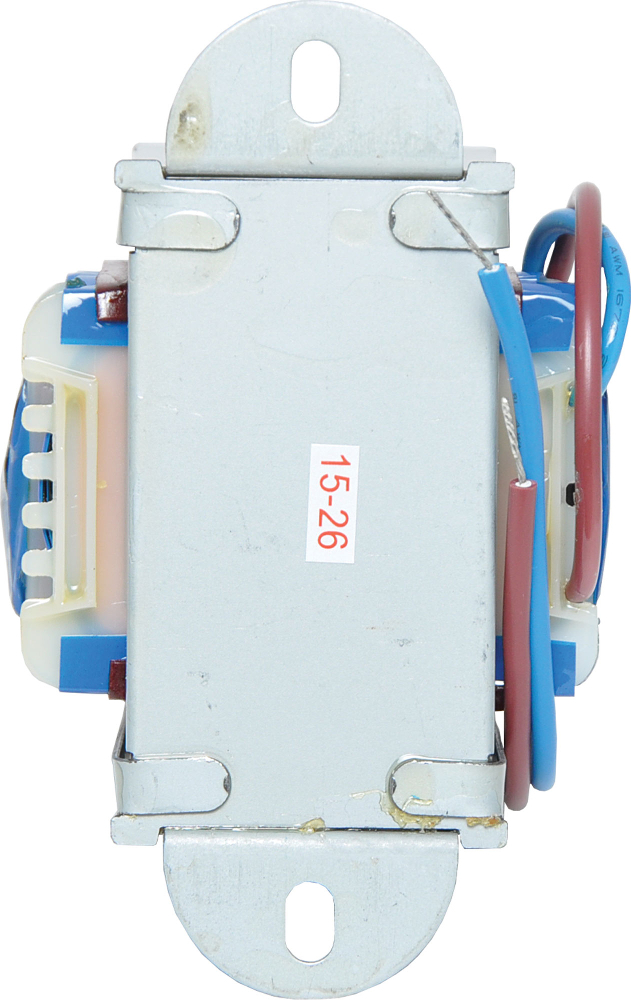

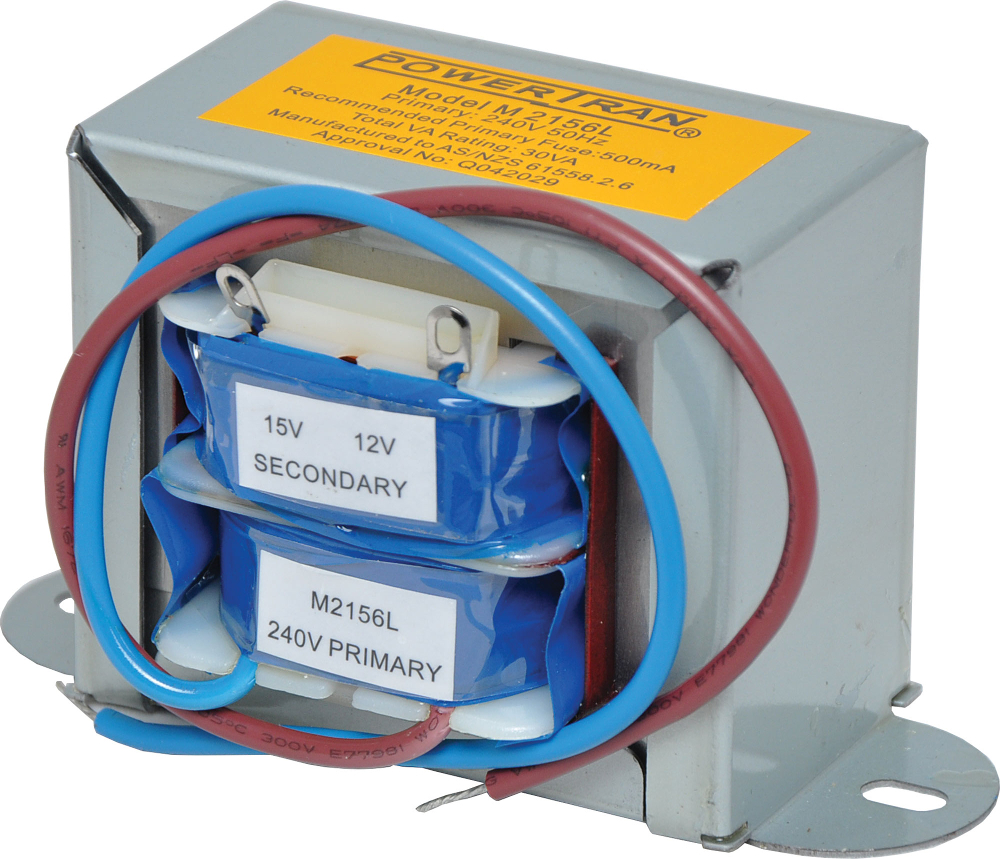

Powertran EI-Core 240V AC mains transformer with 2A multi tapped secondary configuration. 0V, 6V, 9V, 12V and 15V secondaries are available at 2A current output. Primary is fitted with 200mm flyleads. Secondary taps have solder tags. Fully electrical authority approved for AS/NZS 61558.2.6.

Note: Must be used with a standard 500mA external fuse. All currents listed are AC.

Specifications

  • Primary voltage: 240V AC
  • Total VA rating: 30VA
  • Insulation: Class E (120°C)
  • Magnetising current: <65mA
  • Temperature rise: <60°C
  • Regulation: ˜10%
  • Recommended primary AC fuse: 500mA
  • Weight: ˜1kg
  • Primary connection: 200mm fly leads
  • Secondary connection: Solder tags
  • AS/NZS 61558.2.6 approval: Q042029
  • AS3108 approval: CS/814/Q

(M2156L)

SKU M2156L
Model # M2156L
Barcode # 9321758054826
Brand Powertran
Unit Of Measure each
Assembled Width 1.047m
