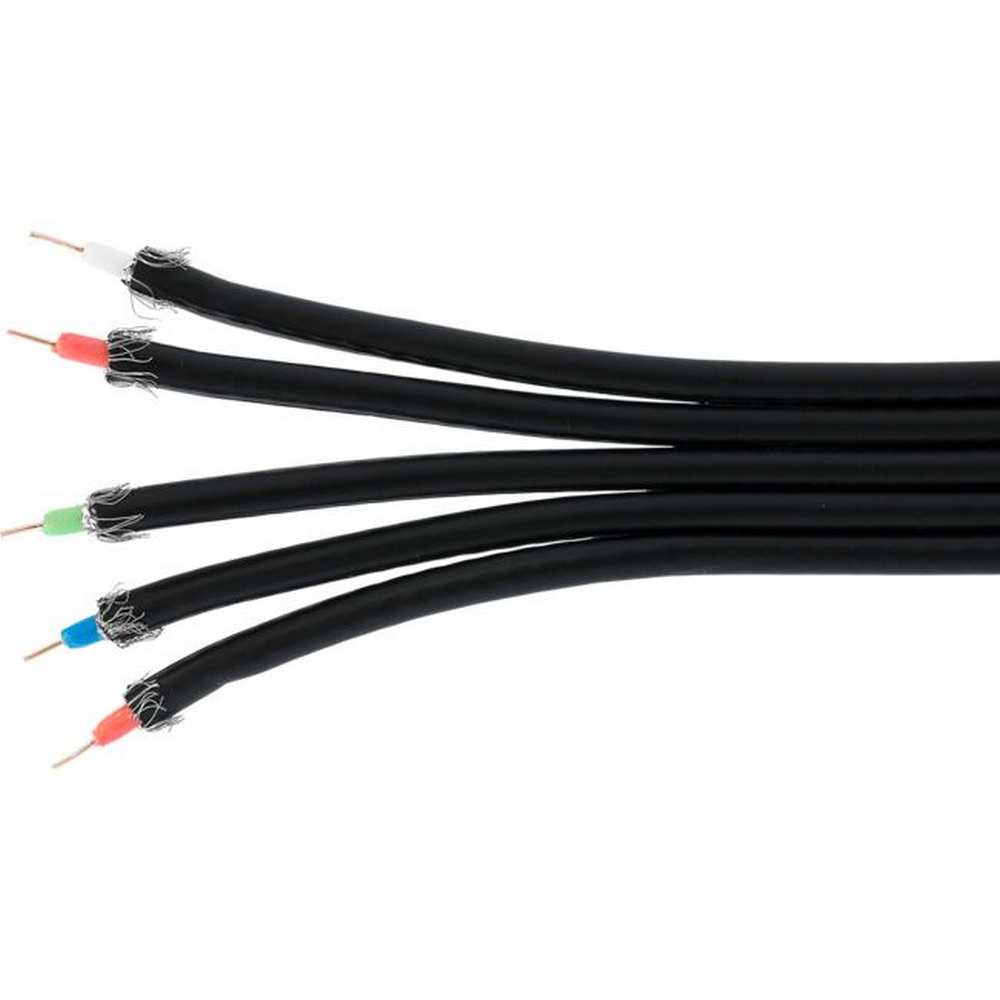

RG59RGBTS WITH STEREO COAX CABLE

Features:

• Ideal for professional, permanent AV installations (inside walls, under floors etc.)
• RGB colour coded cores
• Conductor use purest OFC, it has the characteristicsof high conductivity, low electric resistance, good signal transmission
• Insulation uses foamed PE, which has low dielectricconstant, low capacitance, less attenuation and distortion, ensure signal quality and transmits image and sound signals with high stability and fidelity
• Adopting double shield, aluminum foil + AL/Mg braiding, minimal circuit interference, high signal-to-noiseratio is obtained
• Soft, highly flexible PVC outer jacket is vibration-resistant. It is free of signal quality deterioration caused by molding vibration and bending

Specifications:

• Conductor: 5*1/Ø0.8mm OFC
• Insulation: 5*Ø3.65mm Foamed PE
• Lapping: 5*AL/Mylar
• Braiding: 5*16/3/0.16mm AL/Mg
• Jacket: 5*Ø6.0mm PVC
• Wave impedance: 75±3 ohm(@200MHz)
• Attenuation at 20C: 1 1~450MHz = 20dB/100m 450~862MHz = 30dB/100m 862~2150MHz = 45dB/100m
• Capacity/m: 54±5pF
