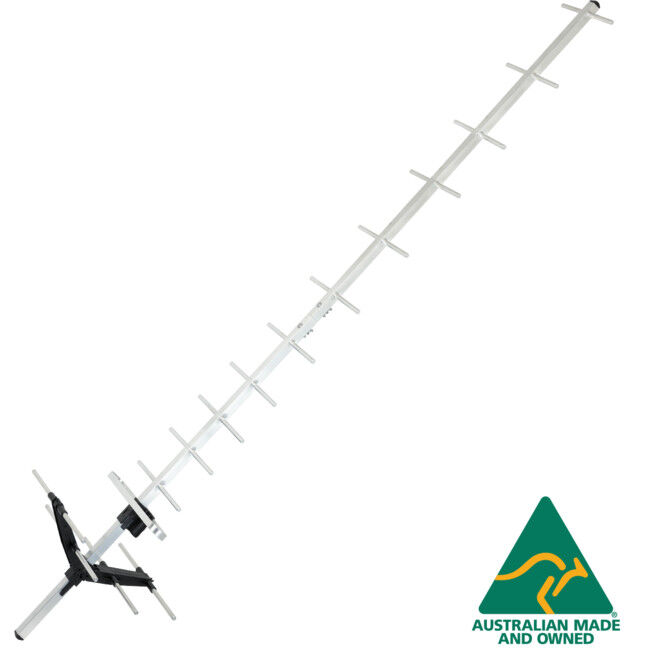

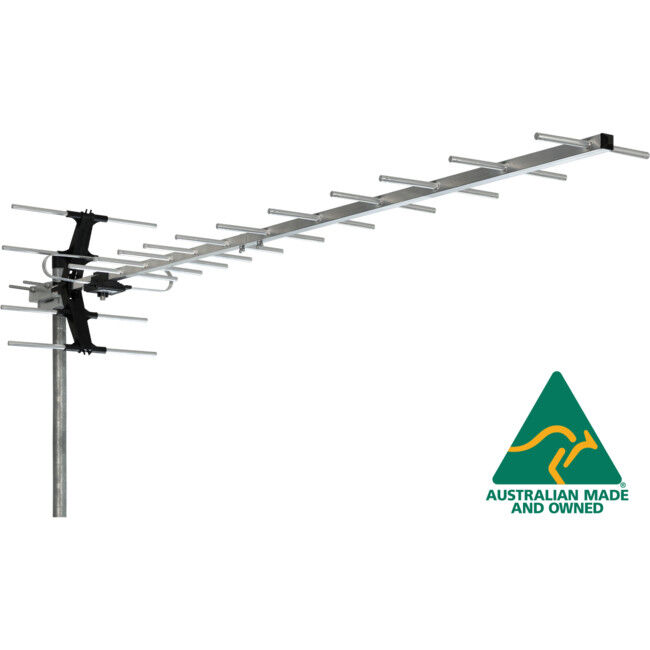

HILLS 01TSF2851-4G TRU-SPEC UHF FRINGE CH28-51 ANTENNA

The Hills UHF Antenna is the latest in the evolution of our UHF Yagi antennas for Digital television and is designed for prime signal areas, covering channels 28 – 51. It is suitable for both domestic and commercial applications. This antenna has the added benefit of an included 4G filter allowing for the best performing installation and system possible, regardless of location or 4G proximity

Features

  • True digital specifications for prime UHF reception areas
  • Boomlock manufacturing technology
  • Channels 28 – 51
  • Ultrasonically sealed balun housing for maximum reliability
  • PCB balun for true matching and lowest insertion loss
  • Integrated 4G+ filtration
  • Strong and lightweight construction
  • Two piece boom
  • Lifetime manufacturers warranty

Specifications

Specifications



Antenna Category UHF
Antenna Type Yagi
Antenna Elements 16
Antenna Band Band 4/5 (Channels 28 – 51)
Antenna Filter 4G/5G >58dB
Antenna Max Gain UHF 10-13dBi
Antenna Front to Back Ratio UHF 15 – 25dB
Antenna Materials Aluminium, UV Stabilised Plastics
Antenna Dimensions (L×W×H) 1745mm × 290mm × 250mm
Antenna Colour Silver
Unit Packaging Display Box
Warranty Lifetime

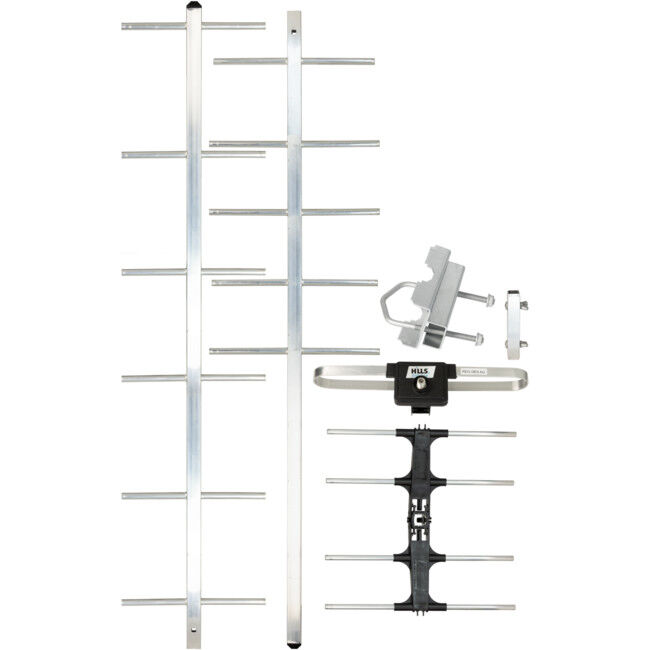

Included Accessories
  • Sealing Boot (For F Connector)
  • V Block & U Bolt fied to antenna



(01TSF2851-4G)

SKU 01TSF2851-4G
Model # 01TSF2851-4G
Barcode # 9340591018475
Brand HILLS
