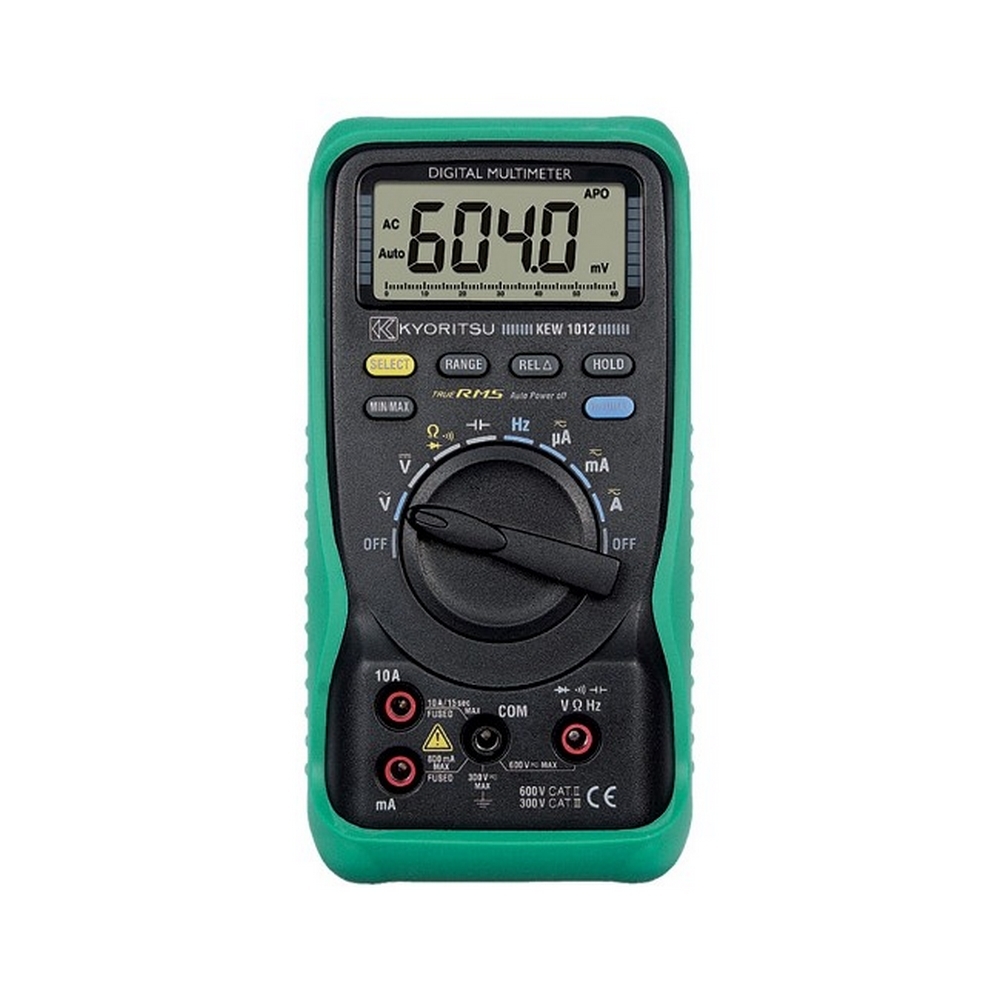

1012 Kyoritsu Compact Digital True RMS Multimeter

High performance and wide range digital multimeter from the world class manufacturer, Kyoritsu.

Wide range for various test fields!

High-powered Digital Multi Meter Series

• 6040 counts with Bar Graph display
• MIN/MAX function enables to record min & max value
• REL(relative value) function to indicate the measurement variation.
  • (Saving the initial value at the start of measurement as a reference value(= zero). The difference between the later measured values and the referencevalue is indicated on the display)
• True RMS can measure and indicate distorted waveforms
• DUTY function
  • (It is possible to measure Pulse width / Pulse period)
• Data Hold function, Auto Power Off function
• Continuity with buzzer and Diode Check function
• Capacity measurement of capacitors
• Current ranges are protected by fuses (600V ceramic)
• Designed to meet international safety standards

Included accessories:

• Test leads, fuse, batteries, carry case, manual.

FEATURES:

• True RMS can measure and indicate distorted waveforms
• 6040 counts with Bar Graph display
• MIN/MAX function enables to record min & max value
• REL(relative value) function to indicate the measurement variation
• DUTY function
• Data Hold function, Auto Power Off function
• Continuity with buzzer and Diode Check function
• Capacity measurement of capacitors
• Current ranges are protected by fuses
• Designed to meet international safety standards: IEC61010-1 CAT.III 300V / CAT.II 600V

SPECIFICATIONS:

DC V	600.0mV/6.000/60.00/600.0/600V (Input Impedance: 10MΩ, 100MΩ only 600mV) t (600.0mV/6.000/60.00/600.0V) t (600V)
AC V	6.000/60.00/600.0/600V (Input Impedance: 10MΩ) t (6.000V) t (60.00/600.0V) t (600V)
DC A	600/6000µA/60/600mA/6/10A t (600/6000µA/60/600mA) t (6/10A)
AC A	600/6000µA/60/600mA/6/10A t (600/6000µA/60/600mA) t (6/10A)
Ω	600Ω/6/60/600kΩ/6/60MΩ t (600Ω/6/60/600kΩ/6MΩ) t (60MΩ)
Continuity buzzer	0~600Ω (Buzzer sounds below 100Ω)
Diode Check	2.8V Release Voltage:Approx. 0.4mATest Current
Capacitance	40/400nF/4/40/400/4000µF
Frequency	10/100/1000Hz/10/100/1000kHz/10MHz
DUTY	0.1~99.9% (Pulse width/Pulse period) t (~10kHz)
Display	6040 Counts
Withstand Voltage	AC 3700V / 1min.
Applicable standards	IEC 61010-1 CAT.III 300V Pollutiondegree 2 IEC 61010-1 CAT.II 600V Pollution degree 2 IEC 61010-031 IEC 61326
Power Source	R6P (1.5V) × 2 (Auto-power-OFF within 15 minutes)
Dimensions	161(L) × 82(W) × 50(D)mm
Weight	Approx. 280g
Accessories	KTL04 (Test Lead) 0.8A/600V (Ceramic Fuse) × 1built-in 10A/600V (Ceramic Fuse) × 1built-in R6P × 2 Instruction Manual
