TX3350UVP TX3350 Ultimate Value Pack - GME

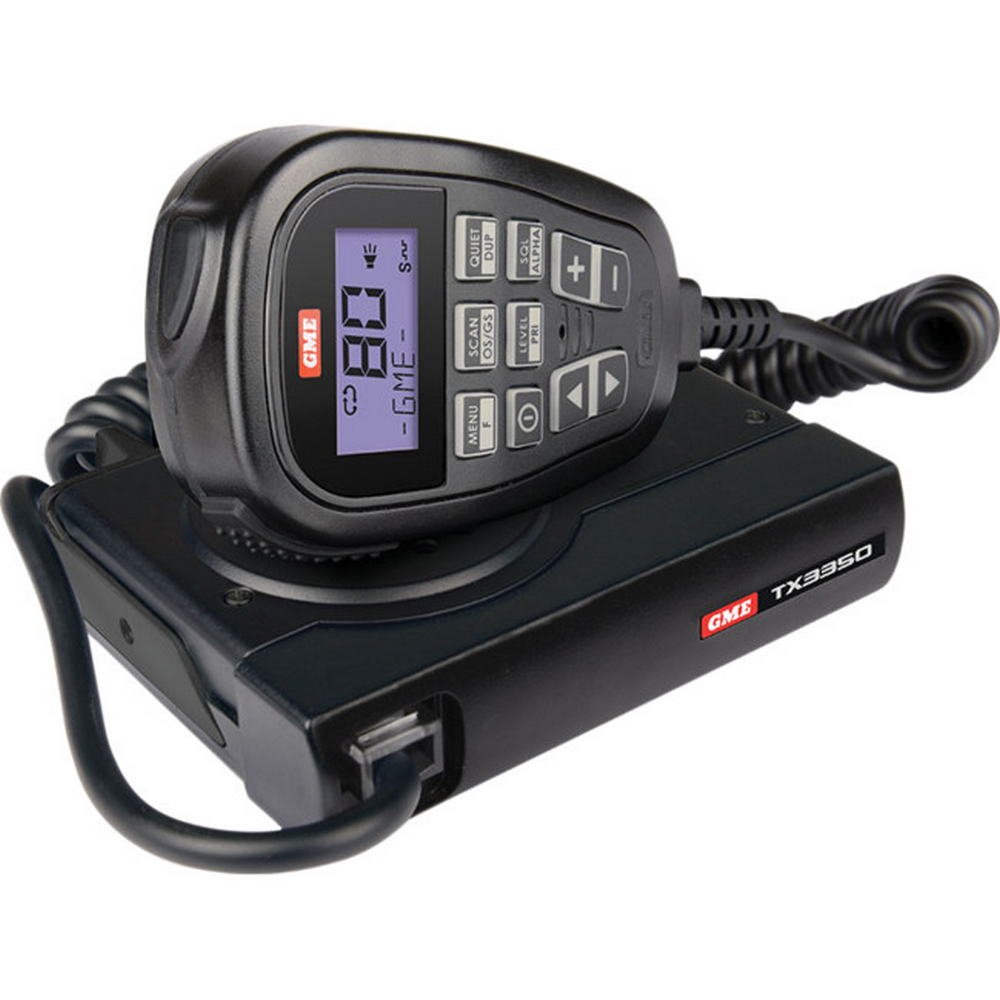

Super Compact UHF CB Radio with LCD SoundPath™ Speaker mic

The TX3350 is an 80 channel, feature packed super compactUHF CB radio with the new SoundPath™ full function LCD Speaker Microphone.

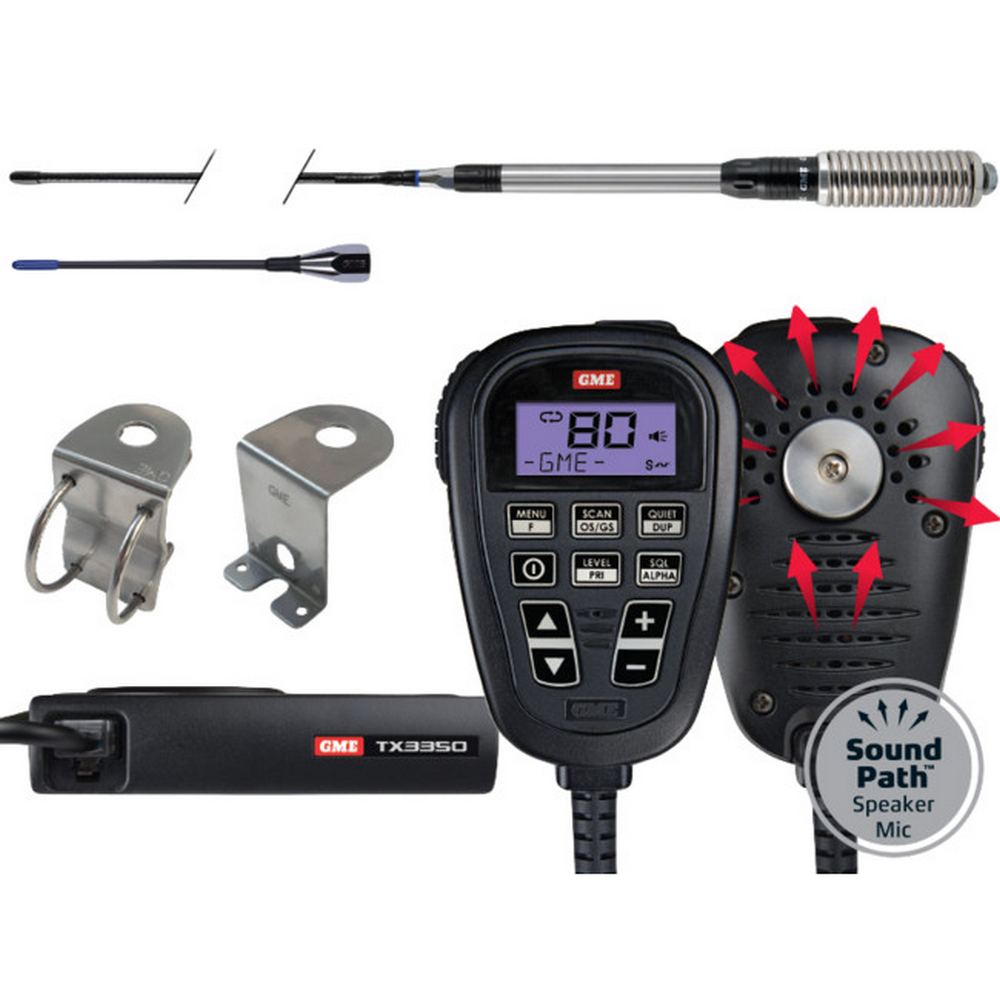

The challenge was to create a unique solution that allowed a full function LCD Microphone that could house a built in speaker with clear audio all within a compact and ergonomic design. SoundPath™ diverts the audio through a unique convex path around the microphone bollard, whilst maintaining the compact size.

The TX3350 combines the unique combination of space saving benefits of a super compact size radio and full function speaker microphone all in the palm of your hand. The radio can now be discretely installed in almost any location within a vehicle and without the need for extensionspeakers.

Features:

Powered by Pure Sound DSP engine
Full spectrum backlit LCD microphone with Soundpath speaker
User selectable open and group scan
User adjustable squelch
User selectable duplex channels
User selectable priority channel
104 in-built DCS codes
50 in-built CTCSS codes
5 digit selcall with quiet mode
Five year warranty
Australian design and manufacture

{tab Specifications}

Compliant SpecificationMeets AS/NZS 4365 for radio communications equipment in the UHF citizen and personal radio service.
Frequency Range TX476.425 – 477.4125 MHz
Number of Channels80 UHF CB
Channel Spacing12.5 kHz
Operation Modesimplex channels 1-80, Semi Duplex channels 1-8, 41-48
Scanning Speed20 channels per second
Antenna Impedance50 Ohms nominal
Nominal Battery Voltage13.8 volts DC
Operating Voltage Range10-15 volts DC
Overvoltage Protection25 volts DC max At 18 volts DC the RF power is reduced, and the words ‘Hi DC’ flash.
Overcurrent ProtectionIn-line 2A Fuse
Frequency stability±2.5 PPM
Modulation FM

RF Output5.0 watts max
Maximum Deviation< ± 2.5 kHz at + 20 dB limiting
Transmit Frequency Response+6 dB per octave, 300 Hz to 3 kHz + 1-3 dB
Current Consumption1.5 amps with 50 Ohms termination

Intermediate Frequencies1st - 21.54, MHz 2nd - 450 kHz
Sensitivity- 123 dBm for 12 dB SINAD unweighted
Selectivity- 6 dB at + 3.5 kHz, - 60 dB at ± 12.5 kHz
Intermodulation Immunity73 dB
Blocking Immunity100 dB
Spurious Response Immunity70 dB
Audio Output Power3 watts average into 4 Ohms
Current consumption< 180 mA muted 600 mA @ max. A.F output
Receive Frequency-6 dB/Octave de-emphasis, 300 Hz to 3 kHz+ 1-3 dB
Conducted Spurious Emission< - 57 dBm

Dimensions102 (W) x 87 (D) x 23 (H) mm
Weight158 grams
