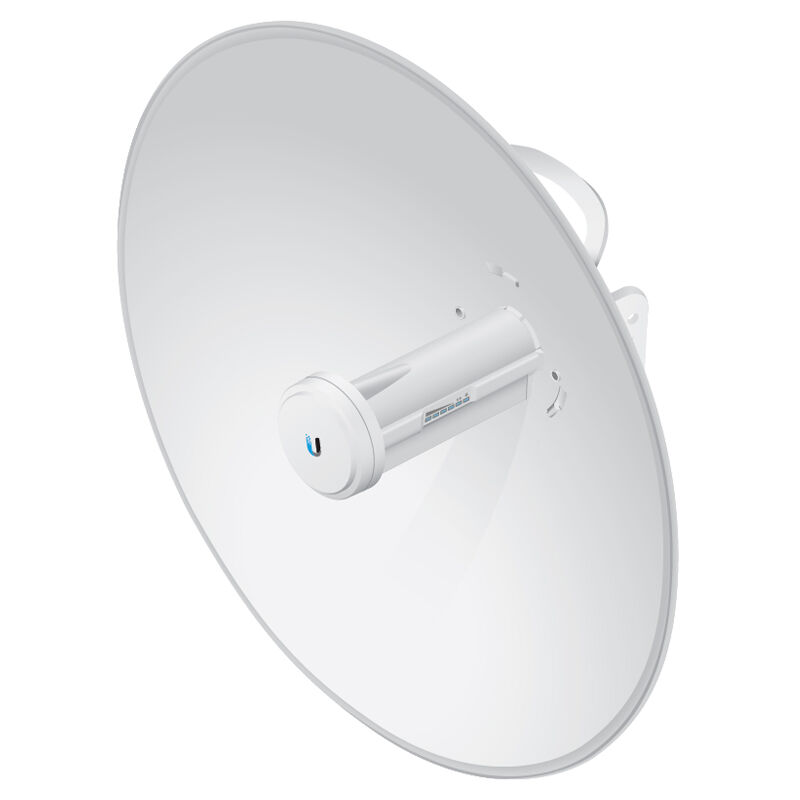

Ubiquiti 5.8GHz 25dBi PowerBeam AC Antenna WT5-UPBAC52

Incorporating a dish reflector design with proprietary technology, the WT5-UPBAC52 is ideal for CPE deployments requiring maximum performance. Its excellent beam directivity provides excellent performance in high-noise environments.

Product features:

• Built-in mechanical ±20° up/down tilt
• Easy removal with a detachable antenna feed
• Extensive transmission range, exceeding 25km in ideal conditions
• Breakthrough throughput supports up to 450+ Mbps
• Operates with a gain measuring 25dBi
• Frequency range reaching 5Ghz
• Galvanised steel dish reflector for corrosion resistance
• Protective for further weather protection
• Configure via smartphone over WiFi

Specifications

• Channel Sizes - PtP Mode: 10/20/30/40/50/60/80 MHz PtMP Mode: 10/20/30/40 MHz
• Dimensions - 420 x 420 x 230mm
• Enclosure - Outdoor UV Stabilized Plastic
• ESD/EMP Protection - Air: ± 24 kV, Contact: ± 24 kV
• Gain - 25 dBi
• LED - Power, Ethernet, Signal strength
• Management Radio - 2412-2472Mhz
• Max. Power Consumption - 8.5W
• Max. VSWR - 1.5:1
• Memory - 64MB
• Mounting - Pole-Mount (Kit Included)
• Networking Interface - (1) 10/100/1000 Ethernet Port
• Operating Frequency - Worldwide: 5150 - 5875 MHz
• Operating Humidity - 5 to 95% Noncondensing
• Operating Temperature - -40 to 70° C
• Polarization - Dual Linear
• Power Method - Passive PoE (Pairs 4, 5+; 7, 8 Return)
• Power Supply - 24V, 0.5A Gigabit PoE Adapter (Included)
• Processor Specs - MIPS 74Kc
• RoHS Compliance - Yes
• Salt Fog Test - IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5
• Signal Strength LEDs - Software-Adjustable to Correspond to Custom RSSI Levels
• Supported Voltage Range - 20 to 26VDC
• Temperature Shock Test - IEC 68-2-14
• UV Test - IEC 68-2-5 at 40° C, Equivalent: ETS 300 019-1-4
• Vibration Test - IEC 68-2-6
• Weight - 2.22kg
• Wind Loading - 380 N @ 200 km/h
• Wind Survivability - 200 km/h
• Wind-Driven Rain Test - ETS 300 019-1-4, Equivalent: MIL-STD-810 G Method 506.5
• Wireless Approvals - FCC, IC, CE
