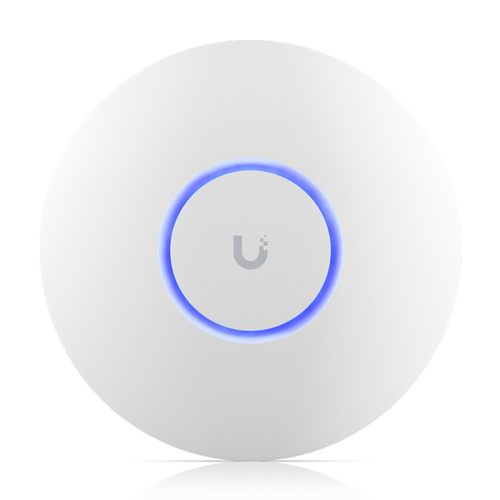

The WT5-U6P, Ubiquiti U6+ is a compact, high speed access point, delivering dual band WiFi 6 up to 115m² .

The WT5-U6P is an ideal access point for residential and small to medium sized commercial applications.

• 802.11a/b/g, WiFi 4/5/6 supported WiFi standards
• 2x2 MIMO 2.4GHz and 2x2 MIMO 5GHz 23dBm antennas
• High throughput rates up to 573Mbps (2.4GHz) and 2402Mbps (5GHz)
• Supports over 300 connected devices; concurrent clients
• Gigabit Ethernet (1000M) RJ45 uplink/networking interface
• PoE powered; 44~57V DC supported voltage (PoE switch or injector sold separately)
• UniFi 7.3 and later for management and AP configuration (QoS, VLAN)
• Polycarbonate and aluminium construction; ABS & steel mount plate
• Overall dimensions Ø160mm x 33mm, 413g total weight
• For indoor use only

Specifications

General

• Dimensions - Ø160mm x 33mm
• Weight - 338g, 413g with mount
• Enclosure - Polycarbonate & Aluminium Enclosure, ABS and Steel Mount Plate
• LED Indicators - White/Blue LED
• Buttons - Factory Reset Button
• Mounting Components
•  - Wall, Ceiling Mount (included)
• Weather Resistance - Indoor Only
• Operating Temperature - -30 ~ 60°C
• Operating Humidity5 ~ 95% (non-condensing)
• Certifications
• CE, FCC, IC

Interface

• Network p - 1 x GbE RJ45 port
• Management - Ethernet

Power

• Power Method - PoE
• Power Supply - - N/A
• Supported Voltage Range - 44 ~ 57VDC
• Max. Power Consumption - 9W

Performance

• Max. Coverage - 115m²
• Max. Transmission Power - 23dBm (2.4GHz, 5GHz)
• MIMO Configuration - 2 x 2 (2.4GHz, 5GHz)
• Throughput Rate - 573Mbps (2.4GHz), 2402Mbps (5GHz)
• Antenna Gain - 3dBi (2.4GHz), 5.4dBi (5GHz)

Software

• WiFi Standards - 802.11a/b/g/n/ac/ax
• Wireless Security - WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
• BSSID - 8 per Radio
• VLAN - 802.1Q
• Advanced QoS - Per-user Rate Limiting
• Guest Traffic Isolation - Supported
• Zero-wait DFS - Supported* (firmware dependent)
• Concurrent Clients - 300+
• Management Application - UniFi Network Version 6.0.34 and later
