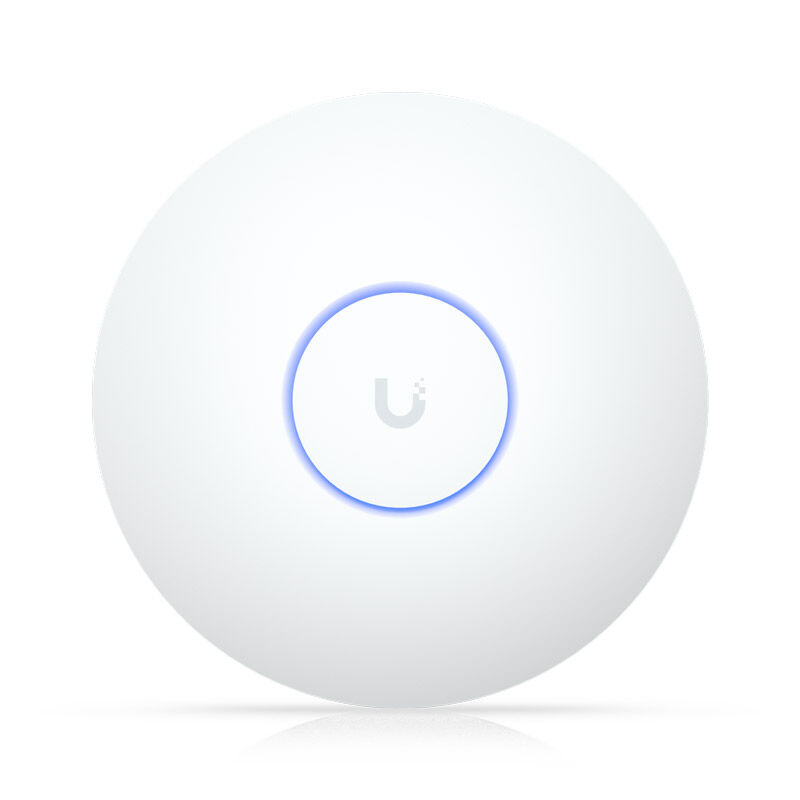

The WT5-U7LR, Ubiquiti UniFi U7 Long Range, is a compact, long range, high speed access point that utilises WiFi 7 technology to provide strong and expansive wireless coverage to enterprise networking environments, up to 160m².

The WT5-U7LR is an ideal wireless access point solution for small to large sized commercial applications.

• 802.11n/ac/ax/be/ WiFi 4/5/6/7 supported WiFi standards
• 2x2 DL/UL MU-MIMO 2.4GHz 26dBm and 3x3 DL/UL MI-MIMO 5GHz 27dBm antennas
• High throughput rates up to 688Mbps (2.4GHz) and 4300Mbps (5GHz)
• Supports over 300 connected devices; concurrent clients
• 2.5GbE Gigabit Ethernet (2500M) RJ45 uplink/networking interface; management also via bluetooth
• PoE powered; 44~57V DC supported voltage range (PoE switch or injector sold separately)
• Polycarbonate construction with stainless steel mount plate
• Overall dimensions Ø176mm x 43mm, 448g total weight

Specifications

General

• Dimensions : Ø176mm x 43mm
• Weight : 448g
• Enclosure : Polycarbonate Enclosure, Stainless Steel Mount Plate
• LED Indicators : White/Blue LED
• Buttons : Factory Reset Button
• Mounting Components : Wall, Ceiling Mount (included)
• Weather Resistance : N/A
• Operating Temperature : -30 ~ 50°C
• Operating Humidity : 5 ~ 95% (non-condensing)
• Certifications : CE, FCC, IC

Interface

• Network : 1 x 2.5GbE RJ45 port
• Management : Ethernet

Power

• Power Method : PoE
• Power Supply : PoE Injector or Switch, 48V 0.5A PoE Adapter (not included)
• Supported Voltage Range : 42.5 ~ 57VDC
• Max. Power Consumption : 14W

Performance

• Max. Coverage : 160m²
• Max. Transmission Power : 27dBm (5GHz) / 26dBm (2.4GHz)
• MIMO Configuration : 3 x 3 (5GHz), 2 x 2 (2.4GHz)
• Throughput Rate : 600Mbps (2.4GHz), 4300Mbps (5GHz)
• Antenna Gain : 4dBi (2.4GHz), 6dBi (5GHz)

Software

• WiFi Standards : 802.11n/ac/ax/be
• Wireless Security : WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
• BSSID : 8 per Radio
• VLAN : 802.1Q
• Advanced QoS : Per-user Rate Limiting
• Guest Traffic Isolation : Supported
• Zero-wait DFS : N/A
• Concurrent Clients : 300+
• Management Application : UniFi Network Version 6.0.34 and later
