JTS Professional UF20RKITHHB9

UF-20 Dual Channel Handheld wideband wireless system- 624-694MHz

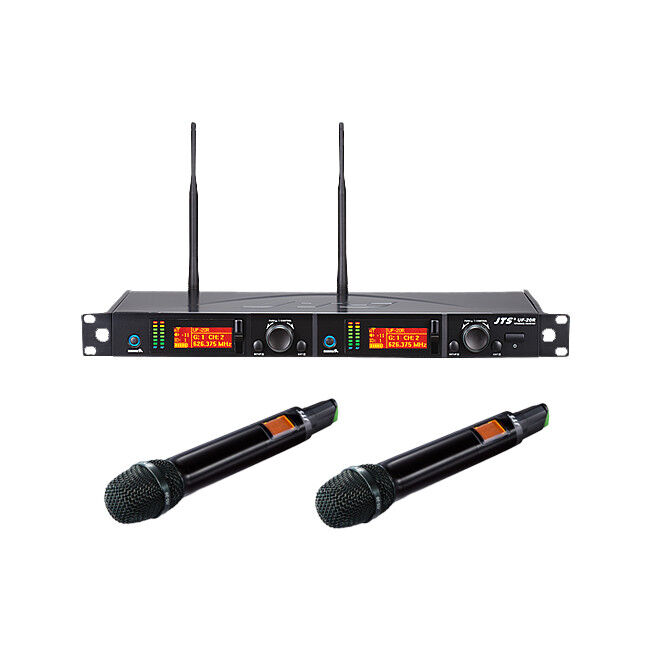

INCLUDES

• UF-20R Dual Channel Receiver
• 2 x JSS-20 handheld transmitters



UF-20R

• UHF True diversity technology renders 200-480 meters of operation distance

• Maximum 2400 to 3000 selectable frequencies across 60 to 75 MHz

• Preset 15 groups each of up to 63 compatible channels

• User programmable 6 groups each of 64 channels

• Free space scan function

• JTS Patented obstacle-free RF function synchronizes a transmitter by pushing a button

• JTS LCX circuit design technology minimizes Companding noise

NEW FEATURES:

• The Remoset not only sends the frequency data but also transmitter’s RF power, sensitivity, low cut, key lock and user's name.

• RF “NO SIGNAL” alert function.

• AF “MUTE” alert function.

• Transmitter “LOW BATTERY” alert function.

• Built in equalizer

• Power / Antenna cascading output provided.

SPECIFICATIONS

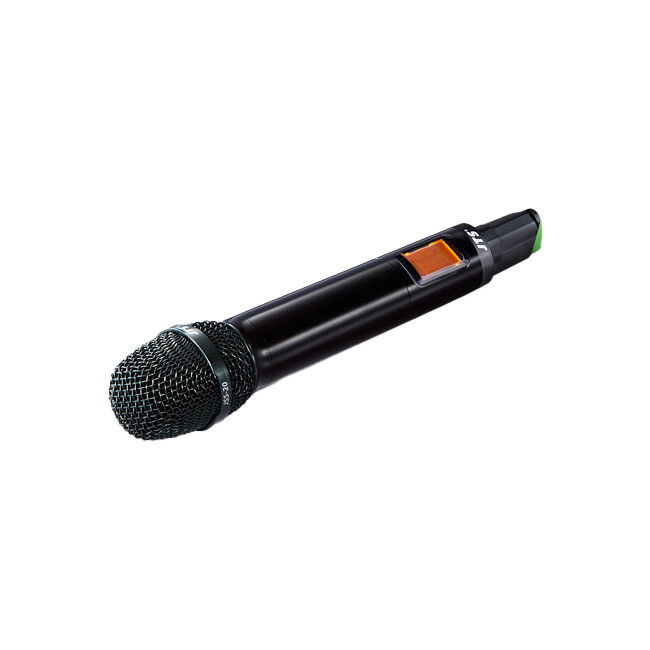

JSS-20

• 2400 to 3000 selectable frequencies

• Preset 15 groups each of up to 63 compatible channels

• Phase-Locked Loop (PLL) synthesized tune

• Adjustable transmission power between Low and High

NEW FEATURES :

• Low cut function.

• JTS newest development SAM-8WLN capsule assures outstanding acoustic performance while minimizes touching noise.

• Interchangeable capsule design for various choices including some classic capsule modules.

• It is designed with slot-in charging feature with two AA NiMH rechargeable batteries.



SPECIFICATIONS
