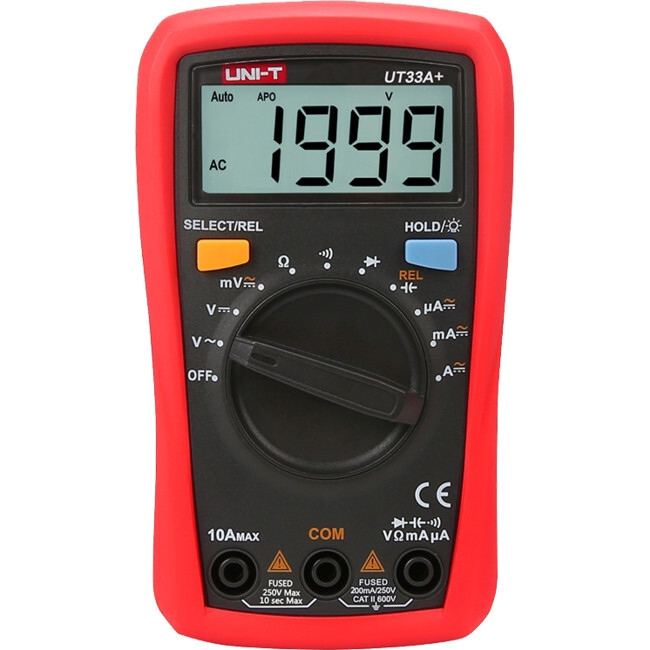

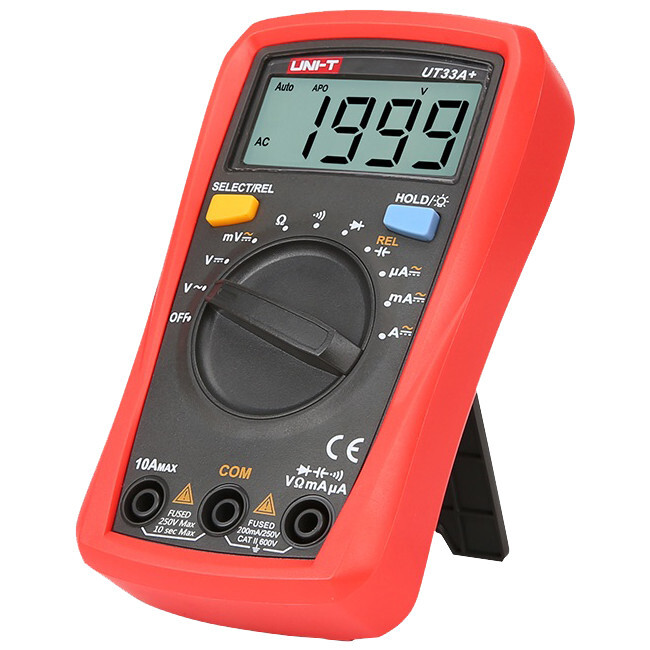

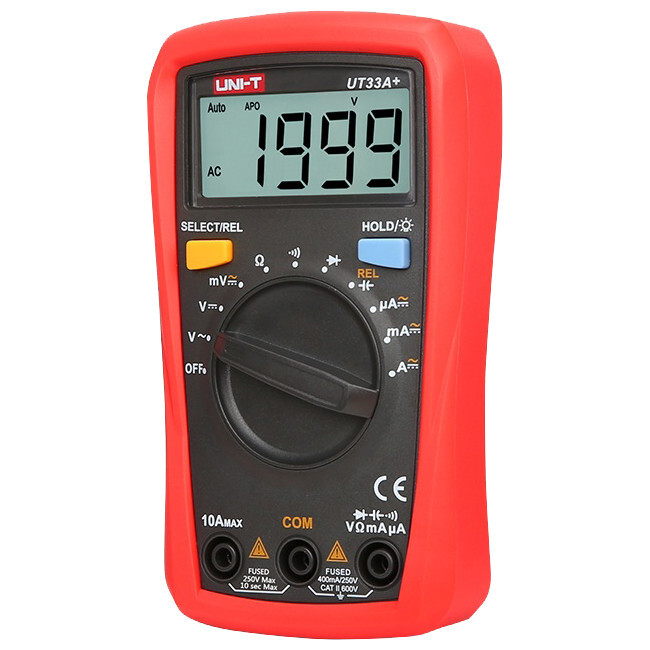

UT33A+ Palm Size Multimeter

The new generation UT33+ series redefines the performancestandards for introductory digital multimeters. Our innovative industrial design makes sure that these products can withstand 2 meters drop. The new LCD display layout provides a better user experience. The UT33+ series safety standards have also been enhanced to ensure that users can work safely in CAT ll 600V environment.

Main features

  • LCD display
  • Equipped with comfortable protective cover, test lead hanging slot
  • 2m drop proof with precision protection
  • Auto power off
  • Auto backlight off
  • Loud buzzer
  • Ergonomically designed rotary switch

Specification

Specifications Range Accuracy
UT33A+
DC voltage (V) 200.0mV~600V ±(0.5%+3)
AC voltage (V) 200.0mV~600V ±(0.7%+3)
200.0V~600V
DC current (A) 200.0µA~10.00A ±(1.0%+3)
AC current (A) 200.0µA~10.00A ±(1.2%+3)
Resistance (O) 200.0O~200.0MO ±(1.0%+2)
200.0O~20.00MO
Capacitance (F) 2.000nF~2.000mF ±(3%+5)
Features
Max display   1999
Auto power off   v
Auto backlight off   v
Diode test   v
Continuity buzzer   v
Drop test   2m
Test probe holder   v
Safety rating   CAT ? 600V
Range selection   Auto
Battery test
Temperature (°C/°F)
NCV
General Characteristics
Power AAA battery (zn-mn) 1.5V×2
LCD size 66mm*51mm
Product color Red and grey
Product net    weight 473g
Product size 131mm×95mm×58mm
Standard    accessories Test lead, manual
Standard individual packing Gift box, manual
Standard carton measurement 640mm×310mm×350mm





(UT33A)

12 month warranty

SKU UT33A
Model # UT33A+
Barcode # 6935750533147
Unit Of Measure each
Assembled Width 0.310m
