UNIFI CLOUD GATEWAY FIBER

Overview

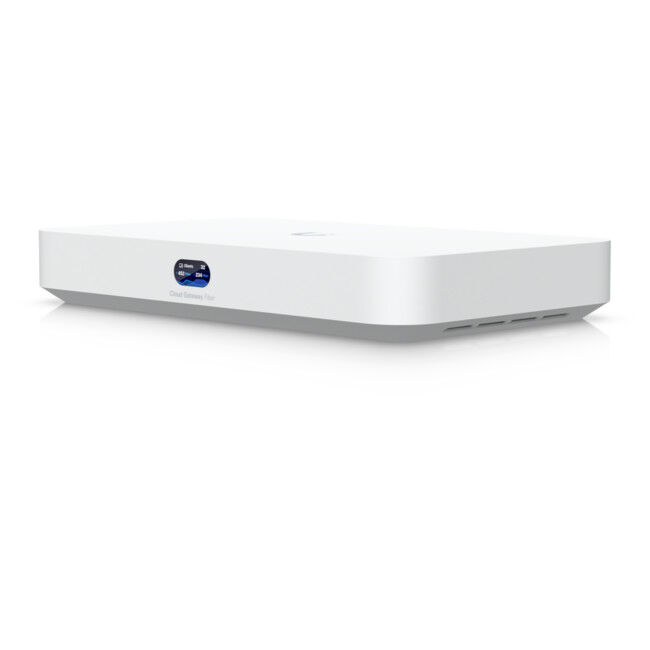

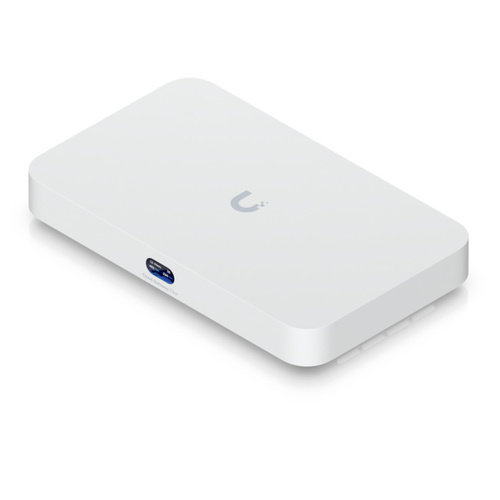

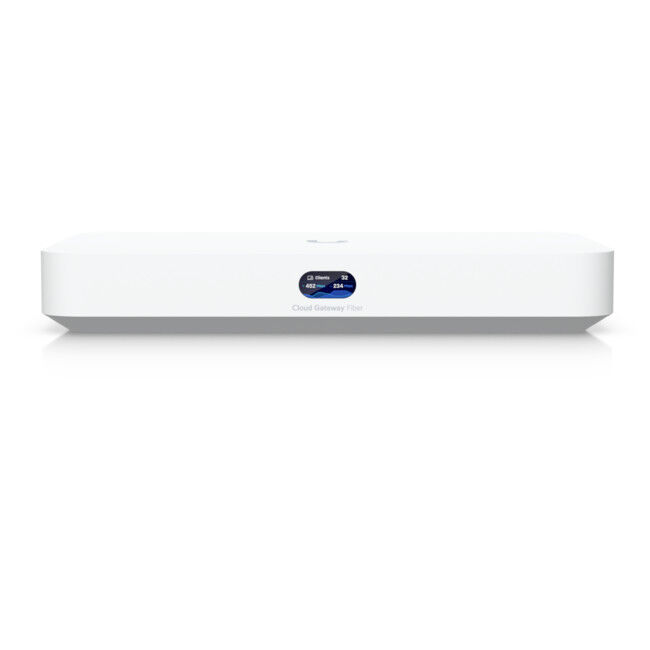

Ubiquiti Cloud Gateway Fiber

Desktop 10G Cloud Gateway with integrated 4-port 2.5 GbE switch, NVR storage slot, and full UniFi application support.

Features:

Includes full UniFi application suite for device management
Manages 50+ UniFi devices and 500+ clients
5 Gbps routing with IDS/IPS
Multi-WAN load balancing
0.96" status display

Compact and Powerful

UniFi routing and cybersecurity in a strikingly compact form factor. Site Manager ready with multi-WAN load balancing and full IPS security.

UniFi Site Manager Ready

Completely plug-and-play with no CloudKey required. Just add internet.

Integrated 4-Port 2.5 GbE Switch with PoE+ Support

Equipped with a built-in 4-port 2.5 GbE switch, including one PoE+ port, the Cloud Gateway Fiber simplifies device connectivity and power management.

Dual 10G WAN Ports

Featuring both a 10G SFP+ and a 10 GbE RJ45 WAN port, the Cloud Gateway Fiber offers versatile high-speed internet connection options.

Compact Form Factor

Designed with a sleek and compact desktop form factor, the Cloud Gateway Fiber fits neatly into various environments without occupying excessive space.

Scalable for Growing Businesses

Manage 50+ UniFi devices and 500+ connected clients through a single interface.

All the Power of UniFi

The complete UniFi experience in a strikingly compact form factor.

Specifications

Product Specifications

Overview
Dimensions	212.8 x 127.6 x 30 mm (8.3 x 5 x 0.5 ")
UniFi Application Suite
Network	✓
Protect	✓
Access	✓
Talk	✓
Connect	✓
Managed UniFi Devices	50+
Managed Cameras	(15) HD (8) 2K (5) 4K
Simultaneous Users Connected	500+
Max. WAN Port Count	6
Default WAN Ports	(1) 10G SFP+ (1) 10 GbE RJ45
Port Layout
2.5 GbE RJ45	4 (2.5G/1G/100M/10M)
10 GbE RJ45	1 (10G/2.5G/1G)
10G SFP+	2 (10G/1G)
IDS/IPS Throughput	5 Gbps
Form Factor	Compact desktop

Security
Stateful Firewall	✓
Application-Aware Layer 7 Firewall	✓
DPI & Traffic Identification	✓
Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps)	✓
Content Filtering	✓
Intrusion Prevention (IPS/IDS)	✓
Ad Blocking	✓
IDS/IPS Signatures	55,000+ with CyberSecure
VLAN/Subnet-based Traffic Segmentation	✓

VPN &SD-WAN
License-Free SD-WAN	✓
Site-to-Site VPN
Site Magic	✓
IPsec	✓
OpenVPN	✓
VPN Server
Identity Endpoint One-Click VPN	✓
Teleport Zero-Configuration VPN	✓
WireGuard	✓
OpenVPN	✓
L2TP	✓
VPN Client
OpenVPN	✓
WireGuard	✓

Networking
Multi-WAN Load Balancing	✓
Dynamic Routing
OSPF	✓
Advanced QoS	✓
Multicast DNS (mDNS)	✓
Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT)	✓
Integrated RADIUS Server	✓
RADIUS over TLS (RadSec)	✓
Additional Internet Failover with UniFi LTE Backup	✓
Internet Quality and Outage Reporting	✓
MAC Address Table Size	4000

Hardware
NVR Storage	Selectable NVMe SSD up to 2 TB
PoE Budget	30W
Voltage Range PoE Mode	50-57V
Max. Power Consumption	29.4W (Excluding PoE output)
Power Method	DC jack (54V DC/1.1A)
Power Supply	54V DC/1.1A (adapter included)
Supported Voltage Range	100240V AC
Processor	Quad-core ARM® Cortex®-A73 at 2.2 GHz
System Memory	3 GB
Weight	Without SSD: 675 g (1.5 lb) With SSD: 734 g (1.6 lb)
Enclosure Material	Polycarbonate
LCM Display	0.96" status display
Management	Ethernet Bluetooth
LEDs
Ethernet	✓
SFP+	✓
Button	(1) Factory-reset
ESD/EMP Protection	Air: ± 8kV, contact: ± 4kV
Ambient Operating Temperature	0 to 40° C (32 to 104° F)
Ambient Operating Humidity	5 to 95% noncondensing
NDAA Complied	✓
Certifications	CE, FCC, IC
