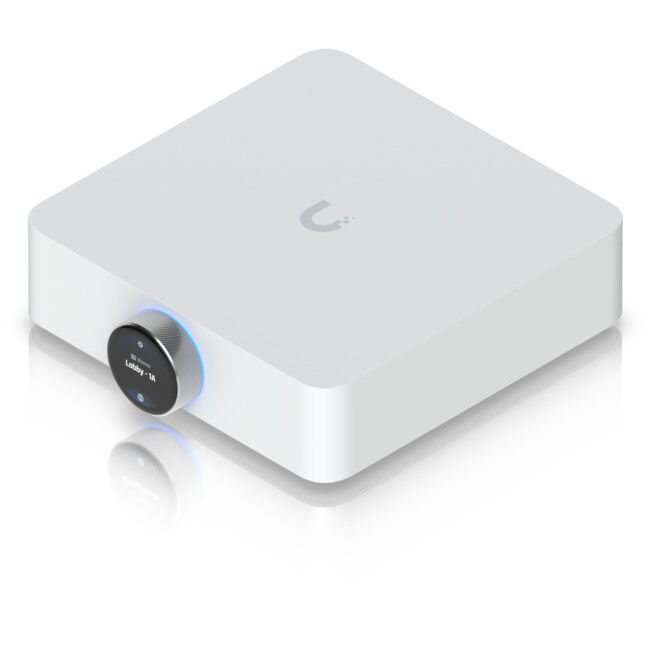

UbiquitiPowerAmp,White,Premium Speaker Amplifier Designed For High-fidelity Multi-zone Audio Streaming & Immersive Spatial Sound Experiences

Features

Premium speaker amplifier designed for high-fidelity multi-zone audio streaming and immersive spatial sound experiences.

  • Apple AirPlay 2 & Spotify Connect
  • Powerful 130W Per Channel Output

  • Intuitive Touchscreen Rotary Knob
  • (1) RCA Analog Subwoofer Output

  • (2) RCA Analog Inputs for Left and Right Channels
  • HDMI eARC Input
    (2) Speaker Terminal Outputs with (2) Banana Plugs
  • Group Control for up to 32 PowerAmps
  • UniFi Pro A/V Switching Ready

Specifications

Mechanical

Dimensions
 With knob: 217 x 236.8 x 63.7 mm (8.5 x 9.3 x 2.5")
  Without knob: 217 x 217 x 63.7 mm (8.5 x 8.5 x 2.5")
Weight
2.4 kg (5.3 lb)
Enclosure material
Plastic
Mounting
Desktop
Colour
White
Hardware

Networking interface
(2) GbE RJ45 ports
WiFi standards
802.11 a/b/g/n/ac
Connectivity
 WiFi 2.4G, BW 20/40 MHz
  WiFi 5G, BW 20/40/80 MHz
Power method
(1) Universal AC input, 100-240V AC, 2.5A Max., 50/60 Hz
LEDs
LED ring
Button
Factory reset
NDAA Compliant
Yes
Audio

Per channel power (Continuous power)
 130 W, 8 Ω, 1 kHz, < 0.05% THD+N, EIA (CEA-490-A)
  260 W, 4 Ω, 1 kHz, < 0.09% THD+N, EIA (CEA-490-A)
Amplifier class
Class D
Output
Mono / Stereo sound
Surround format
Dolby Atmos, Dolby TrueHD, Dolby Atmos (True HD), Dolby Atmos (Dolby Digital Plus), Dolby Digital, Dolby Digital Plus, Stereo PCM, Multichannel PCM, Dolby Multichannel PCM
Grouping
Up to 32 PowerAmps
Audio input
 (1) HDMI eARC input
  (2) RCA analogue inputs L/R
Audio output
 (1) RCA analogue subwoofer output
  (2) Speaker terminal outputs with (2) banana plugs
Streaming
AirPlay2, Spotify Connect, Soundtrack Your Brand
Application Requirements

UniFi Play
UniFi Play iOS™ and Android™: Version 1.0.0 and later

(UPL-AMP-W)

12
SKU UPL-AMP-W
Model # UPL-AMP-W
Barcode # 810084697498
Brand UBIQUITI
