Aten USB VGA KVM Console Extender - 1920x1200

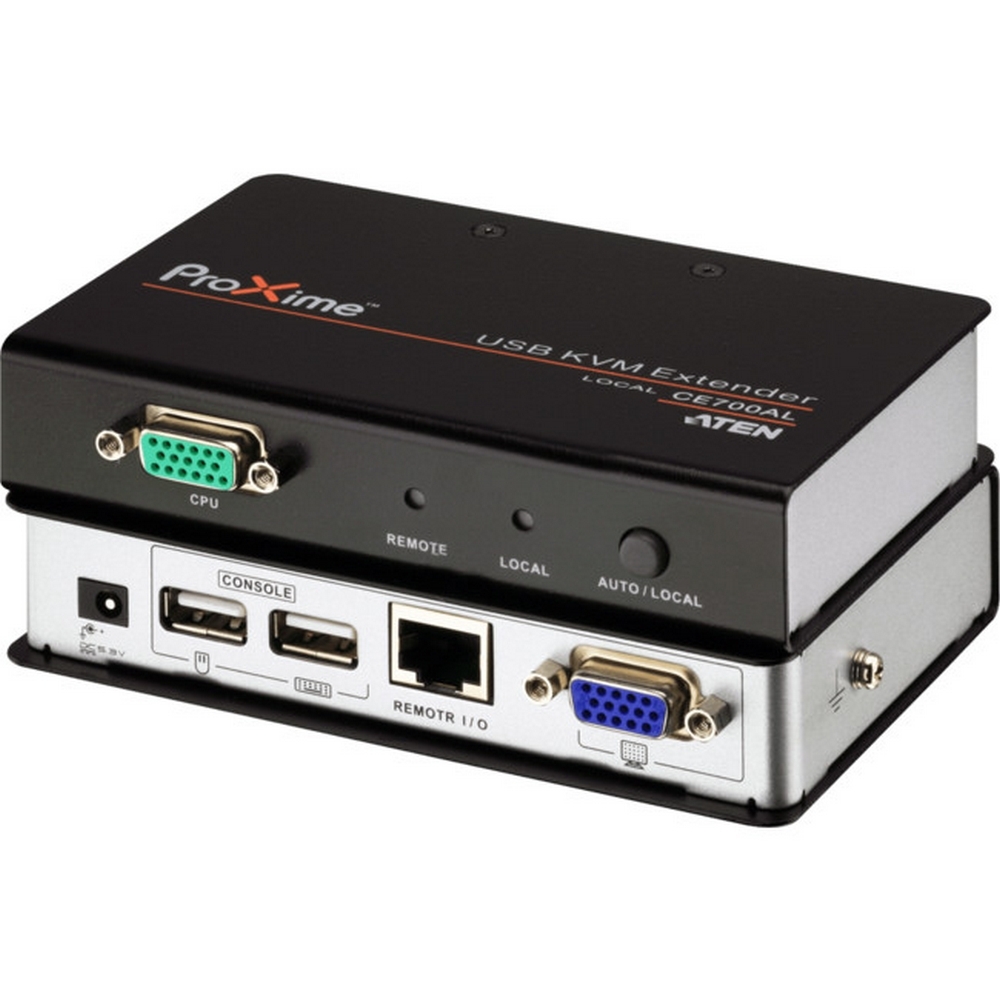

Aten CE-700A – USB KVM Extender

The CE700A is a USB KVM Extender with superior video quality and built-in ESD and surge protection that allows access to a computer system up to 150 meters away from a remote USB console (USB keyboard, monitor, and USB mouse).

The CE700A improves on previous designs by: 1) incorporating 8KV/15KV ESD protection and 2KV surge protection; 2) providing superior video quality - up to 1920x 1200 resolution; 3) using inexpensive Cat 5e cable, instead of bulkier, more expensive, standard cables, for a much neater, more convenient, more reliable data transfer connection; 4) it is able to sense the distance to the system and automatically adjusts the gain accordingly; and 5) it features a custom ASIC to ensure the utmost in reliability and compatibility.

Features

• Cat 5e cable connects the Local and Remote Units - up to 150m apart
• Dual console operation - control your system from boththe local and remote USB keyboard, monitor, and mouse consoles
• Built-in ASIC for greater reliability and compatibility
• Auto Signal Compensation (ASC)
• USB Keyboard and USB Mouse Ports
• USB overcurrent detection and prevention
• Pushbutton operating mode selection (Local Unit only) - select between Local and Auto operating modes.
• Built-in 8KV/15KV ESD protection (Contact voltage 8KV;Air voltage 15KV) and 2KV surge protection
• Automatic gain control - adjusts signal strength to compensate for distance
• High resolution video - up to 1920 x 1200@60Hz (30m );1600 x 1200@60Hz (100m); 1280 x 1024@60Hz (150m)
• Supports VGA, SVGA, SXGA, UXGA, WUXGA and multisyncmonitors; local monitor supports DDC; DDC2; DDC2B
• Rack mountableEasy to install - no software required -connecting cables to the devices is all it takes
• Multiplatform support - Windows, Linux

Compatible Cables:2L-5201U, 2L-5202U, 2L-5203U, 2L-5205U, 2A-130G

Specifications

• Connectors:
  • Console Ports:
    • Keyboard:1 x USB Type A Female (White)
    • Video:1 x HDB-15 Female (Blue)
    • Mouse:1 x USB Type A Female (White)
  • KVM Ports CE700AL:
    • Keyboard/Video/Mouse:1 x SPHD-17 Female (Green)
  • Unit to Unit:1 x RJ-45 Female (Black)
  • Power:1 x DC Jack (Black)
• Pushbuttons CE700AL:
  • Operating Mode Selection:1 x Pushbutton
• LEDs CE700AL:
  • Local:1 (Green)
  • Remote:1 (Green)
• LEDs CE700AR:
  • Remote:1 (Green)
  • Link:1 (Green)
• Emulation - Keyboard/Mouse:USB
• Power Consumption:
  • CE700AL:DC5.3V/2.31W
  • CE700AR:DC5.3V/2.84W
• Video:
  • 1920 x 1200 @ 60Hz (30m)
  • 1600 x 1200 @ 60Hz (100m)
  • 1280 x 1024 @ 60Hz (150m)
• Environment:
  • Operating Temp.:0 ~ 50°C
  • Storage Temp.:-20 ~ 60°C
  • Humidity:0 ~ 80% RH, Non-condensing
• Physical Properties:
  • Housing:Metal
  • Weight:
    • CE700AL:0.32 kg
    • CE700AR:0.31 kg
  • Dimensions (LxWxH):12.50 x 8.15 x 2.50cm
• Package Contents:
  • 1 x CE700AL USB KVM Extender (Local Unit)
  • 1 x CE700AR USB KVM Extender (Remote Unit)
  • 2 x Power Adapters
  • 1 x USB KVM Cable (1.8m)
  • 1 x Mounting Kit
