Overview

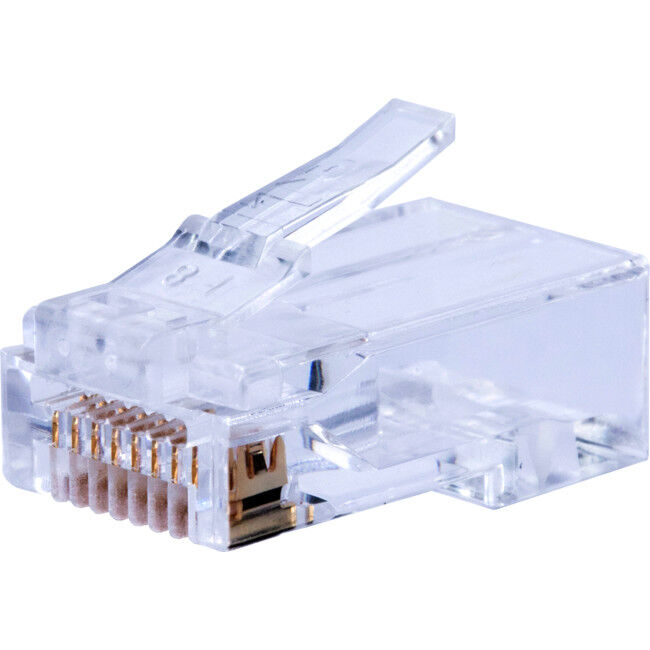

The T3 SNAP PLUG™ and SNAP PLUG Tool are designed to simplify the process of terminating RJ45 modular plugs. It is a time-consuming process to assemble traditional RJ45 modular plugs, and the most difficult part would be putting the wire into the conductor in the correct order. The thicker the conductor is, the more difficult the job is going to be.

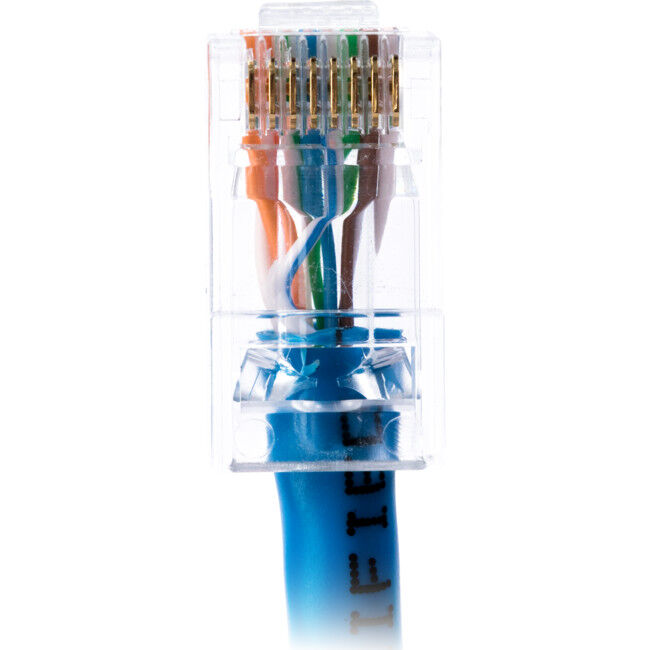

The T3 SNAP PLUG™ enables the conductors to pass through the connector itself, making it a lot easier to verify wiring order before crimp, reducing possible errors and waste of materials, save time and effort on terminating RJ45 connectors.
Use the SNAP PLUG TOOL to crimp and trim in a single step, making professional wire termination fast and easy.

Specifications

  • Cat6 UTP 1 piece 3 prongs
  • 50-micron fully gold-plated contacts
  • Max conductor ID: 1.0mm - 1.05mm / 0.04" Solid or stranded 23 AWG
  • Compliant with PoE and PoH standards
  • Meets ANSI/TIA specifications

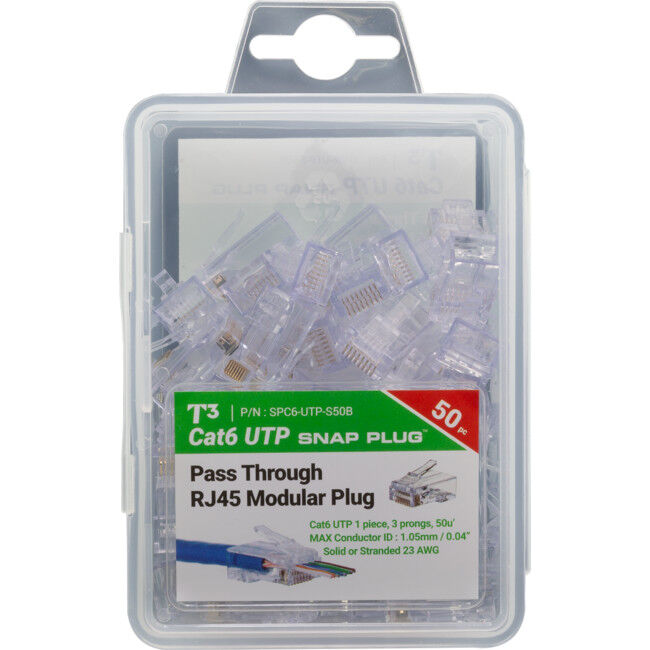

  • Pack of 50pcs



(T3SPC6-50)

SKU T3SPC6-50
Model # T3SPC6-50
Barcode # 9328202035141
Brand T3 innovation
