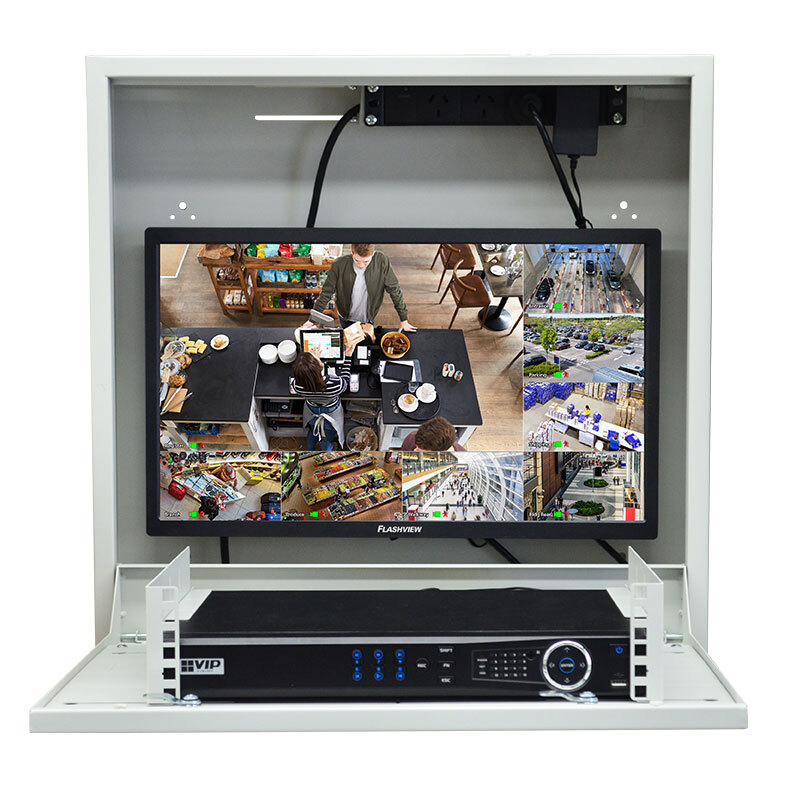

The SECCAB is a compact, vertical, wall-mount security cabinet that is great for delivering professional results in security installations. The SECCAB offers secure storage of CCTV surveillance, alarm & access control systems in difficult areas with limited space, such as behind refrigerators, in cupboards or wardrobes.

The SECCAB vertical rackmount shelf has a capacity of up to 2U height, up to 480mm width & 465mm depth, with extra space to mount up to a 24'' LCD monitor. It can house 1 HDD, 2HDD and 4HDD bay NVRs and DVRs from VIP Vision, Watchguard, Securview. It can also accommodate a WGAP864 alarm system and professional VIP Vision access control system in a single cabinet.

Product Features:

• Compact; only 580(W) x 635(H)x 180(D)mm (closed)
• Capacity: 2RU, 240~480mm width, 465mm depth
• Cable management knockouts from all cabinet sides
• Superior ventilation; optional 2 x 50mm cooling fans
• Fit up to 24” monitor, with 50/75/100 VESA mounts
• Integrated 4 x outlet powerboard & 2 x cabinet locks
• 30kg cabinet load bearing capacity (10kg vertical shelf)
• 440mm width between mount points to fit wall studs
• SPCC steel construction and white powder coating
• USB Fans included

Specifications

Vertical Rack Capacity

• Max. Capacity (H)  : 2RU (~90mm)
• Max. Capacity (W) : Adjustable 240 ~ 480mm rackmount slides
• Max. Capacity (D) : 465mm

Monitor

• Max. Monitor Size : 24” (16:9 widescreen)
• VESA Mount : 50 / 75 / 100

Features

• Ventilation : 2 x 50mm fan slots (optional)
• Cabinet Lock : 2 x locks on front door
• Cable Management : 2 per side, 8 total (40 x 50mm each)
• Power : 4 x Outlet Powerboard

Installation

• Wall Mount : 4 x Mounting Points with Hooks
• Wall Mount Dimensions (W x H) : 440 x 353mm

General

• Load Capacity  : Wall Mount: 30kg / Hinged Shelf: 10kg
• Materials : SPCC quality cold rolled steel, powder coated
• Dimensions (W x H x D) : Closed: 580 x 635 x 180mm / Open: 580 x 635 x 712mm

Other

• Cabinet Depth : 465mm
• Fixed Shelves : No
• Mounting Options : Wall Mount
• Power Board : Yes
• Rack Units (RU) : 2
• Wheels : No
