Victron Energy Blue Solar PWM-LC12/24V-10A Light-C
$60.95
or 4 payments of $15.24 with Learn more
Brand New
Selling Unit | EACH | ||
Description | BlueSolar MPPT75/10A 12V/24V 10A Solar Charge Controller SCC010010050R | ||
Original Brand | Victron Energy SCC010010050R | ||
Width | 113mm | ||
Height | 100mm | ||
Length/Breadth/Depth | 40mm | ||
Weight | 500g |

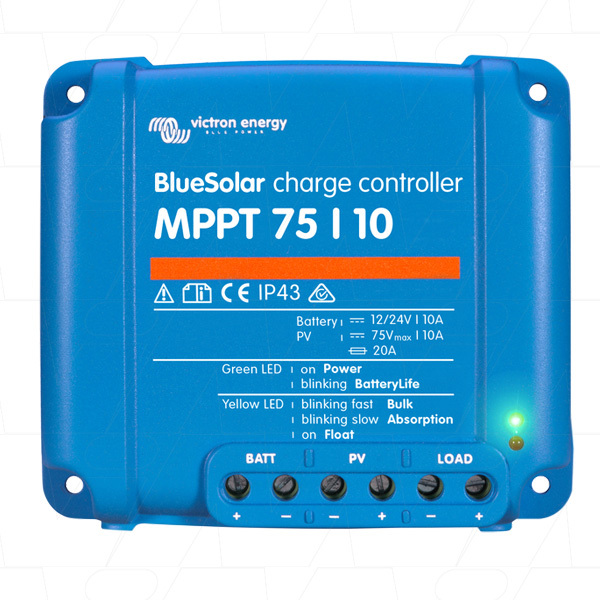

BlueSolar MPPT75/10A solar charge controller from Victron Energy with:
12V/24V auto select battery voltage
10A rated charge current
145W @12V or 290W @24V maximum PV power
Automatic load disconnect
98% peak efficiency
Reverse polarity (fuse) protection, output short circuit protection, over temperature protection
Ultra fast Maximum Power Point Tracking (MPPT)
Especially in case of a clouded sky, when light intensity is changing continuously, an ultra fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.
Load output
Over-discharge of the battery can be prevented by connecting all loads to the load output. The load output will disconnect the load when the battery has been discharged to a preset voltage.
Alternatively, an intelligent battery management algorithm can be chosen: see BatteryLife. The load output is short circuit proof. Some loads (especially inverters) can best be connected directly to the battery, and the inverter remote control connected to the load output. A special interface cable may be needed, please see the manual.
BatteryLife: intelligent battery management
When a solar charge controller is not able to recharge the battery to its full capacity within one day, the result is often that the battery will be continually be cycled between a “partially charged” state and the “end of discharge” state. This mode of operation (no regular full recharge) will destroy a lead-acid battery within weeks or months.
The BatteryLife algorithm will monitor the state of charge of the battery and, if needed, day by day slightly increase the load disconnect level (i. e. disconnect the load earlier) until the harvested solar energy is sufficient to recharge the battery to nearly the full 100%. From that point onwards the load disconnect level will be modulated so that a nearly 100% recharge is achieved about once every week.
Real-time data display options
Apple and Android smartphones, tablets and other devices: see the VE.Direct to Bluetooth low energy dongle
ColorControl panel
(67001-325A)
SKU | 67001-325A |
Model # | BlueSolar-MPPT75/10 |
Brand | Victron Energy |
