Brand New

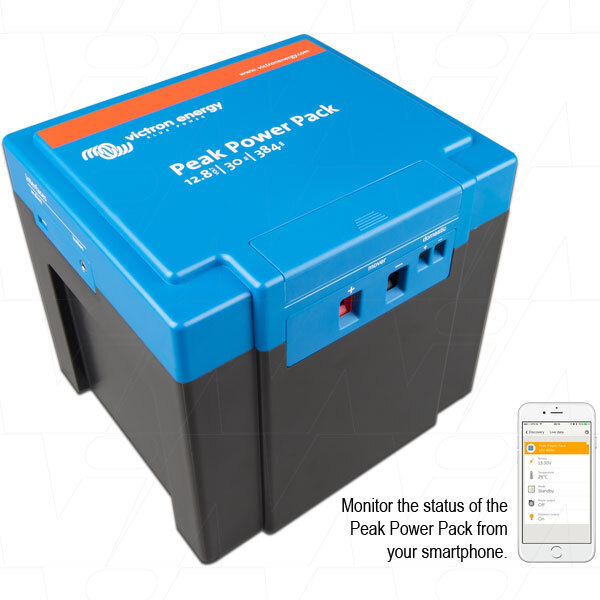

 High rate 12.8V 30Ah Lithium Iron Phosphate (LiFePO4) battery module features high rate discharge output while also having built-in protection against excessive battery discharge.

Perfect for use in "movers" - caravan manoeuvring systems - and other energy-intensive applications. Suitable for caravans above 1000kg. For lighter caravans see 8Ah Victron model.

Features:

Lightweight and easy to install. Ideal for mobile applications.
Effective protection against improper use. Ideal for solar power and other applications where excessive discharge might quickly cause damage to lead acid batteries.
Dual output:
Output 1: high capacity output for caravan movers
Output 2: low capacity output for domestic low DC loads, eg: lighting, audio/video/ pumps, fridges (NOT available on 8Ah model)
Dual input:
Input 1 “car/solar”: charging while driving or charging with a solar panel. Equipped with voltage and current control for safe charging. In fact, any source of electric power can be connected to this input (e.g. a dynamo or a battery charger), as long as 11V < Vin < 25V. The current limitation is automatically set to a safe value.
Input 2 “adapter”: the adapter supplied can be connected to this input. Battery charging current: 3A, and suitable for 110/230V power supply.
Storage mode - Reduces power consumption to almost zero. Prevents damage by excessive discharge of the battery during storage.
Remote control with status indicator. Push button (supplied) with a dual-colour LED status indicator:
Short push of the button: high capacity output activated for 30 minutes (mover applications), LED red.
Hold down for 2 seconds: high capacity output always activated, LED red, slow flashing.
Hold down for 5 seconds: storage mode, LED blue, flashes 10 times.
Battery is charged via input 1, LED blue, slow flashing.
Battery fully charged, LED blue.
Overload or overheating, LED red, flashes.
VE.Direct port: can be connected to a PC or smartphone ('VE.Direct to USB' or 'VE.Direct Bluetooth Smart dongle' required).
Simple operation:
Output 1: on / 30-minute timer / off
Output 2: on/off
Input 1: on/off
Scanning:
Battery voltage
Temperature and alarms

Specifications:
Output 1 (mover):
Continuous output current: 150A
Maximum output current (10 seconds): 200A
Short-circuit current: 300A
Safety features: Overload, short-circuiting, temperature, excessive discharge
Maximum charging current: 15A (no protection)
Recommended charging voltage: 14V (no protection)
Maximum charging voltage: 14.2V (no protection)
Maximum cable diameter: 16mm² (screw clamps)
Output 2 (domestic):
Continuous output current: 30A
Maximum output current (10 seconds): 50A
Short-circuit current: 80A
Safety features: Overload, short-circuiting, temperature, excessive discharge
Maximum charging current: 10A (no protection)
Recommended charging voltage: 14V (no protection)
Maximum charging voltage: 14.2V (no protection)
Maximum cable diameter: 6mm² (screw clamps)
Input 1 (car/solar):
Input voltage range: 11 V < Vin < 25 V
Current limitation: 7A
Input 2 (adaptor):
Output voltage: 15V
Output current: 3A
Input voltage: 110 / 230 V 50 / 60 Hz
Temperature (charging and discharging not possible outside the given temperature range):
Charge: 0°C to +40ºC
Discharge: -20°C to +40ºC
Storage: -20°C to +40ºC
