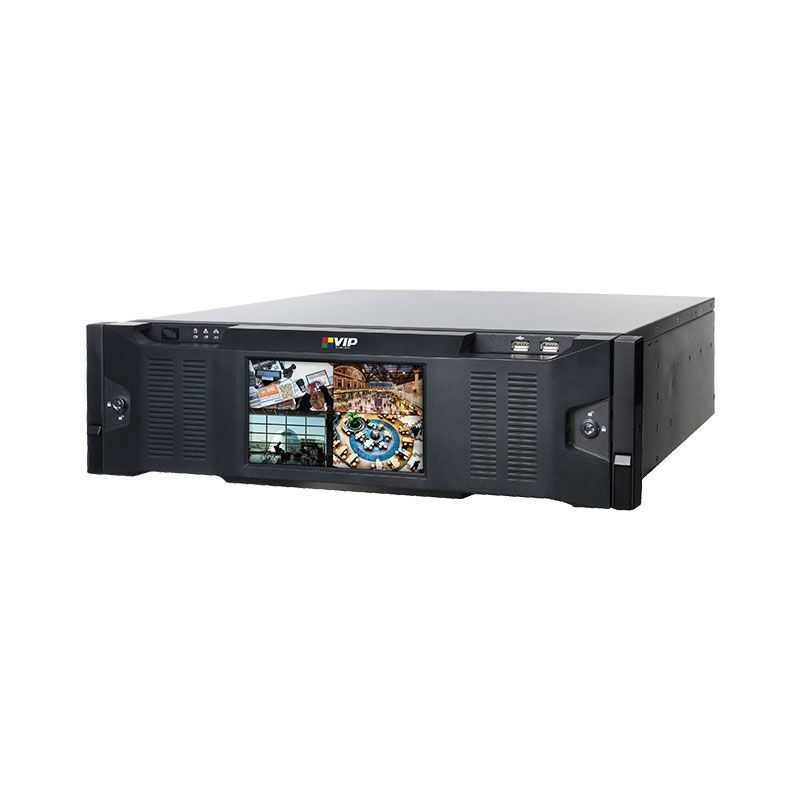

VIP Vision General System Management Centre NVR-GSMC2

Built to handle large systems in a cost-effective manner, the NVR-GSMC2 is a management centre preloaded with a GUI for your surveillance system and 1,000 preactivated video channels. Organise and manage IP surveillance, access control, video intercoms, AI functionality and much more in this scalable, all-in-one solution.

System can be cascaded up to 5 sub-servers (get system redundancy and additional video devices, access control, alarm controllers and video intercom connectivity).

Features

• Centralised CCTV, access control & intercom management
• Set different access rights hierarchies per user/group
• Manage access w/ card reader & fingerprint scan
• Event & alarm logging, searching, timestamp & overlay
• Create impressive live video walls displays
• Intelligent functions + ANPR, AI & face recognition
• PTZ control/tour, audio, alarm, etc.
• Manual and automatic system backup/restore
• Built-in 2TB HDD - supports 15x 3.5” HDDs for storage
• High reliability with hot standby & hot swapping

Specifications

• Main Processor;64 bit 4 core CPU (CORE-I5-6600)
• Operating System;Linux
• System Disk;Seagate 7200 RPM Enterprise Class HDD 2 TB
• Motherboard;Embedded board (7 × 24 operation)
• Hard Disk Compatibility;SAS/SATA disk
• Hot Swap;Supports hot swap & online replacement
• Power Redundancy;1+1 redundant power
• Memory;16GB

Interface

• Network Port;4 Ethernet Ports (100/1000Mbps )
• USB Port;Front panel: 2 × USB 2.0, Rear panel: 2 × USB 3.0
• HDMI;3 HDMI
• VGA;1 VGA, as network config
• HDD Installation;Built-in 1× 2T HDD disk (2.5”) for system Support 15HDD disks (3.5”) for Video & Picture storage (max 16TB per HDD, 200TB per server)

Environment

• Power;315W (max), 210W (stable)
• Operating Environment;0°C~40°C / 10%~80% RH
• Storage Environment;-20°C~70°C / 5%~90% RH
• Weight (Without Package);19.1kg
• Dimension;444.8mm × 133.2mm × 522.2mm
• Installation Method;Standard 19” rack installation
• Secondary Development;Platform SDK provided

Total Devices

• Sub Servers;Up to 5 sub-servers
• Included Device License;1,000 devices (single server) / 5,000 devices (multiple servers)
• Maximum Device Licences;2,000 devices (single server) / 6,000 devices (multiple servers)

Client

• PC Client & DSS Mobile Users;50 Online, 200 Total
• Roles;100 (32 per user)
• DSS Mobile for VDP;500 Online, 5000 Total

Devices

• Video;500 devices, 1000 Channels (single server) / 2500 devices, 5000 Channels (multiple servers)
• ONVIF;500 devices, 1000 Channels (single server) / 2500 devices, 5000 Channels (multiple servers)
• P2P;32 devices
• Access Control;200 devices, 500 Doors (single server) / 600 devices, 1500 Doors (multiple servers)
• Video Intercom Devices;2000 devices
• Alarm Controllers;64 devices, 640 zones (single server) / 320 devices, 3200 zones (multiple servers)
• Facial Recognition Channels;20 devices, 100 channels (single server) / 100 channels, 500 channels (multiple servers)
• ANPR Camera;100 channels (single server) / 500 channels (multiple servers)
• Alarm Host;100 channels (single server) / 500 channels (multiple servers)
• Video Metadata;100 channels (single server) / 500 channels (multiple servers)

Intelligent Analyses

• People Counting & Heat Map;32 channels (single server) / 160 channels (multiple servers)

Media Transmission Server

• Total Bandwidth Incoming / Outgoing / Storage;600 Mbps (single server) / 3000 Mbps (multiple servers)
• Video Bandwidth Incoming / Outgoing / Storage;600 Mbps (single server) / 3000 Mbps (multiple servers)
• Picture Bandwidth Incoming / Outgoing / Storage;100 channels (single server) / 500 channels (multiple servers)

Record

• Maximum Capacity per Storage Server (local & IPSAN);200 TB (single server) / 1PB (multiple servers)
• Prerecording Bandwidth for Alarm Recordings;400 Mbps (single server) / 2,000 Mbps
• General Recording Plans;3,000
• Motion Detection Recording Plans;3,000
• Video Retrieval Plans;3,000

Event

• Event Reception (w/o Picture);240 per Second (single server) / 480 per second (multiple servers)
• Event Reception (w/ Picture);100 per second (single server)
• Access Control Events;240 per Second (single server) / 480 per second (multiple servers)
• Event Sources for Event Rules;3,000
• Combined Event Rules;100
• Combined Events;200

Emap

• Hierarchy of Raster Map;8 Hierarchies
• Raster Map Total;256
• Map Size of Raster Map;Up to 15MB
• Resources per Raster Map;300

Personnel Management

• Persons & Vehicle Groups;999
• Group Levels;10
• Persons;100,000
• Cards;200,000
• Faces;100,000
• Fingerprints;200,000
• Vehicles;20,000

Parking Lot Management

• Total Vehicles;20,000
• Total Vehicle Groups;16 groups
• Parking Lots;8
• Entrances & Exits;16

Watchlists

• Total Faces;100,000
• Face Watch List;50
• Faces Per Watch List;50,000
• Vehicle Watch Lists;16
• Vehicles per Vehicle Watch List;20,000

People Counting

• Total Groups;8
• Rules Per Group;20

Access Control

• Door Access Rules For People;10,000 people (1 password, 2 face images, 3 fingerprints & 5 cards for each person)
• Zones;256
• Door Access rules,200
• Public Passwords;1,500

Visitor

• Appointments in Progress;10,000

Notification Center

• Notification Center Message;1,000

Data Storage

• Features;Face Recognition / ANPR / Metadata / People Counting / Heat Map / Video Intercom / Access Controller / Operation Logs / Service Logs (5,000,000 each)
• Warranty (Years);4
