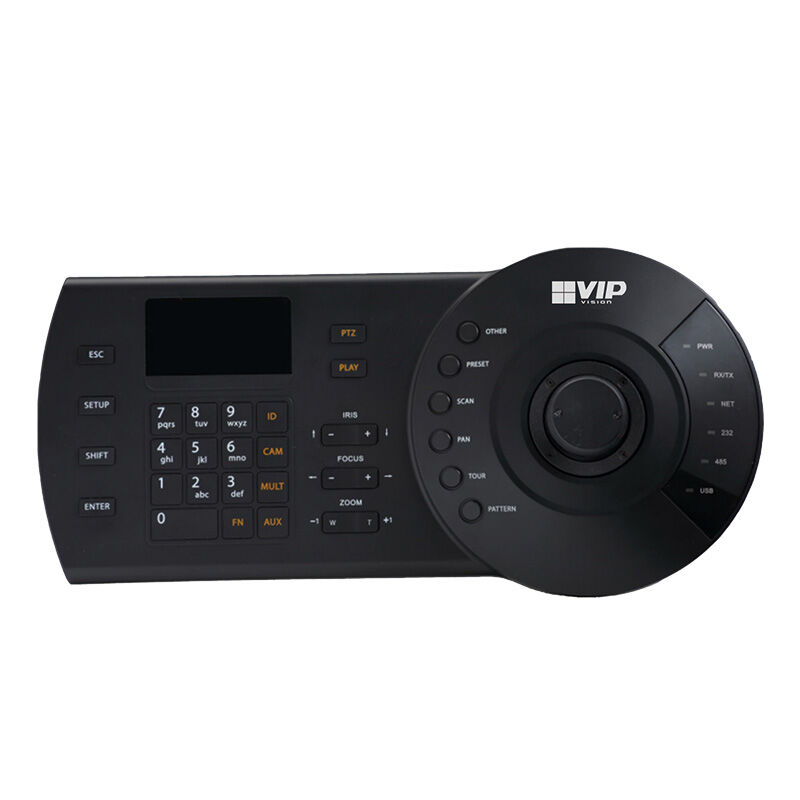

The IP PTZ control keyboard is compatible with all VIP Vision, Securview and Watchguard PTZ cameras over a network.

Features:

  • Control a variety of PTZ cameras and DVRs with this PTZ keyboard
  • Features RS485, RS422 (reserved), USB, RS232 & RJ45 connections
  • Three dimensional joystick control of PTZ functions
  • Preset Position, Auto Scan, Auto Pan, Auto Tour & Pattern Auxiliary Functions
  • 75.2mm×33.85mm on-keyboard LCD with user menu and operation/procedure tips
  • Interfaces to PTZ domes and DVR/NVR via:
  • Network mode: Control via RJ45 using IP Address/Port/Protocol
  • Direct mode: Control via 1 RS232/2 RS485 using protocols below:
  • DVR: DH2 / Camera protocols: DH-SD1/PELCO-D/PELCO-P
  • Connect to SmartPSS or DSS platform via USB

Specifications

  • Atmosphere Pressure : 86kpa~106kpa
  • Dimension (W×D×H) : 330mm×139mm×53mm (not including joystick) 330mm×139mm×103mm (including joystick)
  • Direct Interface : 1 RS232/2 RS485
  • Joystick : 3-axis, vector-solving, with twisting, return to-center head
  • LCD Display : 75.2mm x 33.85mm
  • Network Interface : RJ45
  • Power Consumption : 5W
  • Power Supply : input 100V~240V 50Hz / 60Hz,output DC12V/1000mA
  • Working Humidity : 10%~90%
  • Working Temperature : -10℃~+55℃



(VSIPPTZKB3)

SKU VSIPPTZKB3
Model # VSIPPTZKB3
Brand VIP Vision
