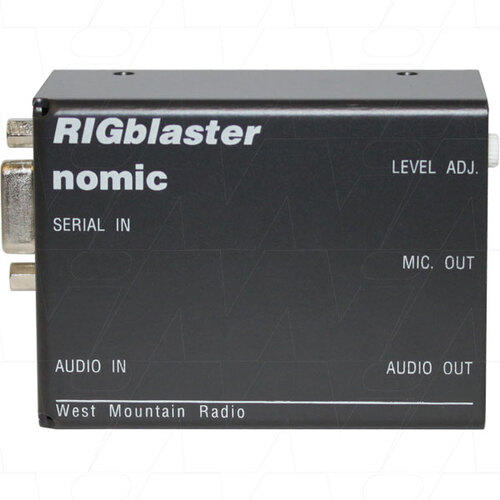

The RIGblaster NOMIC is a small, simple, rugged and inexpensive West Mountain Radio sound card interface perfect for portable or temporary setups.

Features:

• Compatible with All Manufacturers' Radios
  • Can be used with almost any make or model microphone and most model radios no matter what brand
  • Any radio that has a 8 pin round screw on microphone connector
  • Any radio that has an RJ45 modular telephone style connector
  • Any radio with RJ25 6 wire microphone connector with the purchase of an optional FT100 style 6 wire modular mic. cable
  • Any radio with 4 pin round microphone connector with the purchase of a optional 4 pin mic cable
• Computer Interface
  • Supplied with both a standard DB9 RS232 serial cable and USB cable interface (supported for Mac (OS9,10), Linux, Windows (98SE - Windows 8)! May be used old or new computers with your choice of USB or RS232 DB9 serial
  • No external power supply necessary so it is great for portable or QRP operation
  • Great simple and inexpensive choice for a dedicated Internet link with the EchoLink System
• Mic / Keying / Audio
  • Properly matched and RF suppressed audio for your radio
  • Fully isolated transmit audio and PTT keying, unlike other interfaces that have little or no isolation
  • Easier hookup thanks to our fully isolated audio and computer keying circuits
  • Positive and fully automatic PTT control supported almost 100 ham programs, no illegal or spurious signals due to built in sound card VOX operation

Specifications:

• Frequency response sound card input: 100 Hz - 15 kHz, + - 1dB
• Distortion sound card input: Less than 0.1 % THD @ 1kHz
• Input impedance (from sound card): 600 ohms resistive, minimum
• Sound card level adjustment range: -34 dB to > -120 dB
• PTT compatibility: Transistor logic only, tube amps not supported. Positive pull down .15 V min. @ 2 ma. max
• Serial interface (DB9F connector): Standard RS232
• RS232 Pin Assignments (DB9 PC signal set)
  • Pin 4 Data Terminal Ready (PTT control)
  • Pin 5 Signal Ground (isolated digital common)
  • Pin 7 Request To Send (PTT control)

The RIGblaster NOMIC comes with:

• RIGblaster NOMIC
• 1.0m 8 Pin Round Circular Mic Cable
• 1.0m RJ45 Mic Cable
• USB to RS232 Male Adapter
• 1.8m DB9M to DB9F Serial Cable
• (2) 1/8" Audio Cables, 1.8m
• Owner's Manual
• DVD
• Accessory Kit: (5) White Jumpers
