Overview

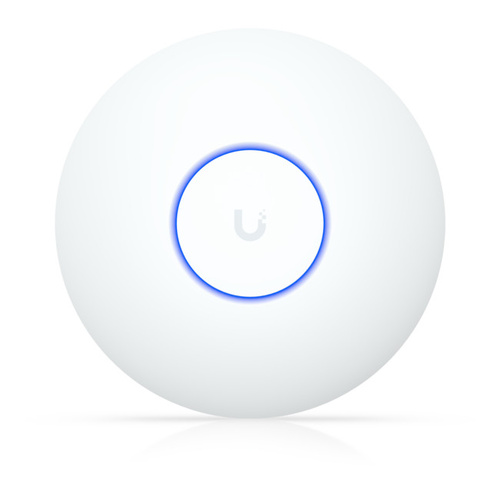

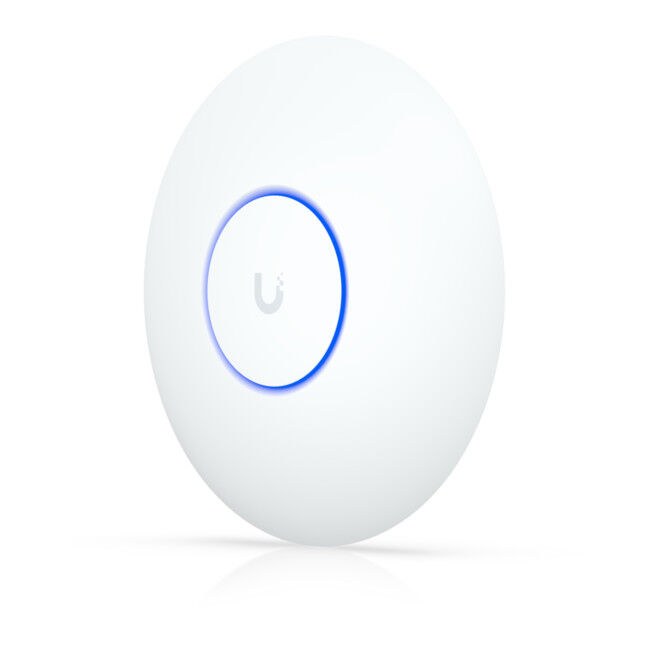

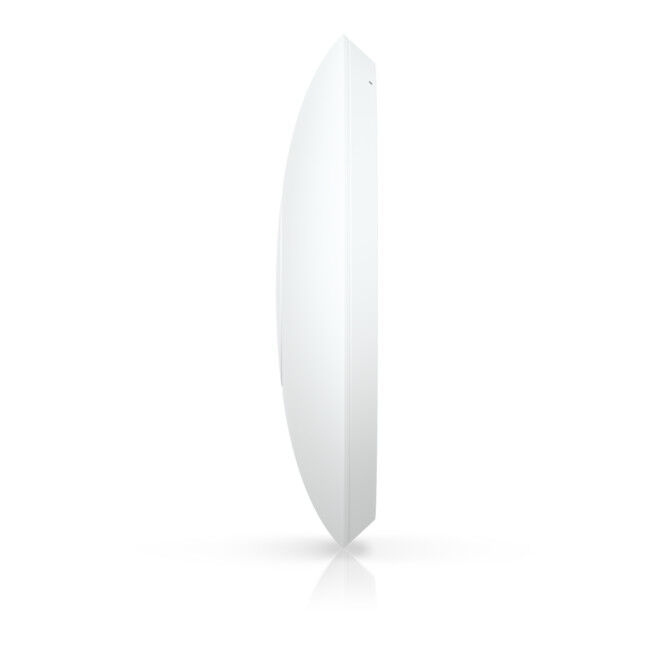

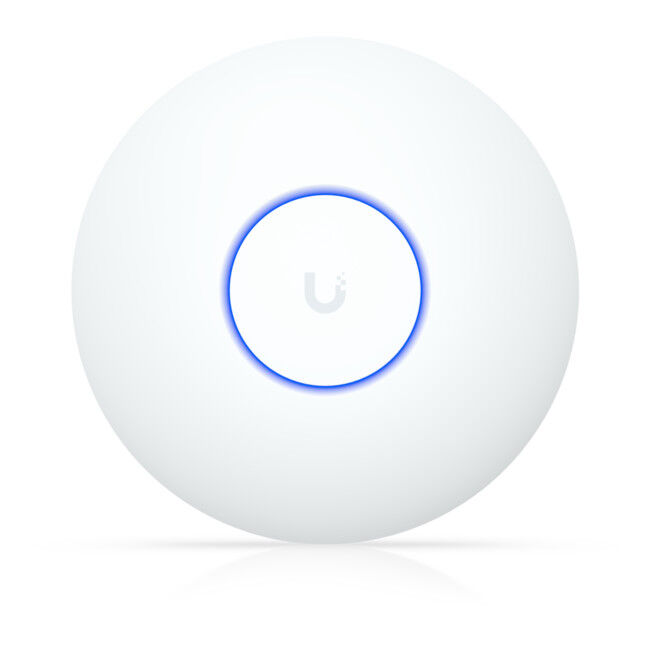

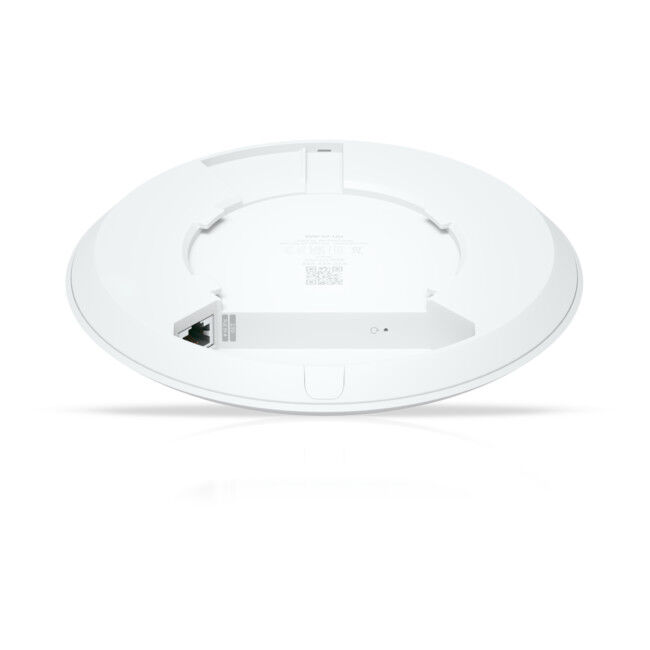

UniFi U7 LITE Compact, Ceiling-mounted Wi-Fi 7 AP

With 4 spatial streams and 2.5 GbE uplink

  • Wi-Fi 7 4 spatial streams
  • 115m² (1,250ft²) coverage
  • 200+ connected devices
  • Powered using PoE
  • 2.5 GbE uplink

Designed for Massive Scale

These latest U7 APs are built for large-scale deployments, all powered by Ubiquti's continuously evolving UniFi software engine. Ubiquiti are committed to bringing you the best in network management and performance, and these new devices are just the beginning.


Wi-Fi 7 Performance

The U7 Lite is an ultra-compact, highly capable WiFi 7 access point. This powerhouse comes in at an incredible price point, making top-tier connectivity more accessible than ever before.


Advanced Features

Just like Ubiquiti's other WiFi 7 access points, the U7 Lite is fully equipped with advanced WiFi 7 features like preamble puncturing to avoid 5 GHz interference and MLO for ultra low client latency.


Optimised Coverage

The U7 Lite is designed to support a high number of simultaneous client connections without compromising performance. Its advanced Wi-Fi 7 technology ensures wider coverage and stronger signal stability, providing seamless connectivity across homes, offices, and small businesses

Specifications

SPECIFICATIONS


OVERVIEWWi-Fi StandardWi-Fi 7
Spatial Streams4
Coverage Area115m² (1,250ft²)
Max. Client Count200+
Uplink2.5 GbE
Power MethodPoE
PERFORMANCEMIMO
  • 5 GHz: 2×2 (DL/UL MU-MIMO)
  • 2.4 GHz: 2×2 (DL/UL MU-MIMO)
Max. Data Rate
  • 5 GHz: 4.3 Gbps (BW240)
  • 2.4 GHz: 688 Mbps (BW40)
Antenna Gain
  • 5 GHz: 5 dBi
  • 2.4 GHz: 4 dBi
Max. TX Power
  • 5 GHz: 24 dBm
  • 2.4 GHz: 23 dBm
Max. BSSIDs8 per Radio
Supported Data Rates
  • 802.11be (Wi-Fi 7): 7.3 Mbps to 4.3 Gbps (MCS0 – MCS13 NSS1/2, EHT 20/40/80/160/240)
  • 802.11ax (Wi-Fi 6): 7.3 Mbps to 2.4 Gbps (MCS0 – MCS11 NSS1/2, HE 20/40/80/160)
  • 802.11ac (Wi-Fi 5): 6.5 Mbps to 1.7 Gbps (MCS0 – MCS9 NSS1/2, VHT 20/40/80/160)
  • 802.11n: 6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40)
FEATURESWireless MeshingYes
Band SteeringYes
802.11v BSS Transition ManagementYes
802.11r Fast RoamingYes
802.11k Radio Resource Management (RRM)Yes
Advanced Radio ManagementYes
Passpoint (Hotspot 2.0)Yes
CAPTIVE HOTSPOT PORTALCustom Branding Landing PageYes
Voucher AuthenticationYes
Payment-Based AuthenticationYes
External Portal Server SupportYes
Password AuthenticationYes
Guest Network IsolationYes
Private Pre-Shared Key (PPSK)Yes
Wi-Fi Speed LimitingYes
Client Device IsolationYes
Wi-Fi SchedulesYes
RADIUS over TLS (RadSec)Yes
Dynamic RADIUS-assigned VLANYes
GENERALDimensionsØ171.5mm × 33mm (Ø6.8″ × 1.3″)
MountingCeiling, Wall (Lite Mount Included)
Max. Power Consumption13W
Networking Interface1 × 2.5 GbE RJ45 port
ManagementEthernet
LEDsSystem: White/Blue
Ambient Operating Humidity5% to 95% non-condensing
SOFTWAREApplication Requirements
  • UniFi Network Version 9.0.114 and later
  • UniFi OS iOS™ version 10.20.2 and later
  • Android™ version 10.21.7 and later
CertificationsCE, FCC, IC

(U7-Lite)

12
SKU U7-Lite
Model # U7-Lite
Barcode # 810084698747
