Overview

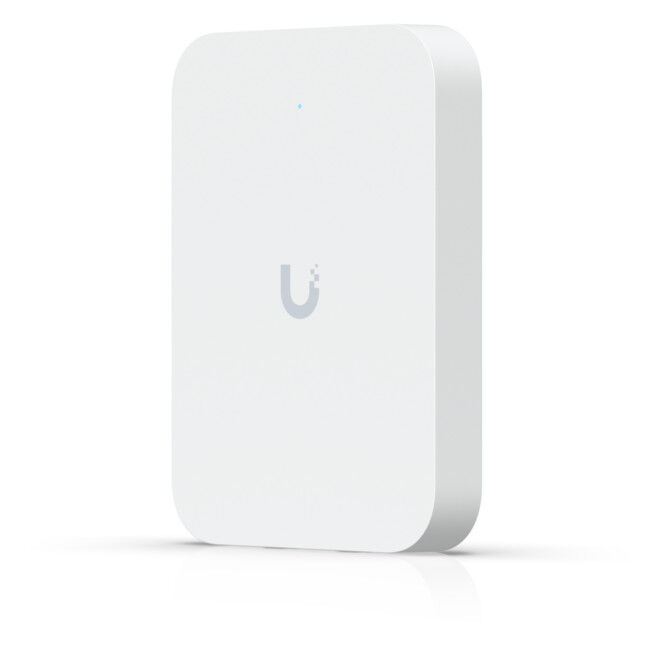

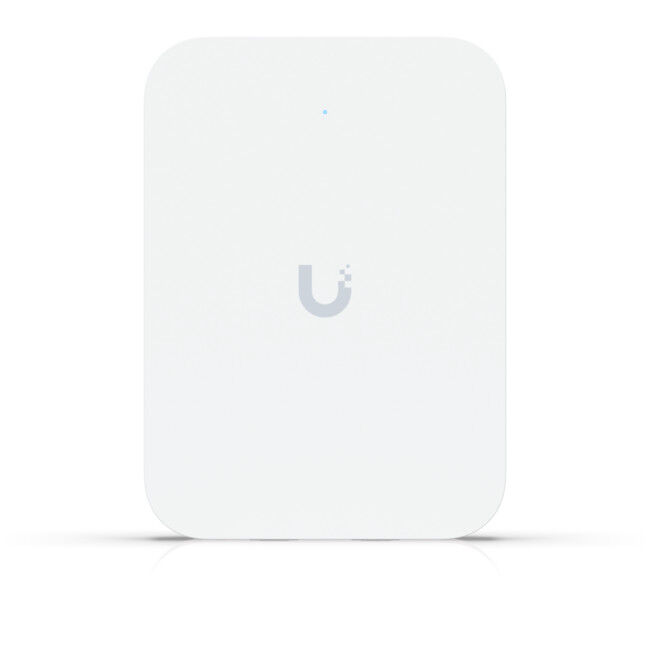

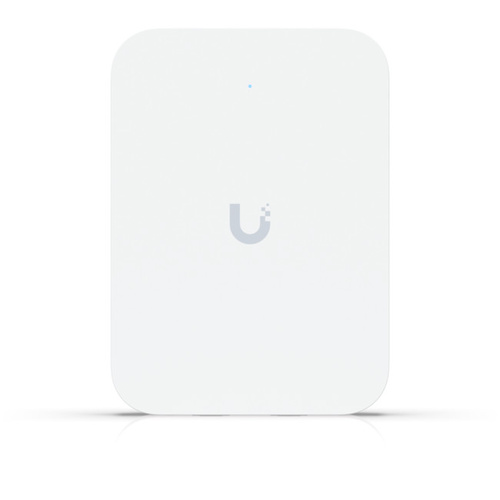

UniFi U7 IW Compact, Wall Mounted Wi-Fi 7 AP

With 4 spatial streams and 2.5 GbE uplink

  • Wi-Fi 7 4 spatial streams
  • 115m² (1,250ft²) coverage
  • 200+ connected devices
  • Powered using PoE
  • 2.5 GbE uplink

Designed for Massive Scale

These latest U7 APs are built for large-scale deployments, all powered by Ubiquti's continuously evolving UniFi software engine. Ubiquiti are committed to bringing you the best in network management and performance, and these new devices are just the beginning.


Wi-Fi 7 Performance

The U7 In-Wall access point leverages the latest Wi-Fi 7 technology, delivering enhanced wireless speeds and reduced latency. Its discreet in-wall form factor seamlessly integrates into any environment.


Discreet, Powerful Wi-Fi

A sleek, wall-optimised Wi-Fi 7 AP crafted for private room deployments in hotels, offices, and multi-unit residences. It’s designed to blend seamlessly into any space while delivering the next level of wireless performance.


PoE Passthrough

Featuring PoE passthrough capabilities, the U7 In-Wall can power additional devices such as VoIP phones or other network equipment directly through its integrated switch. This reduces the need for extra power sources and simplifies your workspace setup.

Specifications

SPECIFICATIONS


OVERVIEWWi-Fi StandardWi-Fi 7
Spatial Streams4
Coverage Area115m² (1,250ft²)
Max. Client Count200+
Uplink2.5 GbE
MountingWall (Metal Wall Mount Included)
Power MethodPoE, PoE+ (Required for PoE output)
PERFORMANCEMIMO
  • 5 GHz: 2×2 (DL/UL MU-MIMO)
  • 2.4 GHz: 2×2 (DL/UL MU-MIMO)
Max. Data Rate
  • 5 GHz: 4.3 Gbps (BW240)
  • 2.4 GHz: 688 Mbps (BW40)
Antenna Gain
  • 5 GHz: 8 dBi
  • 2.4 GHz: 4 dBi
Max. TX Power
  • 5 GHz: 24 dBm
  • 2.4 GHz: 23 dBm
Max. BSSIDs8 per Radio
Supported Data Rates
  • 802.11be (Wi-Fi 7): 7.3 Mbps to 4.3 Gbps (MCS0 – MCS13 NSS1/2, EHT 20/40/80/160/240)
  • 802.11ax (Wi-Fi 6): 7.3 Mbps to 2.4 Gbps (MCS0 – MCS11 NSS1/2, HE 20/40/80/160)
  • 802.11ac (Wi-Fi 5): 6.5 Mbps to 1.7 Gbps (MCS0 – MCS9 NSS1/2, VHT 20/40/80/160)
  • 802.11n: 6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40)
802.11r Fast RoamingYes
802.11k Radio Resource Management (RRM)Yes
Advanced Radio ManagementYes
Passpoint (Hotspot 2.0)Yes
CAPTIVE HOTSPOT PORTALCustom Branding Landing PageYes
Voucher AuthenticationYes
Payment-Based AuthenticationYes
External Portal Server SupportYes
Password AuthenticationYes
Guest Network IsolationYes
Private Pre-Shared Key (PPSK)Yes
Wi-Fi Speed LimitingYes
Client Device IsolationYes
Wi-Fi SchedulesYes
RADIUS over TLS (RadSec)Yes
Dynamic RADIUS-assigned VLANYes
HARDWAREMax. Power Consumption13W (Excluding PoE output)
Supported Voltage Range42.5V~57V DC
Networking Interface3 × 2.5 GbE RJ45 ports
ManagementEthernet
Built-In Switch
  • 1 × PoE+ input
  • 1 × PoE output
Enclosure MaterialPolycarbonate, aluminium alloy
Mount MaterialAluminium alloy
LEDsSystem: White/Blue
Channel BandwidthHT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240 (MHz)

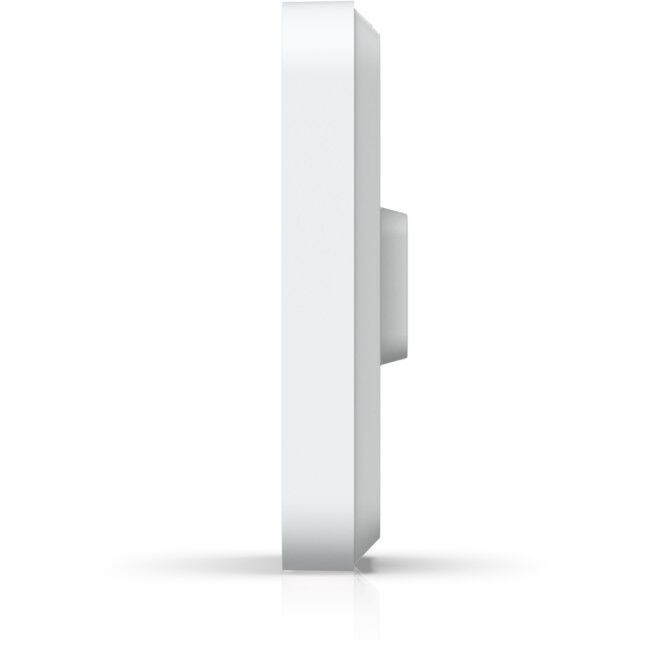

GENERALDimensions137mm × 98.7mm × 30.2mm (5.4″ × 3.9″ × 1.2″)
Weight400g (14.1oz)
Ambient Operating Temperature−30°C to 40°C (−22°F to 104°F)
Ambient Operating Humidity5% to 95% non-condensing
SOFTWAREApplication Requirements
  • UniFi Network Version 9.0.114 and later
  • UniFi OS iOS™ Version 10.20.2 and later
  • Android™ Version 10.21.7 and later
CertificationsCE, FCC, IC
NDAA CompliantYes

(U7-IW)

12
SKU U7-IW
Model # U7-IW
Barcode # 810084698754
