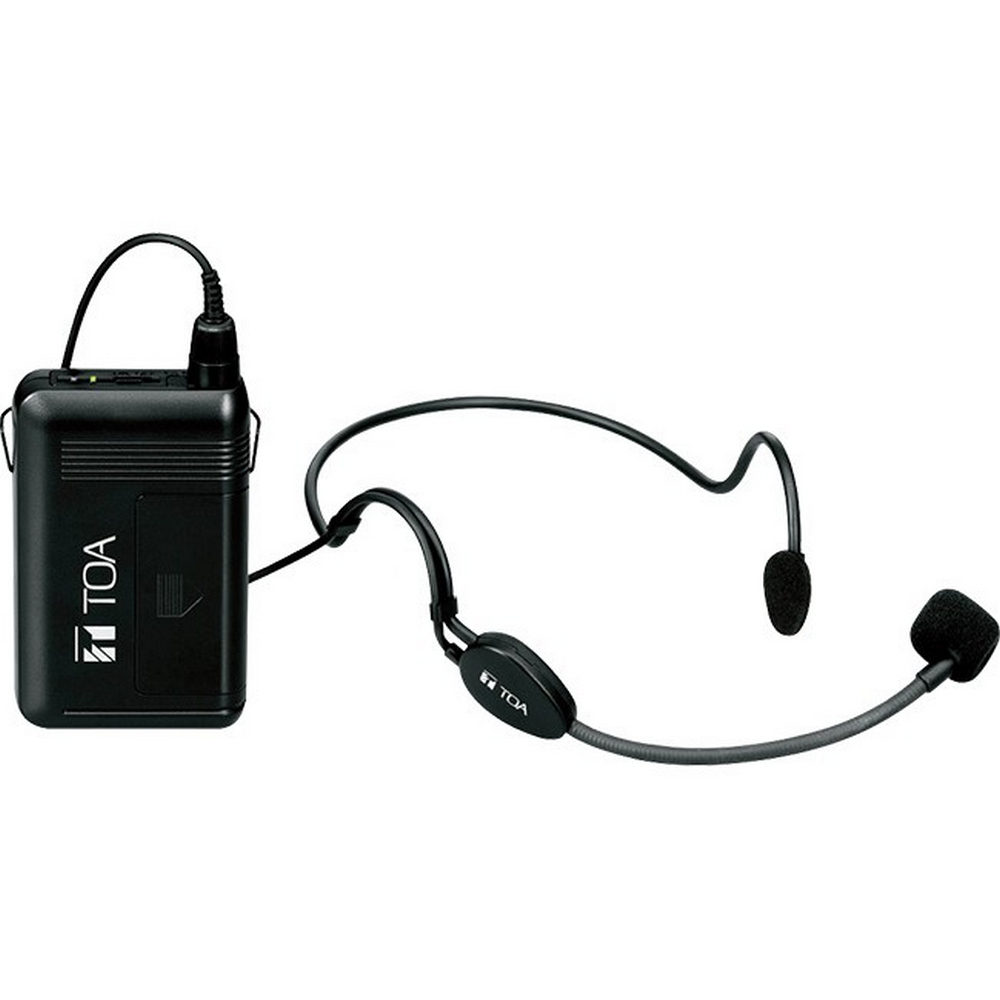

TOA WM5325H 636 - 666 MHz F01 Band Wireless Headset Microphone

WM5325H WIRELESS HEADSET MICROPHONE TOA

The WM-5325H wireless transmitter has been manufactured for use with a UHF system. It is for use in speech reinforcement applications. Thanks to the PLL-synthesizer system, 64 different operating frequencies are made available. A high output power ensures stable radiosignal transmission.

All Toa stock we have is F01 band (636-666MHz)
For other regions there is also H01 band (578-606MHz) Only for areas where F01 (636-666MHZ) wireless models can’t be used, will be able to order in H01 frequency models (578-606MHz) as indent item!

Features:

64 selectable channels
Maximum input level: -14 dB to -29 dB
Built-in circuitry minimizes ambient noise effects,
WB-2000 rechargeable battery or single AA battery operation for compact and lightweight body
Connector for 3.5 mini-plugs
Built-in antenna

Specs:

WM-5325H withHeadset microphone WH-4000H

Modulation	Frequency modulation
Frequency Range	636 - 666 MHz, UHF
Channel Selectable	64 channels (the number of channels may differ from country to country)
RF Carrier Power	50 mW or less
Tone Frequency	32.768 kHz
Oscillator	PLL synthesized
Maximum Input Level	-14 dB to -29 dB (*1) (Audio level control: Min. to Max.)
Maximum Deviation	±40 kHz
Audio Frequency Response	100 Hz - 15 kHz
Battery	WB-2000 (WB-2000-2 contains 2 pieces) rechargeable battery (option) or AA alkaline dry cell battery
Battery Life	Approx. 13 h (when the WB-2000 rechargeable battery is used) Approx. 10 h (when the alkaline battery is used)
Indicator	Power/Battery lamps
Antenna	Built-in type
Connector	φ3.5 mm (φ0.14") mini plug
Operating Temperature	-10 ℃ to +50 ℃ (14 ゜F to 122 ゜F) (except battery)
Operating Humidity	30 % to 85 %RH (no condensation)
Finish	Resin, coating
Dimensions	62 (W) × 102.5 (H) × 23 (D) mm(2.44" × 4.04" × 0.91")
Weight	90 g (0.2 lb) (with battery)
Accessory	Screw driver …1, Storage case …1, Neck strap …1
Option	Headset microphone:: WH-4000H
