SHURE Wireless Lapel Mic System 662-686Mhz include Diversity Receiver Transmitter

BLX Wireless Systems

Precision built and available in a variety of handheld, lavalier, instrument and headset configurations, BLX is the most accessible way to own the stage.

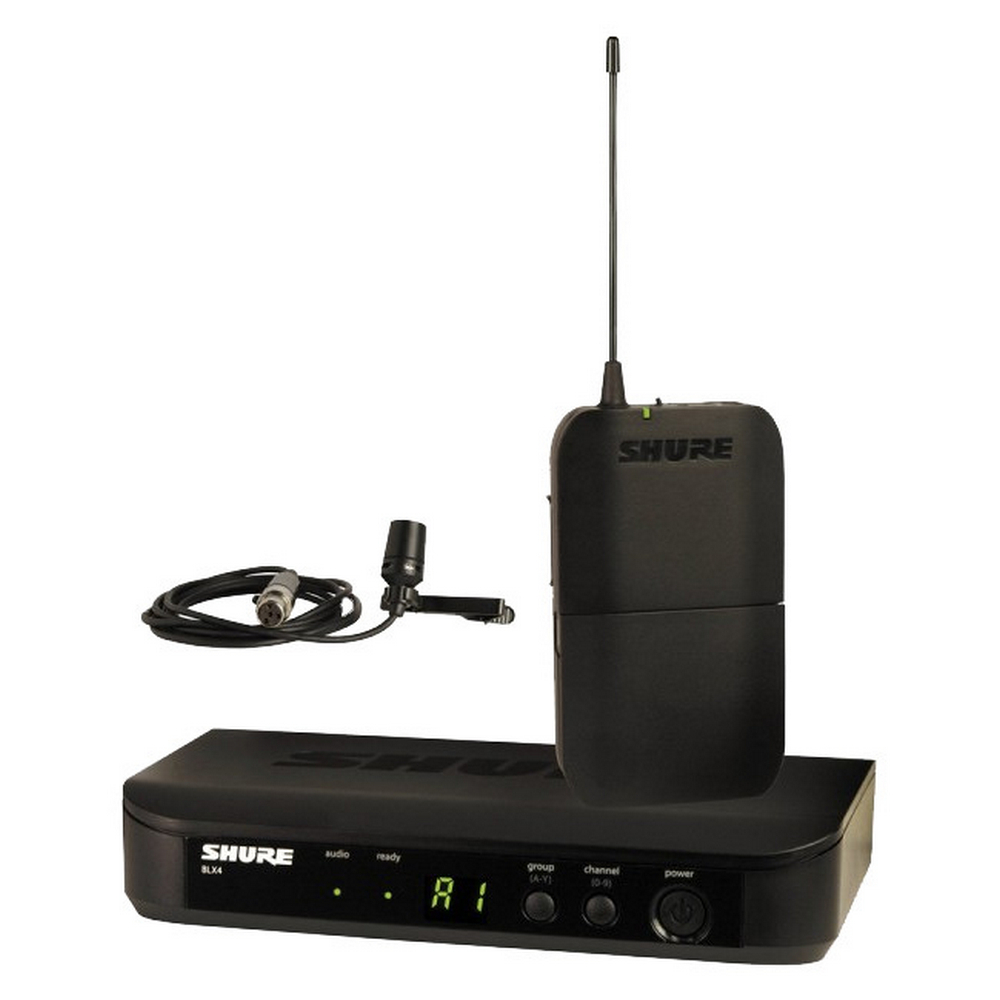

BLX single microphone system with BLX1 body pack andCVL Lavalier microphone.

Kit Includes

1 x BLX4 Diversity Receiver,
1 x BLX1 Bodypack Transmitter
1 x CVL Centraverse Lavalier Condenser Microphone

The BLX4 single channel wireless receiver is a durable receiver with simple set-up, intuitive controls and microprocessor-controlled internal antenna diversity

Wireless "diversity" receivers feature two separate antennas for consistent signal reception.

One-touch QuickScan frequency selection quickly locates the best frequency, enabling simple set-up.

Features

One-touch QuickScan frequency selection quickly locates the best open frequency (in case of interference)
Up to 12 compatible systems per frequency band (region-dependent)
XLR and 1/4" output connectors
Microprocessor-controlled internal antenna diversity
Two-color audio status indicator LED
- Green: Normal audio levels
- Red: Excessive audio levels (overload/clipping

Specifications

Output Impedance	XLR connector: 200Ω , 6.35 mm (1/4") connector: 50Ω
Dimensions:	40 mm X 188 mm X 103 mm (H x W x D)
RF Output Power:	10mW
RF Sensitivity	−105 dBm for 12 dB SINAD, typical
Weight:	241 g (8.5 oz.)
Audio Output Level	Ref. ±33 kHz deviation with 1 kHz tone, XLR connector: −27 dBV (into 100 kΩ load), 6.35 mm (1/4") connector: −13 dBV (into 100 kΩ load)

Housing	Molded ABS
Power Requirements	12-15 V DC @ 160 mA , supplied by external powersupply (tip positive)

NOTE:

SHR-BLX14CVL-M17 Operates inFreq range 662-686MHz

BLX1 Bodypack Transmitter

The BLX1 bodypack has a lightweight and durable design. Ergonomically designed to fit comfortably in hand, with adjustable gain control.

For use with BLX Wireless systems

Features

Up to 14 hours of continuous use with 2 AA batteries(included)
Up to 300 ft (100 m) transmission radius
Quick and easy receiver frequency matching
TQG connection for use with Shure lavalier, headset,earset and instrument microphones and guitar cables
Toggle on/off switch
Adjustable gain control of 26dB (+10 to -16dB)
Lightweight, rugged construction

Specifications

Transmitter Type:	Bodypack
Dimensions:	110 mm x 64 mm x 21 mm (H x W x D)
RF Output Power:	10mW
Battery, endurance:	8 up to 14hr with alkaline battery
Weight:	75 g (2.6 oz.), without batteries
Housing	Moulded ABS

Audio Input Level

gain max -16 dBV maximum gain

min (0 dB) +10 dBV maximum

Gain Adjustment Range

26 dB

CVL Centraverse Lavalier Condenser Microphone

Centraverse clip-on lavalier condenser microphone for Shure wireless systems

Best suited to: Speech

Overview

The Centraverse Lavalier (CVL) offers convenience and performance in an easy-to-use, clip-on cardioid condenser microphone that features simple, no-nonsense setup made for the presenting professional.

Precision-engineered for years of use in any Shure wireless system, its compact size is ideal for presenting situations where visibility is a major concern.

The unidirectional (cardioid) pickup pattern rejects unwanted noise for superior source quality and vocal reproduction.
Features

Miniature clip-on lavalier microphone for low visibilty
Permanently charged electret condenser element for clear vocal reproduction
Unidirectional (cardioid) polar pattern rejects unwanted noise for improved sound quality
Included tie clip allows hands-free use perfect for presenters
TA4F (TQG) connector seamlessly integrates with Shurewireless bodypack systems
Included windscreen reduces plosive, wind and breath sounds
Tailored frequency response optimized for public speaking and presentation
Legendary Shure precision engineering for durability and performance

Specifications

Type	Electret Condenser
Frequency Response	50 to 20,000 Hz
Polar Pattern	Unidirectional (Cardioid)
Output Impedance @ 1 kHz	typical 600 O
Audio Output Level	-43.5 dBV/Pa
Signal-To-Noise Ratio[1] @ 1 kHz	72 dB
Maximum SPL[1] 1000 O load, @ 3% THD	139.0 dB
Dynamic Range[1]@ 1 kHz, 1000 O load	117.0 dB
Equivalent Output Noise[1] Typical, A-Weighted	22 dB
Power Requirements	+5 V DC (nominal), 10 V maximum (DC bias)
Polarity	Positive pressure on diaphragm produces positive voltage on pin 3 with respect to pin 1
Cable	1.3 m (50 in.)
Connector	TA4F
Net Weight	25 g (0.88 oz.)
