TP-Link TL-WPA4220KIT 300Mbps AV600 Wi-Fi Powerline Extender Starter Kit 600Mbps HomePlug AV 300Mbps Wireless 2x100Mbps LAN 2.4GHz 802.11bgn 300m range

Features:

One Touch Super Range Extension - Wi-Fi Clone Button simplifies your Wi-Fi configuration and helps build a seamless unified home network
HomePlug AV standard providing up to 600Mbps1 high speed data transmission over a home’s existing electrical wiring, ideal for lag-free HD or 3D video streaming and online gaming
Extend 300Mbps wireless connections to previously hard-to-reach areas of your home and office

HARDWARE FEATURES

• Plug Type AU
• Standards and Protocols HomePlug AV, IEEE802.3, IEEE802.3u, IEEE802.11b/g/n
• Interface 2*10/100Mbps Ethernet Port
• Button Pair, Reset, Wi-Fi/Wi-Fi Clone
• Power Consumption Maximum: 7.608W (220V/50Hz)
• Typical: 7.216W (220V/50Hz)
• Standby: 4.610W (220V/50Hz)
• LED Indicator PWR, PLC, ETH, Wi-Fi/Wi-Fi Clone
• Dimensions ( W x D x H ) TL-WPA4220: 2.1 x 1.6 x 3.7 in. (54 × 40 × 94 mm)
• TL-PA411: 2.0 × 1.1 × 2.6 in. (52 × 28.5 × 65 mm)
• Range 300 Meters over electrical circuit

WIRELESS FEATURES

• Frequency 2.4-2.4835GHz
• Signal Rate 11n: Up to 300Mbps(dynamic)
• 11g: Up to 54Mbps(dynamic)
• 11b: Up to 11Mbps(dynamic)
• Reception Sensitivity 270M: -68dBm@10% PER
• 130M: -68dBm@10% PER
• 108M: -68dBm@10% PER
• 54M: -68dBm@10% PER
• 11M: -85dBm@8% PER
• 6M: -88dBm@10% PER
• 1M: -90dBm@8% PER
• Wireless Security 64/128-bit WEP / WPA / WPA2,WPA-PSK / WPA2-PSK
• Advanced Functions Enable/DisableWireless Radio,WMM, Wireless Statistics
• Transmission Power CE:<20dBm(2.4GHz)
• FCC:<30dBm

SOFTWARE

• Modulation Technology OFDM (PLC)
• Encryption Powerline Security:
• 128-bit AES
• Wireless Security:

WEP, WPA/WPA2, WPA-PSK/WPA2-PSK Encryption

OTHERS

• Certification CE, RoHS

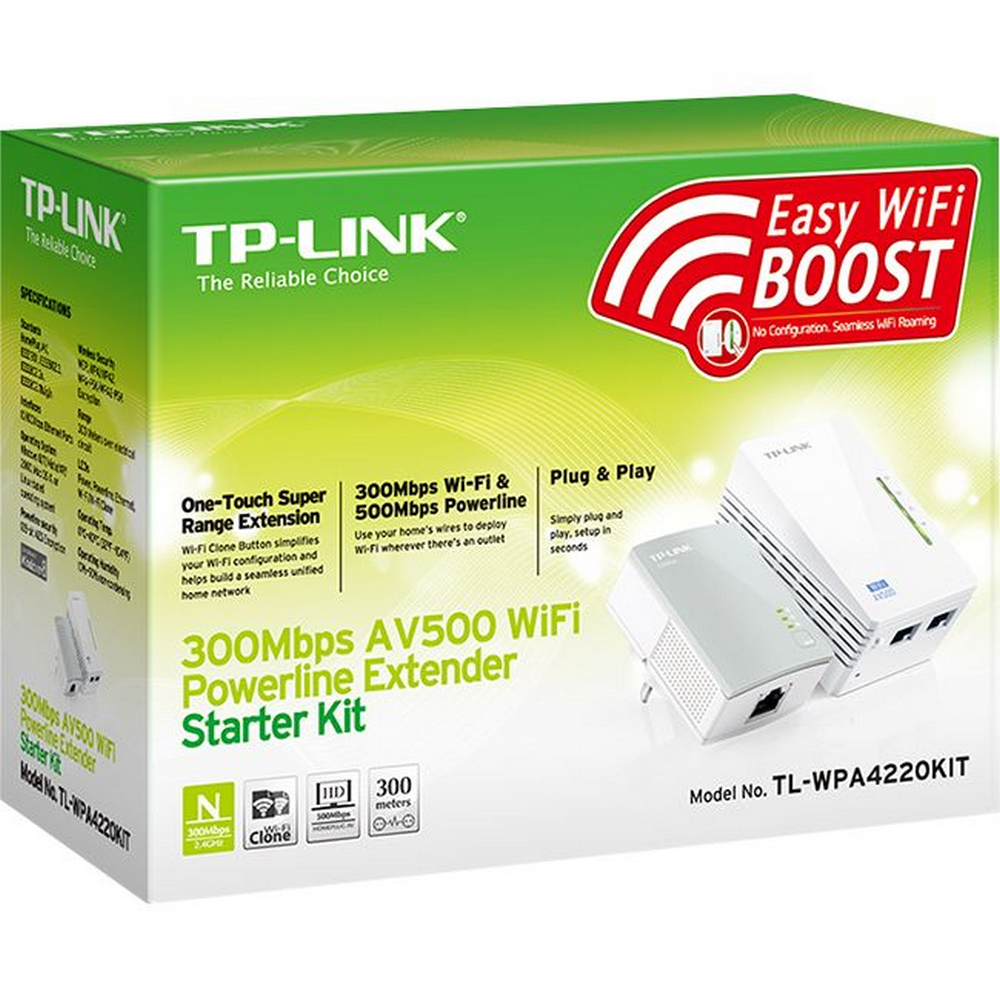

Package Contents Package Contents:

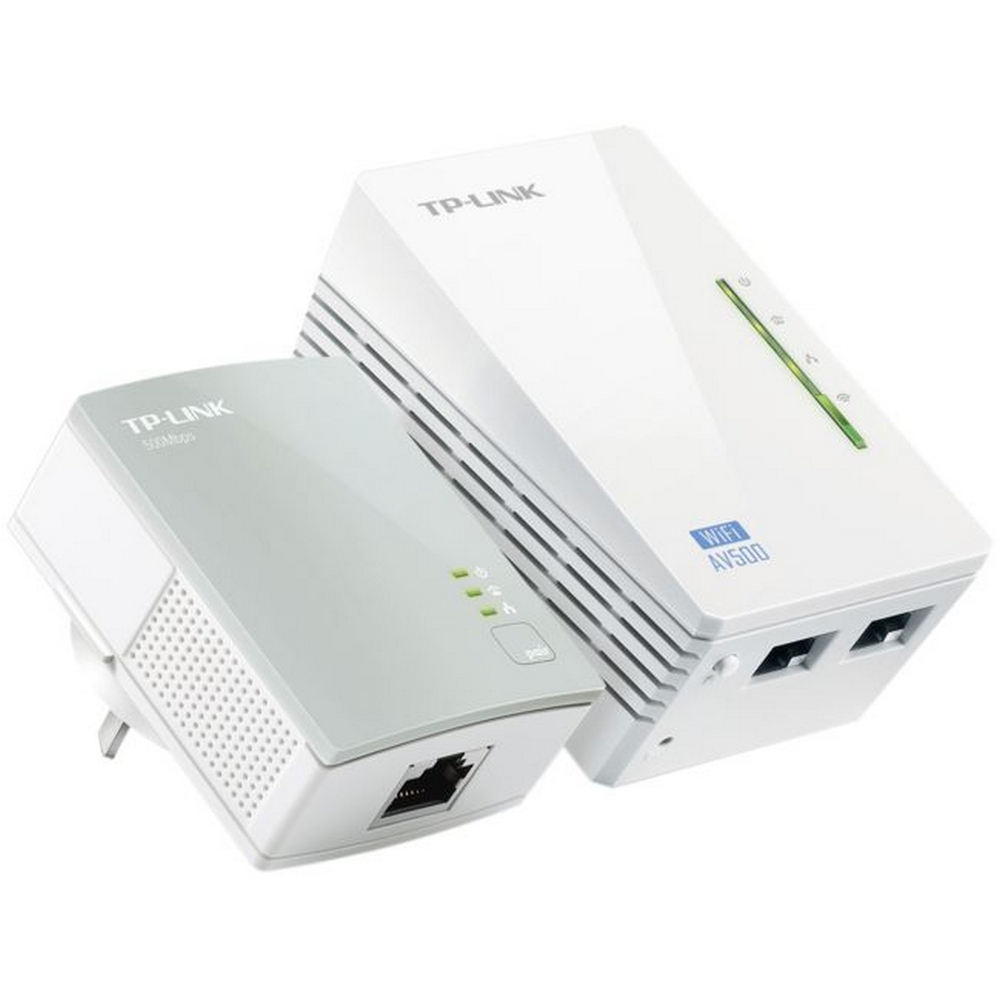

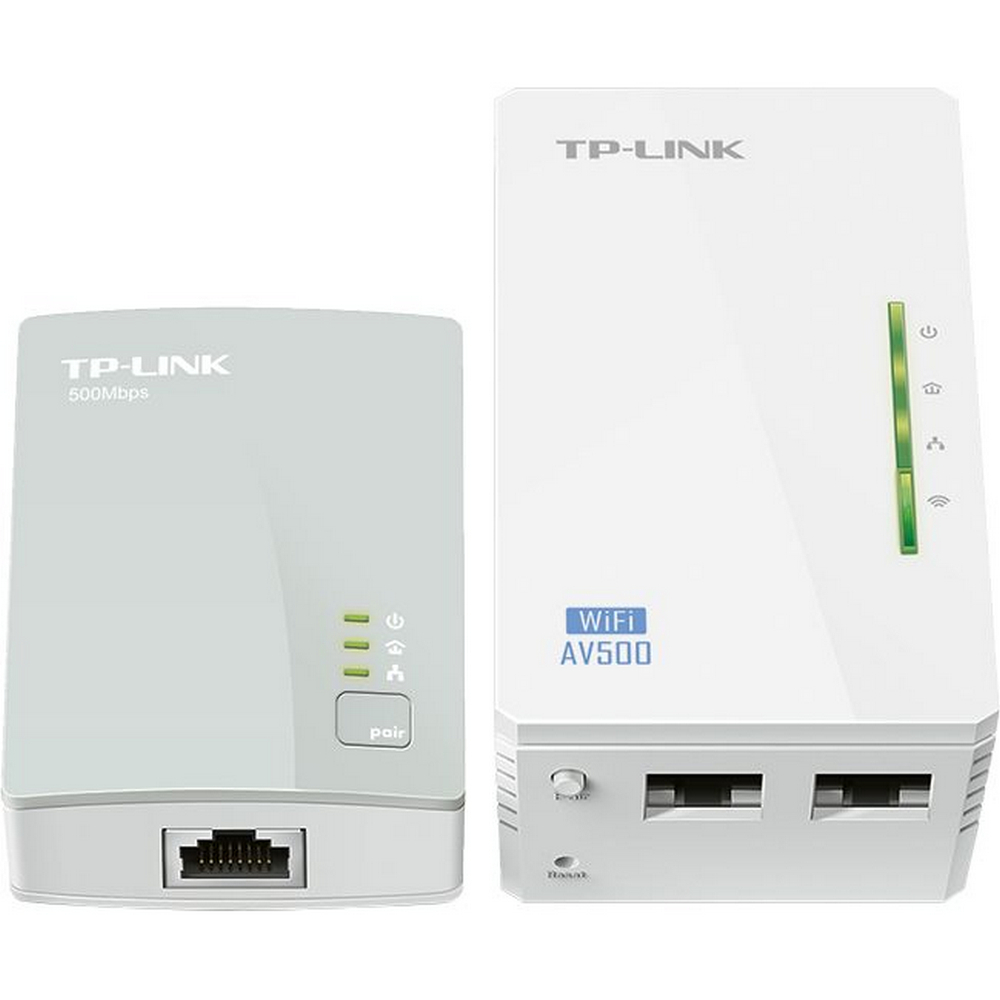

• AV600 Powerline Wi-Fi Kit: TL-WPA4220 & TL-PA411
• Ethernet Cable × 2
• Quick Installation Guide

Certification:

• CE, RoHS
• System Requirements Windows 2000/XP/2003/Vista, Windows 7/8, Mac, Linux
