ZYCAST Single Input HD Modulator

The replacement of the industry's most popular modulator,HD-1603, accepts a 4K signal and will loop-through that samesignal, however modulated signal is still limited to 1080P, due to the limitations with TV tuners.

We have been testing the new Q4K-R1 for months now, whilethe Q4K-R1 is not the first 4K modulator on the market, it'sthe first stable 4K modulator. Like the HD1603, the Q4K-R1 supports Resi-linx IR targets and emitters. Resi-linx are the market leader in both IR and modulation and the only brand to have Foxtel approved product in both fields.

This unit has full menu via LCD display, improved MER resulting in higher quality picture and is configurable for New Zealand. Q4K-R1 allows you to distribute any HD source around your home/business installation over coax cable and control with ease.

  • Most cost effective fully featured 4K HD modulator on the market
  • Single input digital modulator encoding HD video and stereo audio signals to MPEG-4 only(H.264) DVB-T COFDM TV channels
  • Compatible input resolutions 576i/720P/1080i& 1080P/UHD/4K for high definition picture quality (ensure TV tuner is MPEG4/H.264 and 4K HDCP2.2 compatible)

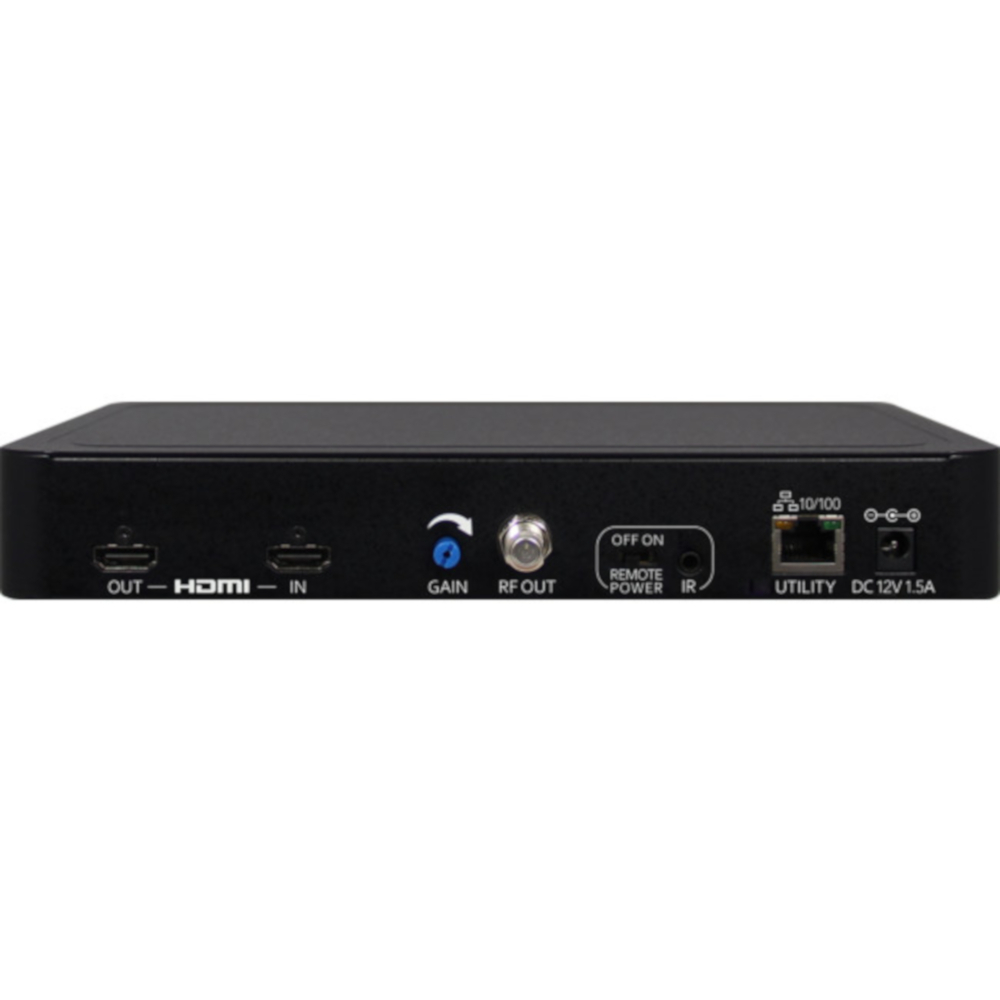

  • HDMI input-with HDMI loop through for local connectivity

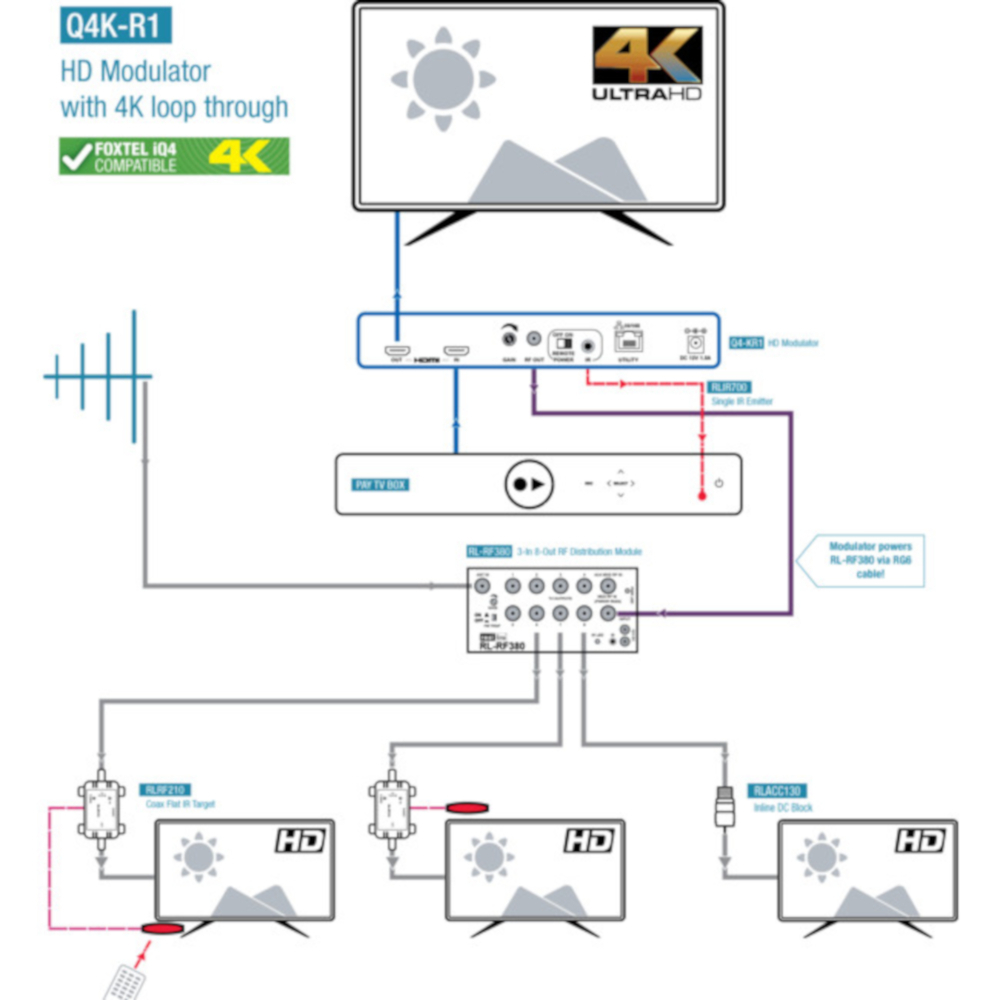

  • IR return path- compatible with resi-linx RL-RF380(video hub) and Rl-RF210(IR target)
  • Superior error rate (MER 39)

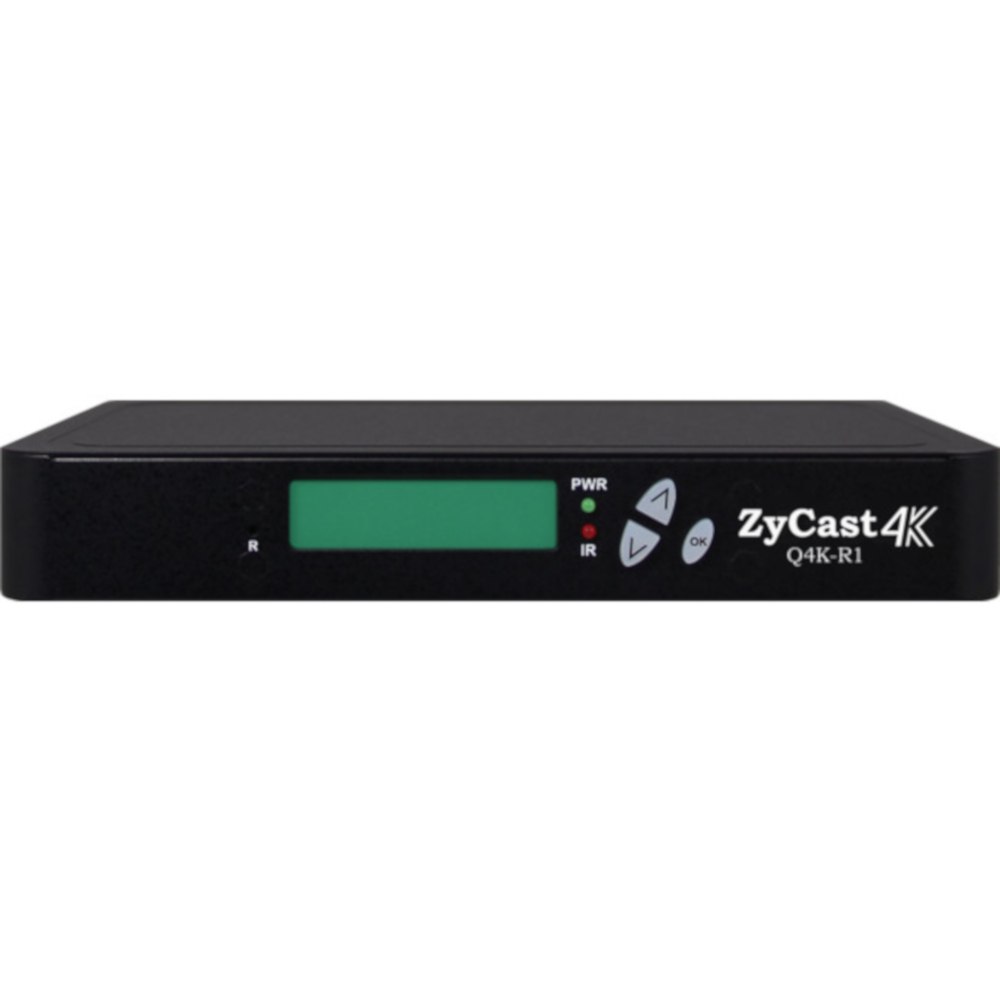

  • Full function front LCD display with menu driven configuration
  • New Zealand channel plan selectable
  • 2K/8K carriers
  • Adjustment of settings available via WEB GUI
  • Remote management with a PC
  • Adjustable VHF/UHF output (6-69)
  • 85dB launch with adjustable attenuation
  • Compact design
  • Silent operation-NO FAN NOISE!

{tab Specifications}

Video/ Audio Encoding Profile

Video

Resolution

1080p / 1080i / 720p

Video Codecs

H.264

Audio

Audio Codecs

MPEG1 Layer II MPEG4 AAC

General

Local Monitoring

LCD

IR Emitter

Single

Web GUI Supported

Firefox, Chrome, Safari

Password Protected

GUI:User Settable

Power Supply

12VDC 1.5A

Consumption

6.5 Watts

Operation Temperature

0c to +45c

Storage Temperature

-20c to +70c

Dimension

236mm x 145mm x 34mm

Weight

TBD

Language

English



Video / Audio Input

HDMI 2.0

Connectors

Dual (One for Input ; One for Loop-through)

Audio

Embedded PCM

HDCP Compliance

1.4 and 2.2

Resolution

4k / UHD / 1080p / 1080i / 720p

Output

QAM

Standard

DVB-T

Connector

1x "F" Female

Frequency Range

177.5MHz to 816.5MHz (Ch6-Ch69)



Output Level

85 dBµV Typical

(With 20dB Range Manually Adjustable)

Flatness Across Full

± 2 dB

MER

39 dB Typical

Carrier (OFDM Mode)

2K / 8K

Guard Intervals

1/32

Code Rate (FEC)

7/8

Modulation

64-QAM

Output Impedance

75 ohm

RF Output Return Loss

10 dB Typical

LCN

Embedded, Varies by Country Regulations

{tab FAQ}

I've connected the modulator to the system and lost myfree to air (FTA) TV reception. What should I do?
The difference in FTA signal and the Modulator output can have a detrimental effect on your FTA reception. You canattenuate the signal using the blue and white dial at the back of the modulator. In rare cases, this may not fully fixthe issue. In this case, we can send you (free of charge) anattenuator that screws on to the RF output of the modulator.If you would like to know more, feel free to call digi-MOD 0448.100.429.

{/tabs}

(Q4KR1)

12months

SKU Q4KR1
Model # Q4K-R1
Barcode # 9328202031389
Brand ZYCAST
Unit Of Measure 1
Assembled Width 1.291m
