SK9000B HD SAT AND FTA HD METER - SATKING

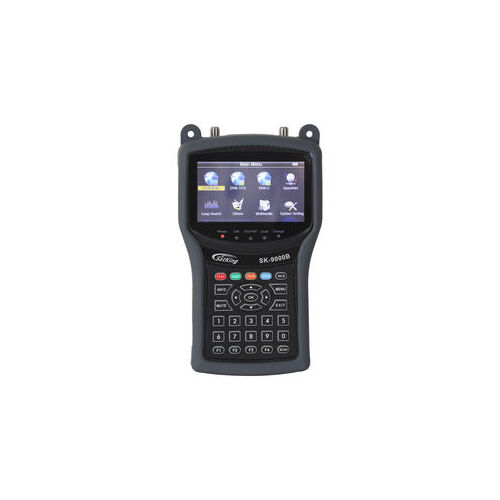

The SatKing SK-9000B is a High Definition combination meter for both terrestrial and satellite TV meter. The meterhas all main technical readouts as well as MER, MER is required by the Australian government.

This meter will display all digital channels and it will also display live colour picture and sound just like a compact TV. The unit is also perfect for CCTV alignment as it has AV input (cable supplied) and 12v power output to power your camera.

Features

4.3" colour LCD screen
Built-in speaker
High Definition
MPEG2/4 Compliant
MER,BER,C/N,dB Microvolts
3000mAH Lithium ION battery
HDMI output
AV Input for aligning security cameras
AV output
12V Power output for power CCTV cameras (there is a limit to the current output)
Can be used as a compact TV if you add a TV Antenna
Antenna power for powering mast head Amps
Backlit menu buttons
Built-in torch
Multimedia functions via the built in USB port

Specifications

Tuner DVB-T:

Frequency Range: 177.50-862.00 MHz
Signal Input Range: 30-110 dBuV
Impedance: 75 Ohm
Demodulation: QPSK, 16, 64, 128, 250 QAM
Modulation: COFDM
Bandwidth: 7,8 MHz
Subcarrier: 2, 4, 8k
Guard Interval: 1/4, 1/8, 1/16, 1/32

Tuner DVB-S:

Frequency Range: 950-2150 MHz
Signal Input Range: -65~25 dbm
Impedance: 75 Ohm
Demodulation: QPSK, 8PSK
Symbol rate: 2-45,000

Power:

Battery: 8.4V 3000mAH Lithium Ion
Consumption: 10W Max
Meter Input: 12V 1.5amp (2.1mm DC Jack)
Charger Input: 100-240V AC 50-60Hz
CCTV Power Output: 12V 100mA (Selectable on/off)
Antenna Power Output: 5V (Max. 200mA), 12V (Max. 100mA),17V (Max. 200mA) Selectable

Physical:
