THOR D1/45B SMART FILTER 7

SMART TECHNOLOGY POWER PROTECTION AND FILTRATION

Clever protection for smart technology

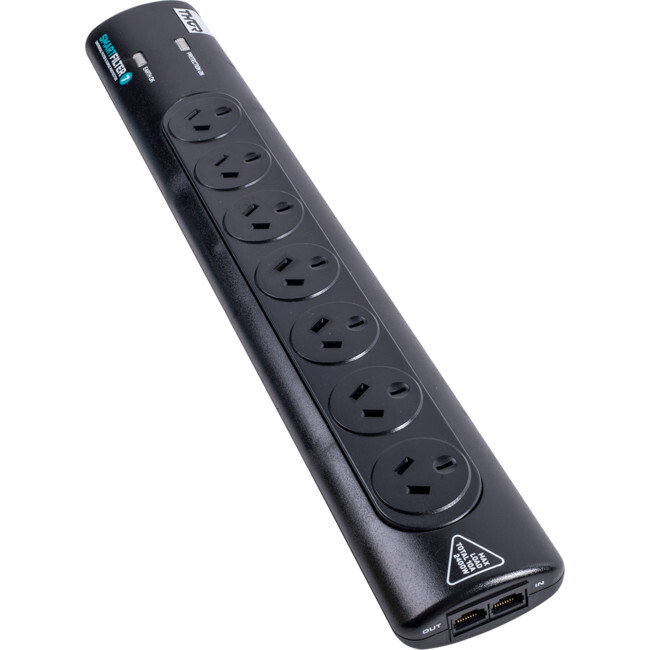

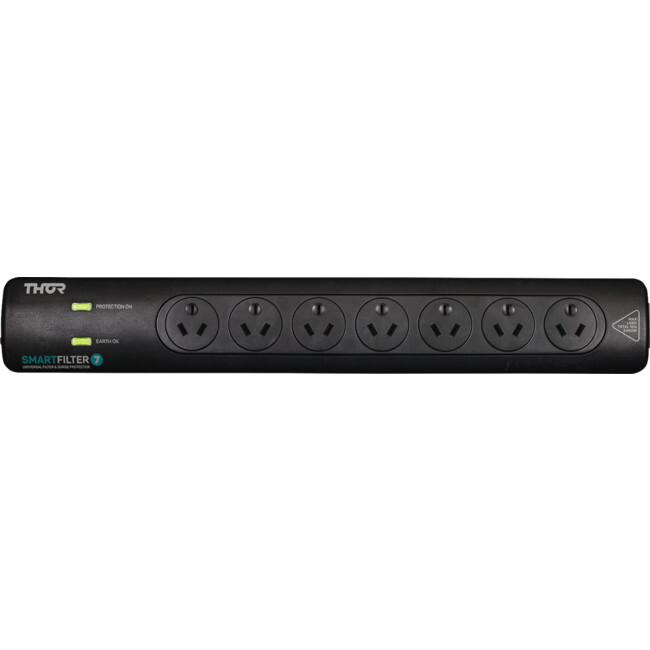

SmartFilter 7 is a popular board because of its slimline profile.

The SmartBrain passive filter adds to the industry leading protection capability offering an all roundsolution.

sb-smartfilterduo Smart Brain

The Thor SmartBrain not only protects from surges, it also filters and cleans electrical frequency noise to give you unbeatabe sound and video quality.

Improves performance in all types of computers too.



Key Features

  • 4588 Joules Power protection
  • High EMI / RFI noise filtration
  • 1 Nano second reaction speed
  • Up to $100K connected equipment warranty
  • 7 PROTECTED OUTLETS
  • DATA/VOICE PROTECTION
  • 1.2M CABLE LENGTH
  • FIRE RETARDANT
  • 6 YEAR REPLACEMENT WARRANTY

Protects

  • OLED/LCD TV
  • HIFI AND HOME THEATRE
  • ACTIVE / PASSIVE SPEAKERS
  • COMPUTERS
  • PRINTERS & SCANNERS



TECHNICAL SMARTS

  • Product Dimensions: 470mm(L) x 33mm(H) x 75mm(W)
  • Supply voltage 240/V AC 50/Hz
  • Maximum current rating 10amps/2400 W (VA)
  • Clamping voltage 275 V AC
  • Reaction time less than 1 nanosecond
  • Maximum transient spike impulse current 156,000 amps(equivalent to 39,000 amps using UL1449 standard)
  • Maximum energy dissipation 4588 Joules (equivalent to 1550 Joules using UL1449 standard)
  • Protection modes (all 7 outlets protects on all 3 conductors): Active/Neutral, Active/Earth, Neutral/Earth)
  • EMI/RFI noise reduction filter type
  • Total number of protected AC outlets: 7

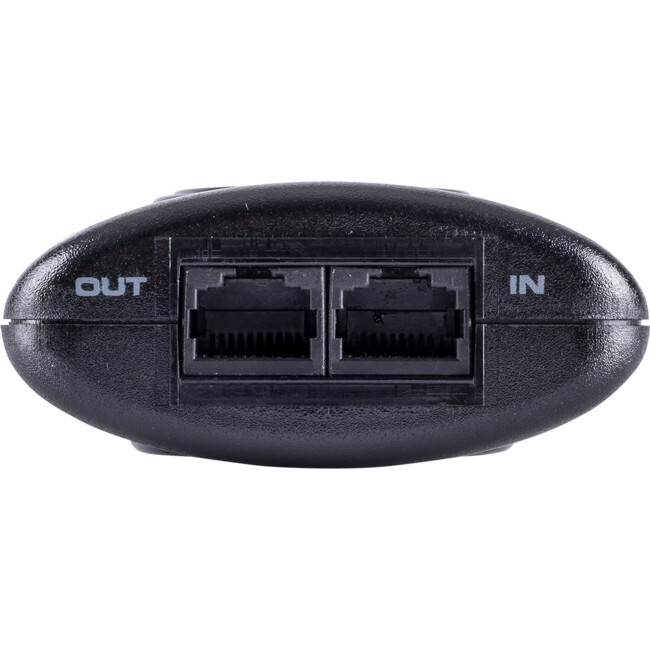

  • RJ 45 data protection: 1 in and 1 out
  • Earth potential rise protection
  • Earth leakage range less than 1 milli amp
  • Operating temperatures: -10C/+60C
  • Cable length: 1.2m
  • Model No: D1/45B



INSIDE THE BRAIN

SmartBrain entry level filter is a passive technology.

Managing to cover a more comprehensive range of shielding to like competitors by “cleaning” a wider range of unwanted frequency noise.

The filter works both ways.

Stopping noise from robbing equipment performance as well as connected devices’ noise contaminating power.















(D145B)

SKU D145B
Model # D1/45B
Brand THOR
Assembled Width 0.800m
