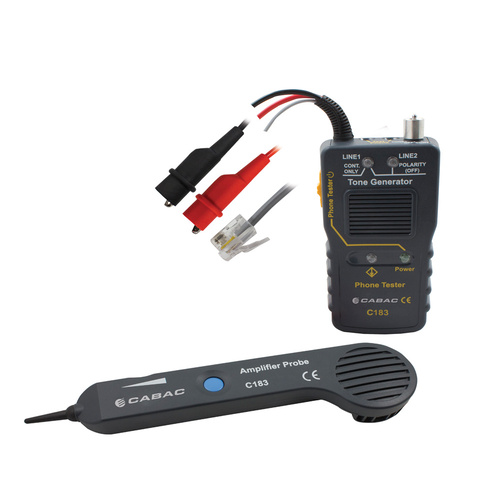

The Data Cable Tracer consists of a receiver probe and tester/generator module and can trace cables, test continuity and phone lines and more.

The Data Cable Tracer is supplied in a gift box with operating manual, soft carry bag, batteries and test leads.

Features



Data Cable Tracer

  • Probe picks up any tone generator with a pickup distance < 50cm
  • Tone generator and transmitter/tester in kit
  • Many test options for phone lines
  • Continuity and polarity

Probe:

  • Pick up any tone generator
  • Battery life -100 hrs
  • Headset jack in probe
  • Sensitivity control
  • Operating Frequency 1Hz to 12kHz
  • Pickup distance < 50cm

Tester:

  • Audible & visual indications
  • Continuity and polarity
  • Tone select - fast or slow
  • Polarity of phone line
  • Resistance of voltage free components
  • Test capacitors
  • Test transistors
  • ON/OFF switch for TEST=PHONE functions
  • Tone - square wave 1kHz - 15%
  • Tone generator over voltage - 80 VDC
  • Phone tester: 1.U Test < 4.75 V 2.I Test < 2 mA 3. Resistance - 0 - 2 M+«

NOTE: Not to be used on live circuits unless telephone/communications cable. Max. 110V.

(C183)

SKU C183
Model # C183
Barcode # 9318674929901
Brand CABAC
